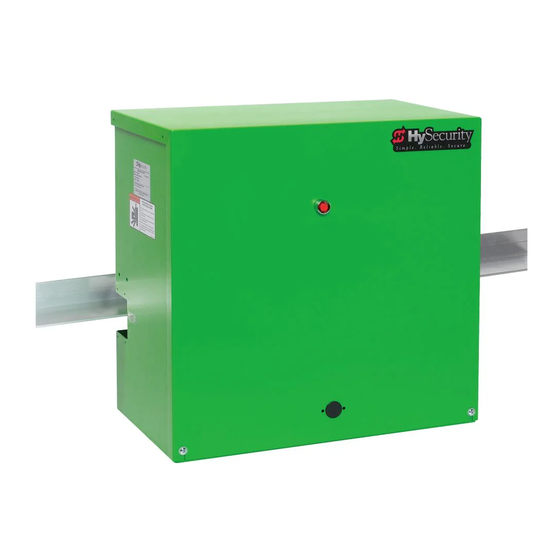

HySecurity SlideDriver II Series Quick Start Manual

HySecurity SlideDriver II Series Quick Start Manual

Slide gate operator

Advertisement

Quick Links

SlideDriver
II
SlideDriver II 15
SlideDriver II 40
SlideDriver II 50F
SlideDriver II 80V
SlideDriver II 200V
Slide gate operator
EN - Quick start guide
www.SecureOpeners.com | (800) 878-7829 | Sales@SecureOpeners.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SlideDriver II Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HySecurity SlideDriver II Series

  • Page 1 SlideDriver ™ SlideDriver II 15 SlideDriver II 40 SlideDriver II 50F SlideDriver II 80V SlideDriver II 200V Slide gate operator EN - Quick start guide www.SecureOpeners.com | (800) 878-7829 | Sales@SecureOpeners.com...
  • Page 2: Table Of Contents

    (XtremeDrive only) Rack kit Controller Inputs ........19 For Installation manuals, replacement part instructions, part diagrams and more visit support.hysecurity.com. The Digital Installation Manual is available in digital form PLAN SITE DESIGN at the link above and physical copies from distributors.
  • Page 3: Prepare An Installation Site

    PREPARE AN INSTALLATION SITE Minimum conduit required No. Min. Size Addt’l conduit may be needed for: Min. Size AC Main power (incoming) 1 in (25 mm) DC cables 2 in (50 mm) Low voltage accessory wires 3/4 in (20 mm) Hydraulic hoses 2 in (50 mm) Ground...
  • Page 4 PREPARE AN INSTALLATION SITE CLEARANCES SlideDriver: Cabinet (Modular): Cabinet (DC / UPS): Side Access: Min. 24 in (0.6 m) Front Access: Min. 36 in (0.9 m) Door Swing: Min. 30 in (0.8 m) Front Access: Allow 30 in (0.8 m) Rear Access: Allow 24 in (0.6 m) Rear Access: Allow 24 in (0.6 m) NOTICE...
  • Page 5 PREPARE AN INSTALLATION SITE MARK THE ANCHOR BOLT LOCATIONS After you remove the operator, cut out the anchor bolt template on the side of the SlideDriver II box. Gate Use the template to mark the location of the anchor bolts that will secure the Side -Puerta SlideDriver II to the concrete pad.
  • Page 6 PREPARE AN INSTALLATION SITE EDGE SENSOR INSTALLATION 1. Attach channel segements to gate draw-in post. 4. Connect edge sensor wires to conduit wires. Use a junction box to protect the splice. 2. Install one screw in the bottom channel segment. 5.
  • Page 7: Install The Chassis

    INSTALL THE OPERATOR INSTALL THE CHASSIS HYDRAULIC HOSE SWAP WARNING Obtain help before lifting or moving the operator. SlideDriver II models can weigh over 260 lbs (118 kg). Failure to comply may result in serious injury to personnel, damage to the equipment, or both. 1.
  • Page 8 INSTALL THE OPERATOR INSTALL THE EARTH GROUND DANGER The potential for lightning discharge exists with all gates, fences, and gate operators. National Electric Code (NEC) - Article 250 requires a separate earth ground in addition to the required equipment ground. Ga. 6 minimum. The gate operator must be grounded per NEC, NFPA 780 and local building standards and codes.
  • Page 9: Power Connections

    WIRING AC POWER DANGER WARNING Turn off AC power at the source (circuit breaker panel) Each gate operator is built to run on a specific line before accessing the wires in the gate operator. power voltage and phase. Failure to ensure that Follow facility Lock Out/Tag Out procedures.
  • Page 10: Assemble, Align, And Install Drive Rail

    7. Drill holes through the vertical drive rail flange and install U bolts along the upright support structure, as needed. HySecurity recommends that you attach a minimum of 3 supports per length of drive rail. Keep drive rail spans straight and level. Distance between attachment points should be less than 10 ft (3 m).
  • Page 11 ASSEMBLE, ALIGN, AND INSTALL DRIVE RAIL Standard grooved drive rail Figure 2. Assemble Drive Rail Clamped Handle Use wire to secure the Position toggle handle so the clamp remains open and the drive wheel does not fall closed. When clamped on the drive Unclamped rail, the red spring should be compressed to a height of...
  • Page 12 ASSEMBLE, ALIGN, AND INSTALL DRIVE RAIL Gate face Use shims as needed. Note: The best materials to use for shims are corrosion resistant materials, such as aluminum or heavy- duty plastic. Align top of rail with label and Gate notch on the Structure SlideDriver II chassis.
  • Page 13: Install And Secure Limits

    INSTALL AND SECURE LIMITS CAUTION NOTICE Make sure power is disconnected and power switch Limit Flag Handing (All SlideDriver II Models) is set to OFF while installing the limit flags and limit When facing the operator from the secure side of the sensor.
  • Page 14 INSTALL AND SECURE LIMITS Pan or flat Approx. 7/8 in head screw (22 mm) Limit Dual limit sensor sensor Center of bracket limit track Square Figure 10. Install Limit Flag 4 in (101 mm) Figure 7. Set Dual Limit Sensor Height 3 in (76 mm) Mark rail directly above center of...
  • Page 15 Controller. are clamped on 7. Set operator power to OFF, move gate to open HySecurity drive rail. position, and clamp the toggle handle. 8. Set operator power to ON. Figure 13. Toggle Handle Assembly Note: For SlideDriver II models with brake valves, make sure that the brake valves are adjusted properly to ensure that the gate stops smoothly at the limits.
  • Page 16: Connect To The Smart Installer App

    9. Press the UP or DOWN arrow to select 1 (ON) and press SELECT. Figure 15. Bluetooth Switch 10. Press the UP or DOWN arrow to show HYSECURITY GATE PIN and GATE NAME. Record the PIN and GATE NAME. HYSECURITY H.6.06...
  • Page 17: Operator Configurations

    OPERATOR CONFIGURATIONS SlideDriver II 15, 40 (OT 1) SlideDriver II 50F, 80V, 200V (OT 7) OPERATOR OPERATOR CONFIGURATIONS CONFIGURATIONS † † USAGE CLASS 0 (GATE DISABLED) USAGE CLASS 0 (GATE DISABLED) 3 (INDUSTRIAL) 1 (RESIDENTIAL) 4 (HIGH-SECURITY) 2 (PUBLIC) 3 (INDUSTRIAL) 4 (HIGH-SECURITY) †...
  • Page 18 OPERATOR CONFIGURATIONS Table 4. SmartTouch 720/725 Operator Configurations Settings MENU DISPLAY SETTINGS DESCRIPTION USAGE CLASS 0 = Gate disabled Assign the operator’s Usage Class designation per UL † 1 = Residential 1 to 4 units 325 standards. The installer must designate a usage class 2 = Comm./public access before the operator will function.
  • Page 19: Controller Inputs

    CONTROLLER INPUTS SmartTouch 720/725 Controller Input Examples Only Hy5B Vehicle Detectors Radio Receiver Photo Eye Radio Photo eyes may be connected to SENSOR 1 & 2 and INPUT 1 & 2. Edge Sensor Photo Eye NICE BlueBUS Photo Eyes Wake Display www.SecureOpeners.com | (800) 878-7829 | Sales@SecureOpeners.com...
  • Page 20 www.SecureOpeners.com | (800) 878-7829 | Sales@SecureOpeners.com...
