HySecurity SlideSmart DC Technical Instructions page 4

Wire Harnesses to Power Components
13. Connect the two spade red wires of Solar Harness to two top tabs of AC power switch and route black wire
out of junction box through input conduit (FIG-5A). AC switch now functions as Solar switch.
14. Connect 11" wire MX001890 to upper tab of 15A breaker and route red wire down and out of upper junction
box through conduit hole into the lower junction box (see FIG-5B).
15. Connect 2-to-1 harness (MX001891) between lower two tabs of power switch & lower tab of 15A breaker
(FIG-5).
NOTICE
The following images show the unit with Auxilliary AC Outlet and
AC Power Board removed (see Step 10), but these components
may be left in place (i.e. for later reconversion back to AC power).

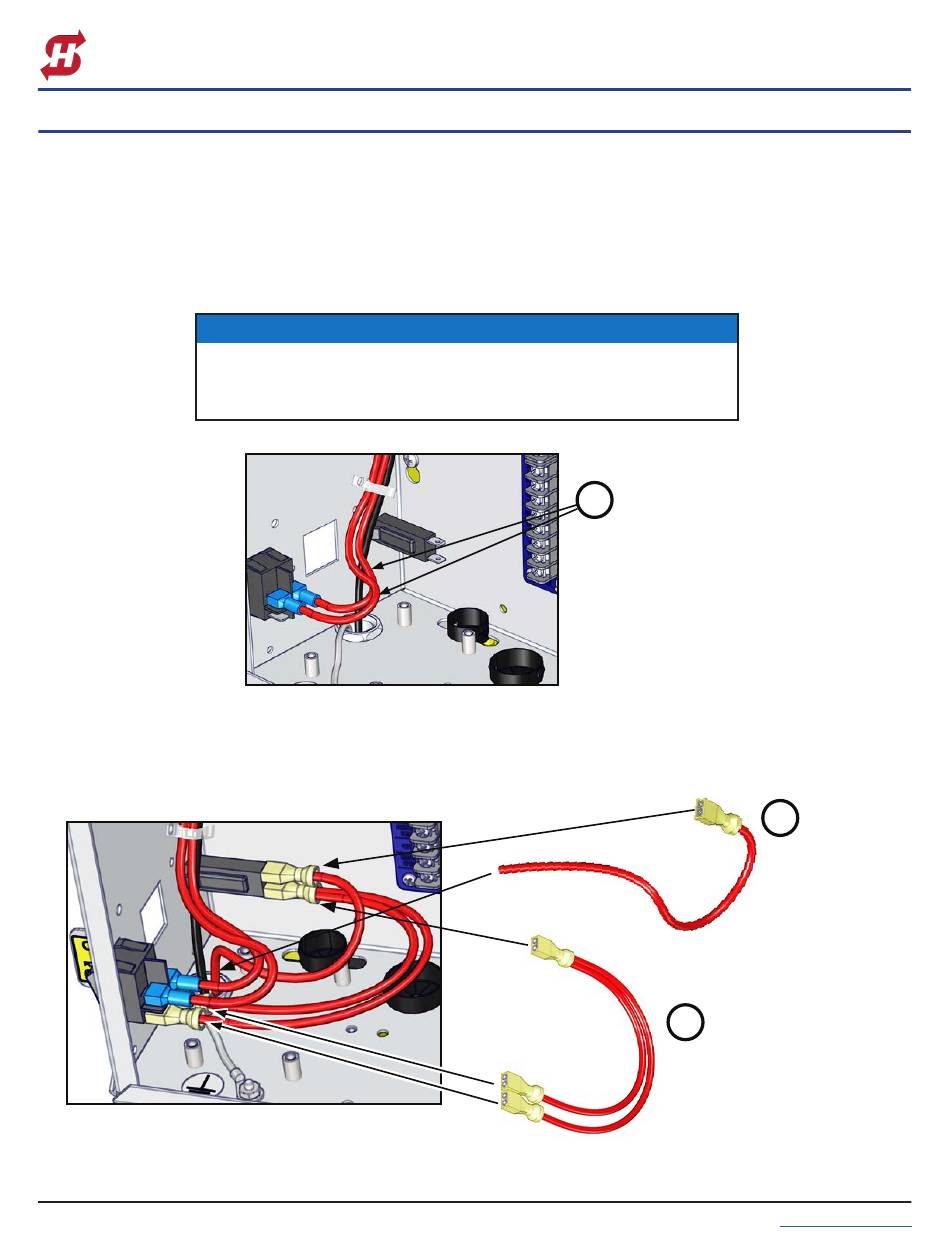

FIG-5B: Installing Other Harnesses to Power Components
4
D1131 Rev. B ©2022
Technical Instructions
FIG-5A: Installing Solar Harness to Power Switch
Instructions: Converting SlideSmartDC from AC to Solar Power
13
Plug red wires of Solar Harness
into two upper tabs of Power
Switch. Route Black wire down
and out through Junction Box inlet
into lower junction box.
Plug into upper tab of circuit breaker.
Plug into lower tab
of circuit breaker.
15
2-to-1 Harness
(MX001891)
Plug into lower two
tabs of power switch.
14
11" Wire/Spade
(MX001890)
Route red 11"
wire down and out
though Junction
Box inlet.
support.hysecurity.com
