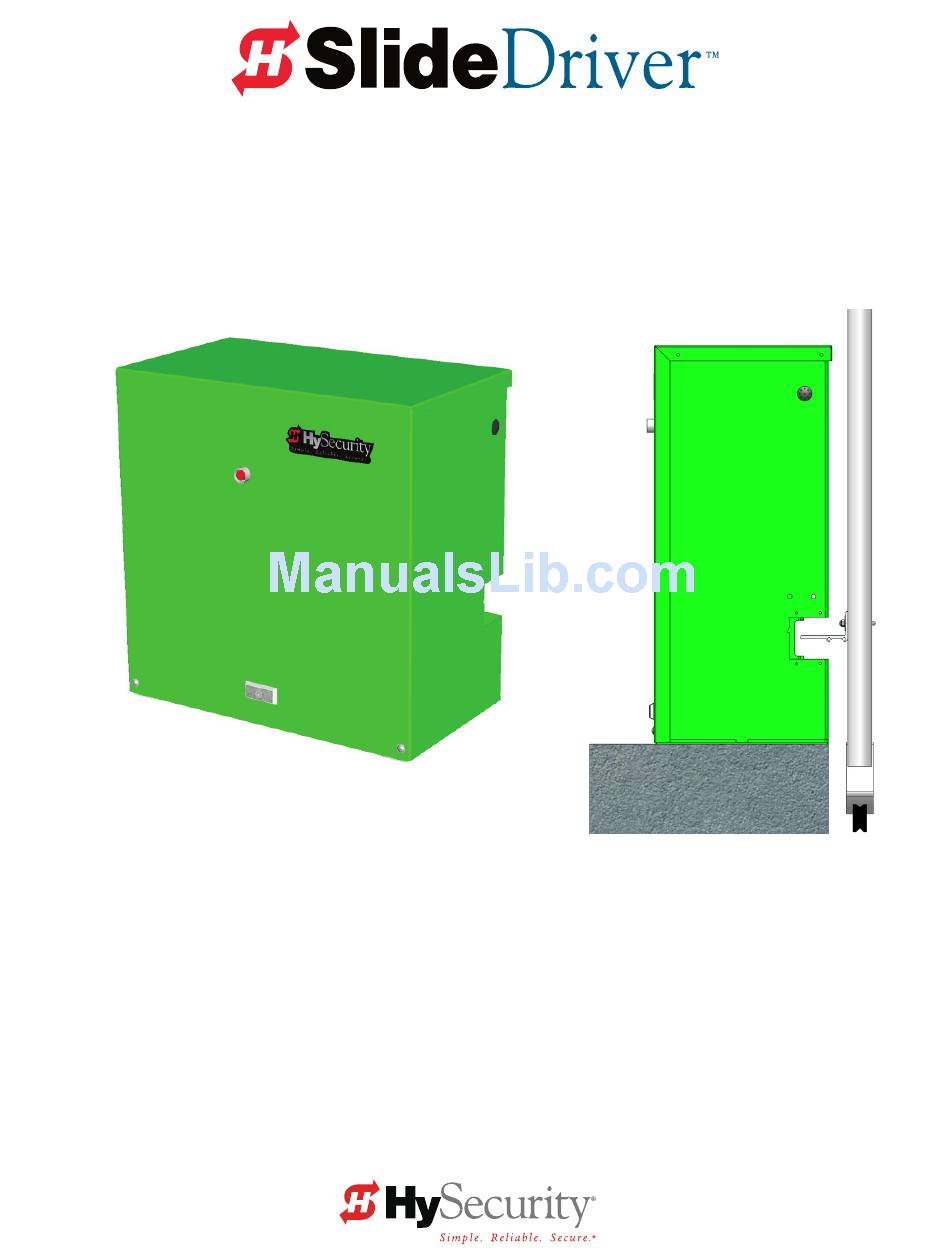

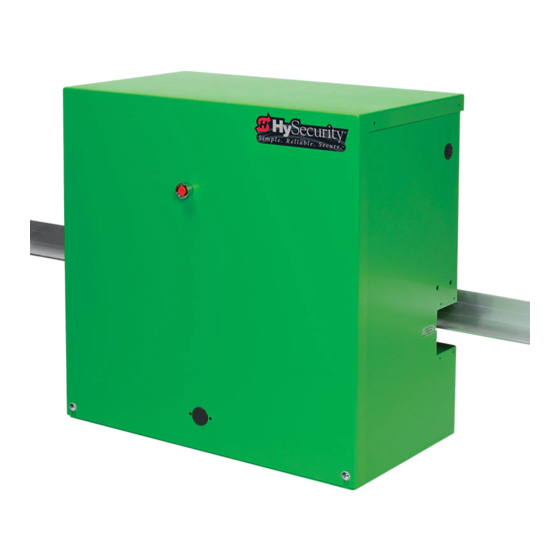

SlideDriver 15, 30F, 40, 50VF 2/3, 80, 200
Programming & Operations Manual
with
HySecurity Smart Touch Controller
This document provides Important Safety Information, specifications, and references along with
an overview of programming user and installer menu options, designing vehicle loop layouts,
troubleshooting, and maintaining the gate operator.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SlideDriver 15 and is the answer not in the manual?

Questions and answers

Related Manuals for HySecurity SlideDriver 15

Summary of Contents for HySecurity SlideDriver 15

  • Page 1 SlideDriver 15, 30F, 40, 50VF 2/3, 80, 200 Programming & Operations Manual with HySecurity Smart Touch Controller This document provides Important Safety Information, specifications, and references along with an overview of programming user and installer menu options, designing vehicle loop layouts,...
  • Page 2 *NOTE: using XtremeDrive wheels, adjust ™ 43¼" (109.5cm) height along the length of the Drive Rail by ¼ to ½ inch which increases overall height between 9¾ and 10 inches (24 to 25 cm). D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...
  • Page 3 Reset Button, External Drive Arm, Pivot Kit Chassis AdvanceDrive™ Wheel Kit Cover not shown Drive Arm, Motor Mount, Top Drive Arm, Motor Mount, Bottom Hose Limit Switches Release, Manual Motor, Hydraulic Combination AdvanceDrive and XtremeDrive Wheels www.hysecurity.com Introduction D0559 Rev. A...
  • Page 4 Sensor Kit, Inherent Entrapment Vent plug Valve Coil, Quick Stop Valve, Quick Stop Valve, Braking Breather cap Valve, Check, Endhead Braking Kit Gauge, Pressure AWOG Valve, 2 Position Directional Valve Coil, Directional Quick Disconnect, Socket Reservoir D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 5: Table Of Contents

    SlideDriver 50VF-series Wiring Chart (Incoming Power) .....................19 Performance of 50VF-series Operators on 1 and 3 Phase, 50 or 60Hz...............19 Control Transformer Connections (Non-UPS) .......................21 Gate Operator Connections (Modular Unit) ........................21 DC Power Supply (UPS) Connections ..........................22 www.hysecurity.com Table of Contents D0559 Rev. A...
  • Page 6 Change the Display Contrast ............................38 Check Time and Date ..............................38 User Menu ..................................39 User Menu: Table 1 ................................39 Installer Menu ................................41 Installer Menu: Table 2 ..............................42 Setting the Close Timer ..............................47 Test the Operator ................................48 D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...
  • Page 7 Sequenced Gate: Configuration #2 ..........................71 ....................73 roubleSHooting System Diagnostic Messages ............................73 Troubleshooting Codes: Table 3 ..........................74 Electrical Issues ................................79 AC-Powered Gate Operators ............................79 Mechanical Issues ................................80 Hydraulic Issues ................................80 Typical Problems and Troubleshooting Procedures .......................81 www.hysecurity.com Table of Contents D0559 Rev. A...
  • Page 8 Grooved Drive Rail ..............................88 Drive Wheel Assembly ..............................89 Hydraulic System Maintenance ............................90 Brake Valve Adjustments ............................91 Pressure Relief Valve Adjustments ..........................91 Open Valve .................................91 SlideDriver Operator Maintenance Schedule ........................92 SlideDriver Installer Checklist ............................93 Specifications .................................96 viii D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 9: Welcome To Hysecurity

    Welcome to HySecurity Thank you for purchasing our premium SlideDriver™ gate operator. HySecurity Gate, Inc. has manufactured some of the finest, sturdiest, most innovative, and reliable hydraulic gate operators since the 1970s. We use the same hydraulic technology common in the aircraft industry while incorporating software capabilities that far exceed the competition.

  • Page 10: Contact Information

    Qualified HySecurity distributors are experienced and trained to assist in resolving any problems. For the name of a qualified distributor near you, call HySecurity at 800-321-9947. Before contacting your distributor or HySecurity Technical Support, obtain the serial number of your operator.

  • Page 11: Important Safety Information

    HySecurity product manuals. It is important that only qualified installers handle the installation of the HySecurity equipment and gate operator. A “qualified” installer has one of the following: •...

  • Page 12: Safety - Additional Installer Responsibility

    Š Physical stops must exist in the gate construction to prevent over-travel in both directions and, for slide gates, guard posts must be installed to prevent the gate from falling in the event of a roller failure. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...
  • Page 13 Stop button is located on the gate operator.) NOTE: Gate operator instructions must be given to the owner per UL 325 Safety Standards. Š Take photographs of the completed installation site and save it in your business files. www.hysecurity.com Safety D0559 Rev. A...

  • Page 14: Safety - Owner/User Responsibility

    Be aware of the international, federal, and local codes in your area and how best to handle hazardous waste materials. The pump pack fluid, found in all hydraulic HySecurity operators, can be recycled. Gear oil, found in HySecurity electromechanical gate operators, can also be recycled. If the fluids are mixed or contaminated with any solvents or other chemicals, they become hazardous waste.

  • Page 15: Identifying Gate Operator Category And Usage Class

    Class IV: Intended for use in a guarded industrial location or building such as an airport security area or other restricted access locations, not servicing the general public, in which unauthorized access is prevented via supervision by security personnel. www.hysecurity.com Safety D0559 Rev. A...

  • Page 16: Choosing Secondary Entrapment Protection

    UL 325 in Class IV applications, but it is not recommended by HySecurity because a buzzer warns, but cannot protect against possible entrapment. HySecurity highly recommends, even for Class IV use, that secondary entrapment protection (edge or photo- eye sensor) devices be installed to detect possible entrapment.

  • Page 17: Grounding, Breather Cap Installation & Handing

    Operator is shipped hydraulically configured for “right hand” operation. Refer to “Gate Handing” on page 23. Swap hydraulic hoses for left handling. Grade level Cut-away view Consult local codes for proper depth Concrete foundation Ground rod www.hysecurity.com Safety D0559 Rev. A...

  • Page 18: Emergency Stop Button

    NOTE: For more information, refer to “Drive Wheel Spring Tension (Adjustment of Manual Release)” on page 87. Other types of release mechanisms exist. For example, the Fire and Emergency Access Lock Box is available through HySecurity distributors. Contact your distributor for more information. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 19: Slidedriver Slow Down Limit Ramps

    NOTE: For a 50VF-series SlideDriver, you will need to order four (4) Slow Down Limit Ramp Kits. CAUTION Be sure to securely fasten all limit ramps to the underside of the drive rail when installing a 50VF-series operator. SlideDriver 50VF Slow Down Limit Ramp Kit www.hysecurity.com Safety D0559 Rev. A...

  • Page 20: Safety Notices

    Obey all safety messages that follow these symbols to avoid possible injury or death. Attention - Danger - Entrapment Possible - Take Note - Keep Away Zone Pinch Point D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 21: Power

    Code (NEC) - Article 250 requires a separate earth ground in addition to the required equipment ground. HySecurity recommends grounding the operator with a separate earth ground rod (or a similar device in the case of crash products) to shield the operator against electromagnetism and other electrical signals that may cause, erratic operation with, or damage to, the Smart Touch Controller and other electrical parts.

  • Page 22: Site Considerations

    Site Considerations HySecurity gate operators are intended for permanent installation. Make sure you prepare the site with the following considerations: • Make sure all electrical wiring is properly routed via conduits. • Check the distance of the wiring run from the main panel to the gate operator. Make sure the wire size of the branch circuit supplying power to the gate operator is large enough to avoid excess voltage drop.

  • Page 23: Turning The Power Switch On

    STATUS PHOTO EYE CLOSE DIRECTION DO NOT USE Turning the Power Switch ON CHARGER AC LOSS HySecurity LOCK INTERLOCK MX000585 VERSION The AC power disconnect switch is located on the same enclosure EMERG CLOSE FIRE DEPT OPEN (control box) where the electrical components, Smart Touch Controller, transformer, power module, etc., are found.

  • Page 24: Wire Sizing And Runs

    7.0 miles (11 km) 20 ga 3.5 miles (5.6 km) 22 ga 2.7 miles (4.3 km) 24 ga 2.0 miles (3.2 km) 26 ga 1.0 mile (1.6 km) 28 ga 3700 feet (1.1 km) D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 25: Slidedriver Wiring Charts (Incoming Power)

    1400 (427m) 1120 (341m) 975 (297m) 515 (157m) 475 (145m) 260 (79m) 2220 (670m) 1915 (584m) 1550 (472m) 815 (248m) 750 (229m) 410 (125m) 3550 (1082m) 3080 (939m) 2465 (751m) 1305 (398m) 1200 (366m) 650 (198m) www.hysecurity.com Power D0559 Rev. A...
  • Page 26 5870 (1789m) 4650 (1417m) 2840 (866m) 2750 (838m) 1150 (350m) 11700 (3566m) 9350 (2850m) 7400 (2255m) 4550 (1387m) 4400 (1341m) 1800 (549m) 18500 (5639m) 14800 (4511m) 11700 (3566m) 7200 (2194m) 7000 (2134m) 2900 (884m) D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 27: Slidedriver 50Vf-Series Wiring Chart (Incoming Power)

    6990 (2130m) 8470 (2582m) Performance of 50VF-series Operators on 1 and 3 Phase, 50 or 60Hz A HySecurity 50VF2, 50VF-EFO, or 50VF3 operator can operate on a wide variety of incoming power. • 50Hz/60Hz operation with no changes or reconnection •...
  • Page 28 SlideDriver 50VF-series operators are NOT field reconfigurable between 208/230VAC and 480VAC power. The VFD Motor Controller in a 208/230VAC unit must be replaced with a VFD Motor Controller manufactured for the higher (480VAC) voltage input. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 29: Control Transformer Connections (Non-Ups)

    You need a 2-inch (5 cm) diameter conduit for hydraulic hoses and a ¾-inch (19 mm) conduit for electrical wiring. AC input power is connected to the hydraulic pump and electrical components enclosure (HydraSupply). A supplemental manual, provided with the product, describes the installation overview, wiring and conduit considerations. www.hysecurity.com Power D0559 Rev. A...

  • Page 30: Dc Power Supply (Ups) Connections

    DC Power Supply Cabinet. Conduit A supplemental manual (D0598), provided with the DC Power Supply Cabinet, describes the installation overview, wiring and conduit considerations. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 31: Configure The Operator

    The handing is determined by the position of the operator and which way the gate opens. To determine handing, face the front cover panel on the operator. Refer to the illustration below. OPEN OPEN Left-Hand Right-Hand Gate Gate www.hysecurity.com Configure the Operator D0559 Rev. A...

  • Page 32: Hydraulic Hose Swap

    NOTICE: Pressure relief valve adjustments establish the threshold for the inherent entrapment sensor (IES). The optimal pressure setting produces uniform gate travel and trips the IES when the gate encounters an obstruction. Model Motor hp Maximum PSI SlideDriver 15, 40 1 hp 1000 psi SlideDriver 30F, 80, 50VF 2 hp...
  • Page 33 Adjustment Screw Adjustment Screw The Pressure Relief SlideDriver 30F, 80, 200 SlideDriver 15, 40, 50VF Valve is located behind the motor on the pump rack or soft start manifold. Pressure Gauge Motor Pump pack Make sure the gate is properly installed and aligned before performing the following steps. Take precautionary measures to keep the gate’s travel path clear.

  • Page 34: The Inherent Entrapment Sensor (Ies)

    The IES on HySecurity hydraulic operators is a primary entrapment device that is required by UL 325 as a type “A” detection device. It is tripped through software programming OR hydraulic pressure settings. It does not function solely on its own accord and must be connected to the Smart Touch Controller. The sensitivity and response of the IES when tripped is factory set, but can be adjusted through the Installer Menu items: •...

  • Page 35: Inherent Entrapment Sensor - (Ies)

    In the 50VF series SlideDriver™, a communication protocol allows the Smart Touch Controller to constantly monitor the Variable Frequency Drive (VFD) and record events in the STC history log. The history log is easily accessible using the HySecurity S.T.A.R.T. program and a PC laptop computer.

  • Page 36: Emergency Fast Operate (Efo) In Slidedriver 50Vf-Series

    DO NOT USE STATUS PHOTO EYE CLOSE DIRECTION DO NOT USE Operator Close Speed EFO Close CHARGER AC LOSS HySecurity Power Module SlideDriver 50VF2 2.2 fps (26 in per sec) 3 fps (91 cm/s) LOCK INTERLOCK MX000585 VERSION EMERG CLOSE SlideDriver 50VF3...

  • Page 37: Control Panel Overview

    Reset Switch Provides inputs for peripherals and accessories, 2 electromechnical user relays (250VAC, 10A), one solid Power Switch state user relay (30VDC, 3A). For more information, refer to STC Terminal Inputs on page www.hysecurity.com Control Panel Overview D0559 Rev. A...

  • Page 38: Slidedriver Wiring Diagram, D0266 Rev B

    IrIng Iagram d0266 rev B BLUE 480 EXTERIOR ORANGE 240 RESET RED 208 WHITE 120 DUAL GATE D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 39: Variable Speed Drive (Vfd) Control Box

    (Non-UPS) on page 21. control handling. plate. CAUTION Residual voltage remains in the VFD which can cause electrical shock to personnel or damage to the equipment. www.hysecurity.com Control Panel Overview D0559 Rev. A...

  • Page 40: Variable Speed Drive Wiring Diagram

    RED TO B5 BLACK TO B7 PHOTO EYE OPEN DIRECTION DO NOT USE STATUS PHOTO EYE CLOSE DIRECTION DO NOT USE CHARGER AC LOSS HySecurity LOCK INTERLOCK MX000585 VERSION EMERG CLOSE FIRE DEPT OPEN RS232 Smart Touch Controller SERIAL LIMIT DUAL GATE...

  • Page 41: Stc Board, Power Module And Display

    & errors. DO NOT USE Refer to Display & Menu Options on page 35. STATUS PHOTO EYE CLOSE DIRECTION DO NOT USE CHARGER AC LOSS HySecurity LOCK INTERLOCK MX000585 VERSION EMERG CLOSE FIRE DEPT OPEN Smart Touch Controller LIMIT DUAL GATE...
  • Page 42 D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 43: Display & Menu Options

    NOTE: Use a laptop computer at your place of business to conveniently download the free START software and most current software version from www.hysecurity.com before heading out into the field. This makes it easy to adjust settings using a laptop.

  • Page 44: Menu Mode And The Stc Keypad

    Press Next or Previous. Press Select. Press Next or Previous. Press Select. Continue pressing Next to view Blinking characters Advance - press Next Two left characters blink. all selections. become static. Previous - press Previous D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 45: Run Mode And The Stc Keypad

    Installer menus, begins at one of these Run Mode displays. Pressing Reset clears alerts or faults and 32-character display returns to Run Mode. identifies operator NOTE: Press Reset at modes. HYSECURITY HYSECURITY HYSECURITY any Run mode status GATE OPEN GATE CLOSED GATE STOPPED display to view the software version.

  • Page 46: Stop The Status Display Scrolling

    The date appears DD/MM, and then the time HH:MM. 2. If you need to change the time zone, refer to the Set Clock “CL” item in the User Menu. Refer to User Menu: Table 1 on page 39. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 47: User Menu

    Open 0 = Momentary open signal 1 = Constant hold open push button required To comply with UL 325 Type D protection, you must set HO to 1. www.hysecurity.com Display & Menu Options D0559 Rev. A...
  • Page 48 0 setting. It is important to adjust the clock for the operator’s time zone, because significant events are time and date stamped which provides historical operation data retrievable through S.T.A.R.T. and a PC laptop. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 49: Installer Menu

    Installer Menu. NOTE: Installer Menu options can also be configured through the use of a laptop computer and S.T.A.R.T. software. See Smart Touch Analyze and Retrieve Tool information found on the Hysecurity website: www.hysecurity.com UC 2 USAGE CLASS www.hysecurity.com...

  • Page 50: Installer Menu: Table 2

    Globally restores all menu settings back to new operator status. NOTE: If factory defaults are restored, any customized menu settings will need to be reprogrammed. You can save your customized menu settings using a PC laptop & S.T.A.R.T. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...
  • Page 51 Activates the partial open input and allows an 7 to 99 seconds PARTIAL OPEN adjustable distance by setting the open duration. The available time settings are 7-99 seconds. The default setting [PO 0] leaves this input inactive. www.hysecurity.com Display & Menu Options D0559 Rev. A...
  • Page 52 COM/+24 FAL 2 alert which requires a Stop or Reset button COM/ PHOTO EYE press to clear and enter. All other HySecurity CLOSE (#19) operators are factory set for normal open (a setting of zero).
  • Page 53 Relay function has been selected. It adjusts the 1 = 15s time delay before activation of the User Relay. 2 = 45s Refer to User Relays – Programming Procedure 4 = 105s on page 55. 5 = 135s www.hysecurity.com Display & Menu Options D0559 Rev. A...
  • Page 54 SLD0 RUN MODE 0 = Run mode Controls the HY-5A Shadow Loop detector. HY-5A SHADOW LOOP SET 1 = Show frequency (Reset Loop Set) 2 = Show call level 0-7 3 = Set Frequency D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 55: Setting The Close Timer

    Refer to Menu Mode Navigation on page 36. 3. To exit the User Menu, press the Menu button. The gate status appears in the display indicating you have returned to Run Mode. www.hysecurity.com Display & Menu Options D0559 Rev. A...

  • Page 56: Test The Operator

    It will close a second or two faster than normal operation and ignore any photo eye, vehicle loop, or other safety device inputs. NOTE: If additional accessories are to be added, read about STC Inputs & Wiring on page 49. XtremeDrive (rack) shown D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 57: Stc Inputs & Wiring

    CLOSE DIRECTION Red = alert, fault, or error DO NOT USE - 20 DO NOT USE CHARGER Charger AC Loss - 21 AC LOSS HySecurity HY-5A Shadow / 24V DC Gate Lock Interlock - 22 LOCK INTERLOCK MX000585 Reset* Accessory Power (+)

  • Page 58: Overview Of The Stc And Power Module

    STATUS PHOTO EYE CLOSE DIRECTION Amp Draw on Power Supplies DO NOT USE CHARGER AC LOSS Two power supplies are available: HySecurity HY-5A LOCK INTERLOCK MX000585 CENTER LOOP 24VDC and 24VAC VERSION EMERG CLOSE A maximum draw of 3A is allowable when...

  • Page 59: Integrating With Security Systems

    HySecurity hydraulic gate operators provides a 2-wire, serial interface (RS-485 connection) which allows remote access to one or more operators. With software protocols provided by HySecurity, bi-directional status updates and control commands are easily integrated with a central controller (computer or server), which becomes the primary (master) to the connected operators.

  • Page 60: Smart Touch Controller Inputs

    Menu: Table 2 on page 42. regulates the open timing. Free Exit Detector Refer to EB in the Installer Menu: Table Vehicle detector, box type 2 on page 42. connections for free exit loop. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...
  • Page 61 Jumper to +24. Refer to the Installer Installer menu FO enabled and Tact Button Menu: Table 2 on page 42. input +24V to trigger. Overrides photo eyes and gates edges. STC Inputs www.hysecurity.com STC Inputs & Wiring D0559 Rev. A...

  • Page 62: Connecting Accessory Devices

    (Ex. Card reader, keypad_ PHOTO EYE OUTSIDE LOOP OPEN DIRECTION DO NOT USE STATUS PHOTO EYE CLOSE DIRECTION DO NOT USE CHARGER AC LOSS HySecurity HY-5A LOCK INTERLOCK MX000585 CENTER LOOP VERSION EMERG CLOSE Photo eye FIRE DEPT OPEN Smart Touch Controller LIMIT...

  • Page 63: User Relays - Programming Procedure

    7/10ths of a second before the operator starts moving the gate and remains active while moving. Output remains active, for a few seconds, after stopping. www.hysecurity.com STC Inputs & Wiring D0559 Rev. A...
  • Page 64 Crash operators). On Crash products, Relay 3 is hard- wired for the LED barrier arm lights. Free Exit Loop Vehicle Detector Active when the Free Exit Loop is tripped. Relay 1, 2 or 3 output D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 65: Hy8Relay Module Option

    Tables 4 or 5. Table 5 is oriented toward revenue control parking lot applications. Wire communication cable connections between the DUAL GATE ports, at the base of the STC, and the extended mechanical relay module. www.hysecurity.com STC Inputs & Wiring D0559 Rev. A...

  • Page 66: Vehicle Detector Logic

    HySecurity recommends that vehicle detectors be used for free exit and obstruction sensing logic only. The exception is in parking or barrier arm applications where detectors may also be used to close the gate. In applications employing our swing, vertical lift, or sliding gate operators, closing logic cannot be used except when the anti-tailgate logic is employed.

  • Page 67: Vehicle Detector Installation: Hy-5A

    Standard box type 11 pin (24 VDC or 24 VAC) vehicle detectors may be connected in the traditional manner, but HySecurity HY-5A mini-detector modules plug directly into the Smart Touch Controller, making field installation much faster and enhancing performance. The detector communicates with the Smart Touch Controller microprocessor to achieve the following benefits: •...

  • Page 68: Connecting Hy-5A Vehicle Detectors

    If the fault is not resolved, an error message, ERROR 3 “Detector Failed” is displayed. NOTE: If there is any detector fault, the gate operator functions as if the detector is triggered. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 69: Photo Eyes (Non-Contact) Installation

    The two common photoelectric sensor types are thru-beam and retro-reflective; each has its advantages. A thru-beam sensor is generally more powerful and able to function reliably with dirty optics and in poor weather. www.hysecurity.com STC Inputs & Wiring D0559 Rev. A...

  • Page 70: Compatibility

    Compatibility The UL 325 standard requires that a photoelectric sensor be laboratory tested and “recognized” under UL 325. In order to be compatible with all HySecurity operators, a photo eye must be rated to function from 24 VDC source power.

  • Page 71: Photo Eye Connections

    PHOTO EYE CLOSE DIRECTION the NO or NC output to Terminal No. 19 DO NOT USE on the Smart Touch Controller. CHARGER AC LOSS HySecurity LOCK INTERLOCK MX000585 Š If the photo eye spans the gate’s open VERSION Integrated Photo...

  • Page 72: Photo Eye Alignment

    In order to avoid false triggering, it is important to carefully align the system, especially with retro- reflective photoelectric sensors. To that end, HySecurity has provided a unique feature that turns power on to the photo eyes and causes a buzzer to chirp when the photo eye enters and exits alignment. Align the photo eyes using this feature by taking the following steps: 1.

  • Page 73: Dual Gate Systems

    SlideDriver to provide both crash and personnel security. The STC software integrates seamlessly between operators. RS-485 communication is available for networked security systems. Refer to Integrating with Security Systems on page 51 for additional information. www.hysecurity.com Dual Gate Systems D0559 Rev. A...

  • Page 74: Dual Gate Wiring Connections

    STATUS PHOTO EYE PHOTO EYE CLOSE DIRECTION CLOSE DIRECTION DO NOT USE DO NOT USE CHARGER CHARGER AC LOSS AC LOSS HySecurity HySecurity LOCK INTERLOCK LOCK INTERLOCK MX000585 MX000585 VERSION VERSION EMERG CLOSE EMERG CLOSE FIRE DEPT OPEN FIRE DEPT OPEN...

  • Page 75: Dual Or Sequenced Gates: Power, Software & Accessory Requirements

    Be sure both operators are running the same software. The software version can be viewed on the display by pressing the RESET button. • Keep the most current software loaded. It is available at http://www.hysecurity.com. Make it part of your maintenance routine to check for and install software updates on a regular basis. •...

  • Page 76: Connecting Sequenced Gates

    STATUS PHOTO EYE PHOTO EYE CLOSE DIRECTION CLOSE DIRECTION DO NOT USE DO NOT USE CHARGER CHARGER AC LOSS AC LOSS HySecurity HySecurity LOCK INTERLOCK LOCK INTERLOCK MX000585 MX000585 VERSION VERSION EMERG CLOSE EMERG CLOSE FIRE DEPT OPEN FIRE DEPT OPEN...
  • Page 77 SG 1 = Sequenced Gate #1 configuration SG 2 = Sequenced Gate #2 configuration NOTE : Set both operators on the site to the same number. Refer to the site designs on the following pages. www.hysecurity.com Dual Gate Systems D0559 Rev. A...

  • Page 78: Sequenced Gate: Configuration #1

    Reset Loop can be offset from C/L 9 ft maximum (274 cm) gate 1 to 5 ft (31 to 152 cm). Dimension “F” = 10 to 15 ft (3 to 3.6 m) Drawings not to scale. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 79: Sequenced Gate: Configuration #2

    Security Gate defaults to open until communication is restored (or the Security Gate is manually closed). **NOTICE Center to center between gates: 4 ft minimum (122 cm) 9 ft maximum (274 cm) Drawings not to scale. www.hysecurity.com Dual Gate Systems D0559 Rev. A...
  • Page 80 D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 81: Troubleshooting

    Any Alert, Fault, or Error is logged into memory and stamped with the date and time. These diagnostic messages can be retrieved for analysis purposes via optional S.T.A.R.T. software and a PC laptop. NOTE: S.T.A.R.T. configuration and diagnostic software is available at no charge from www.hysecurity.com. www.hysecurity.com Troubleshooting...

  • Page 82: Troubleshooting Codes: Table 3

    Type Alert/Fault/Error Display Buzzer Chirp Sequence Possible Cause & Suggested Corrective Action ALERT HYSECURITY 2 chirps per second every An emergency close with constant hold or an emergency open ENTRAPMENT MODE 2s while control input is has caused the entrapment code to appear. When a command...
  • Page 83 • There may be a problem with the loop itself. Check with a megohm meter. New loops should read 100 mega-ohms or better, between 50 and 100 operation are generally OK, below 50 meg-ohms install a new loop. www.hysecurity.com Troubleshooting D0559 Rev. A...
  • Page 84 M30/ M50 gate moving, unless the VFD is experiencing a fatal error. If you cannot clear the error alert by pressing the open or close button, contact HySecurity. ALERT ALERT 22...
  • Page 85 !ACTION BLOCKED 1 chirp indicating that Operator received command to run open, but movement is GATE EDGE the command cannot be prevented. Gate edge blocked or disconnected and causes intiated operator to enter SAFE mode. www.hysecurity.com Troubleshooting D0559 Rev. A...
  • Page 86 Make sure both units are working properly. ERROR ERROR 7 3 chirps per second once Contact HySecurity. MENU CHECKSUM per minute ERROR ERROR 8 3 chirps per second once Check wiring from the hydraulic cylinder to the STC.

  • Page 87: Electrical Issues

    12. With the knowledge that the power is correct and the electric motor runs, check the STC display. If an error, alert or fault code appears, refer to Troubleshooting Codes: Table 3 on page 74 to determine possible resolutions. www.hysecurity.com Troubleshooting...

  • Page 88: Mechanical Issues

    NOTE: If the gate speed must be changed, contact your HySecurity distributor or HySecurity Tech Support. Extremely cold weather is unlikely to seriously affect the gate speed because HySecurity employs a special grade of hydraulic fluid (Uniflow), which maintains a linear viscosity over a broad temperature range. This high quality fluid, combined with other design considerations, allows HySecurity to rate its operators for service in ambient temperatures of -40°F to 158°F (-40°C to 70°C).

  • Page 89: Typical Problems And Troubleshooting Procedures

    Alignment on page 64. If you have a battery-powered photo eye, check that the batteries are viable and the batteries are fresh. If needed, realign the photo eye. Refer to Photo Eye Alignment on page 64. www.hysecurity.com Troubleshooting D0559 Rev. A...
  • Page 90 D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 91: General Maintenance

    With S.T.A.R.T. software loaded on your laptop computer, you have an invaluable management tool for all HySecurity operators. The RS-232 serial port (found on the Smart Touch Controller), allows you to download system diagnostics and upload system configurations using the S.T.A.R.T. software. The free S.T.A.R.T. software is conveniently located at www.hysecurity.com.

  • Page 92: Software Maintenance

    The software on the STC board is periodically being enhanced with new features that create an easier install and improve the on-board diagnostic tools. Be sure to check the HySecurity website for the latest version of software and operator code before heading out for field maintenance.

  • Page 93: Electrical Controls

    Stopping the Gate Most models (except SlideDriver 15 and 40) employ a time delay Soft Stop system. Additionally, brake valves are used to control the stopping of heavy or fast moving gates. These valves are exclusive to HySecurity operators. They are independently adjustable to allow the gate to stop predictably and without banging.

  • Page 94: Mechanical Maintenance

    9½ to 10 inches (24 to 25 cm) from base AdvanceDrive™ Wheel of SlideDriver chassis if using XtremeDrive™ wheels. For site planning, see “SlideDriver/ SlideDriver 50VF Site Installation Overview” on page ii. Drive Rail (standard) Rack XtremeDrive™ Wheel XtremeDrive™ System D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 95: Drive Wheel Spring Tension (Adjustment Of Manual Release)

    ⅜” bolt so the drive wheels spread equally when they are fully disengaged. Toggle handle Toggle handle Drive rail slides between drive wheels Drive wheels 2 to 2 ” Red spring controls (5 to 5.4 cm) wheel grip Coupling Nut for spring tension adjustment www.hysecurity.com General Maintenance D0559 Rev. A...

  • Page 96: Grooved Drive Rail

    Solenoid Lock option. The Solenoid Lock option requires an outer edge flange and therefore must be installed with the non-grooved, flanged drive rail. D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...

  • Page 97: Drive Wheel Assembly

    NOTE: Installation instructions are provided with the replacement drive wheels. However, a brief overview of the drive wheel assembly is shown below. Collared Drive Wheels AdvanceDrive Wheels AdvanceDrive Wheels assembled AdvanceDrive and XtremeDrive Wheel combo www.hysecurity.com General Maintenance D0559 Rev. A...

  • Page 98: Hydraulic System Maintenance

    3. Fill to within ½ inch of the plug level, and then replace plug. NOTICE: Never use brake fluid. It will severely damage the hydraulic system. Use of any fluid other than fluid recommended by HySecurity Brake Valves may void the operator warranty.

  • Page 99: Brake Valve Adjustments

    The open valve is solenoid operated and, when energized, directs the hydraulic flow to open the gate. No adjustment of this valve is possible or necessary. The black solenoid coil mounts on its valve stem. www.hysecurity.com General Maintenance D0559 Rev. A...

  • Page 100: Slidedriver Operator Maintenance Schedule

    Special Notes: *1. Your gate and gate hardware will require more maintenance than your HySecurity operator. A damaged gate or worn hardware may cause slow or erratic operation and will result in excess drive wheel wear. Lubricate gate hardware more frequently and check for smooth operation by opening the toggle clamping mechanism and then pushing the gate manually.

  • Page 101: Slidedriver Installer Checklist

    HeCKlIst This check list is provided by HySecurity and is to be used after installing a SlideDriver gate operator. 1. Before checking the items in this list, make sure power is turned OFF at the main power disconnect and the operator’s control box power switch is also in the OFF position.
  • Page 102 ‰ WARNING placards mounted on both sides of the gate within sight of vehicle and pedestrian traffic per UL 325 standards. Date: Operator Serial Number: ____________________________________________________________________ Installer Name (please print): _________________________________________________________________ End user’s name (please print): ________________________________________________________________ Site address: _______________________________________________________________________________ ___________________________________________________________________________________________ ___________________________________________________________________________________________ ___________________________________________________________________________________________ Notes: ____________________________________________________________________________________ ___________________________________________________________________________________________ ___________________________________________________________________________________________ D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com...
  • Page 103 3. Buyer’s Exclusive Remedies for Any Nonconformity. will remain serviceable for the following periods: If a HySecurity product fails to conform to the warranties in Section 1, Buyer must a. Hydraulic Gate Operators: Five Years or 500,000 gate cycles (whichever occurs first)

  • Page 104: Specifications

    All rights reserved. No part of this manual may be reproduced by any means (photocopier, electronic, or mechanical), without the express written permission of HySecurity Gate, Inc. Federal copyright law prohibits the reproduction, distribution, or public display of copyrighted materials without the express written permission of the copyright owner, unless fair use or other exemption under copyright law applies.

This manual is also suitable for:

Slidedriver 50vf 2/3Slidedriver 30fSlidedriver 200Slidedriver 40Slidedriver 80

Table of Contents
