Wire Solar Panel to Operator
16. Open one of the knockout holes in the lower junction box (FIG-6).
17. Use a wire nut to connect the solar panel positive lead to the red 11" wire (MX001890), then use a wire nut
to connect the solar panel negative lead to the black wire of solar harness (MX001892) (FIG-6).
18. Place the DC Power Label (MX001892) from kit over the AC label.
19. Reassemble lower and upper Junction Box covers and SDC transparent cover (FIG-1), then turn upper and
lower DC Power switches to ON.
17
Wire Solar Panel
Connect BLACK wire to
Solar Panel negative lead.
Connect RED wire to
Solar Panel positive lead.
16
To Solar Panel
support.hysecurity.com
Technical Instructions

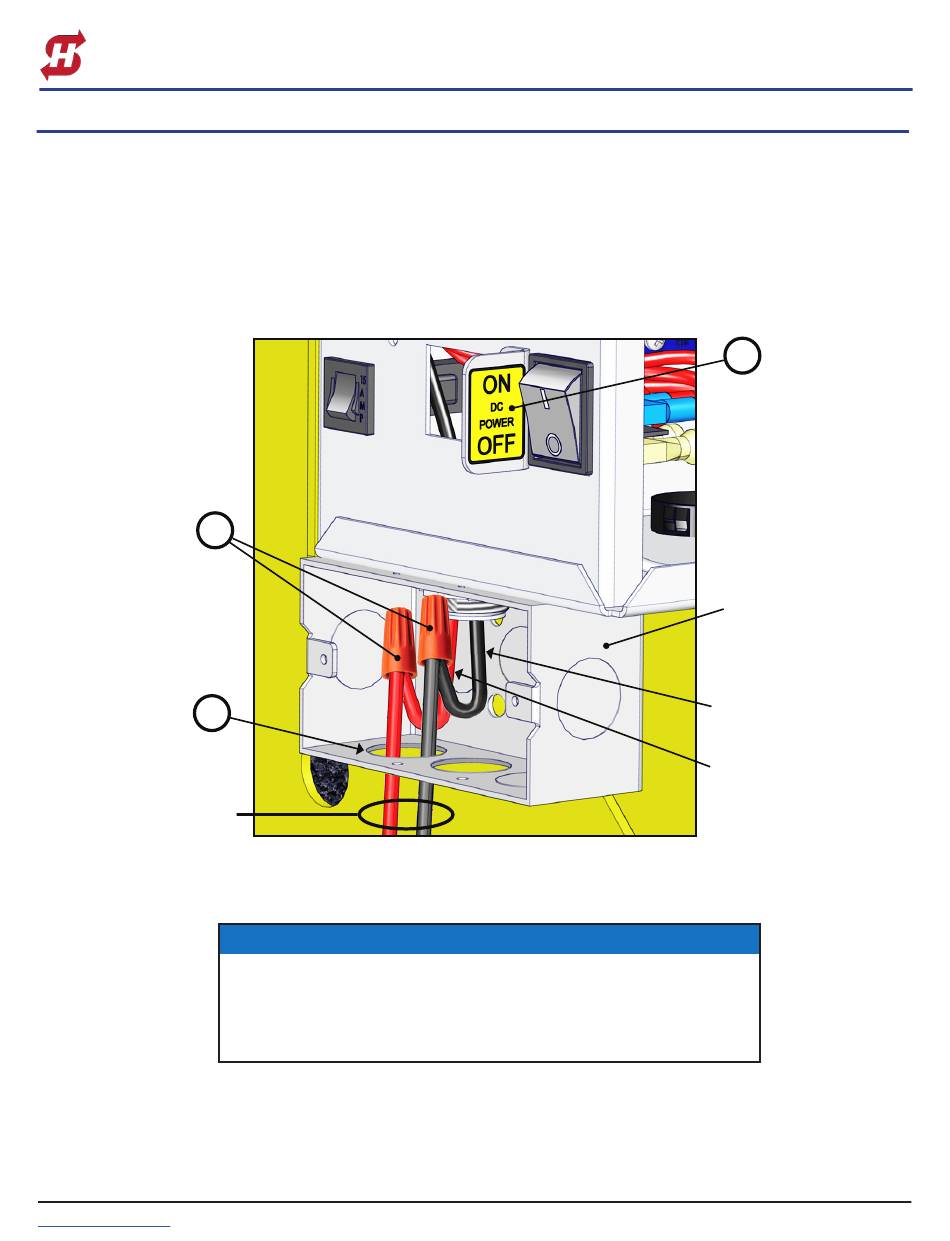

FIG-6: Connectiong Solar Panel Cable Leads

IMPORTANT NOTICE!

The charging type must be set in the operator to "Solar" using
either the controls on the SmartTouch controller or using the START
software.
Instructions for both are provided on the following pages.
Instructions: Converting SlideSmartDC from AC to Solar Power
Power Switch
18
Label
Place DC Power label
(MX001832) over the
AC label.
Lower
Junction
Box
Black wire from Solar
Harness (MX001892)
Red 11" wire (MX001890).
