6.4.1 Laser Tube Alignment

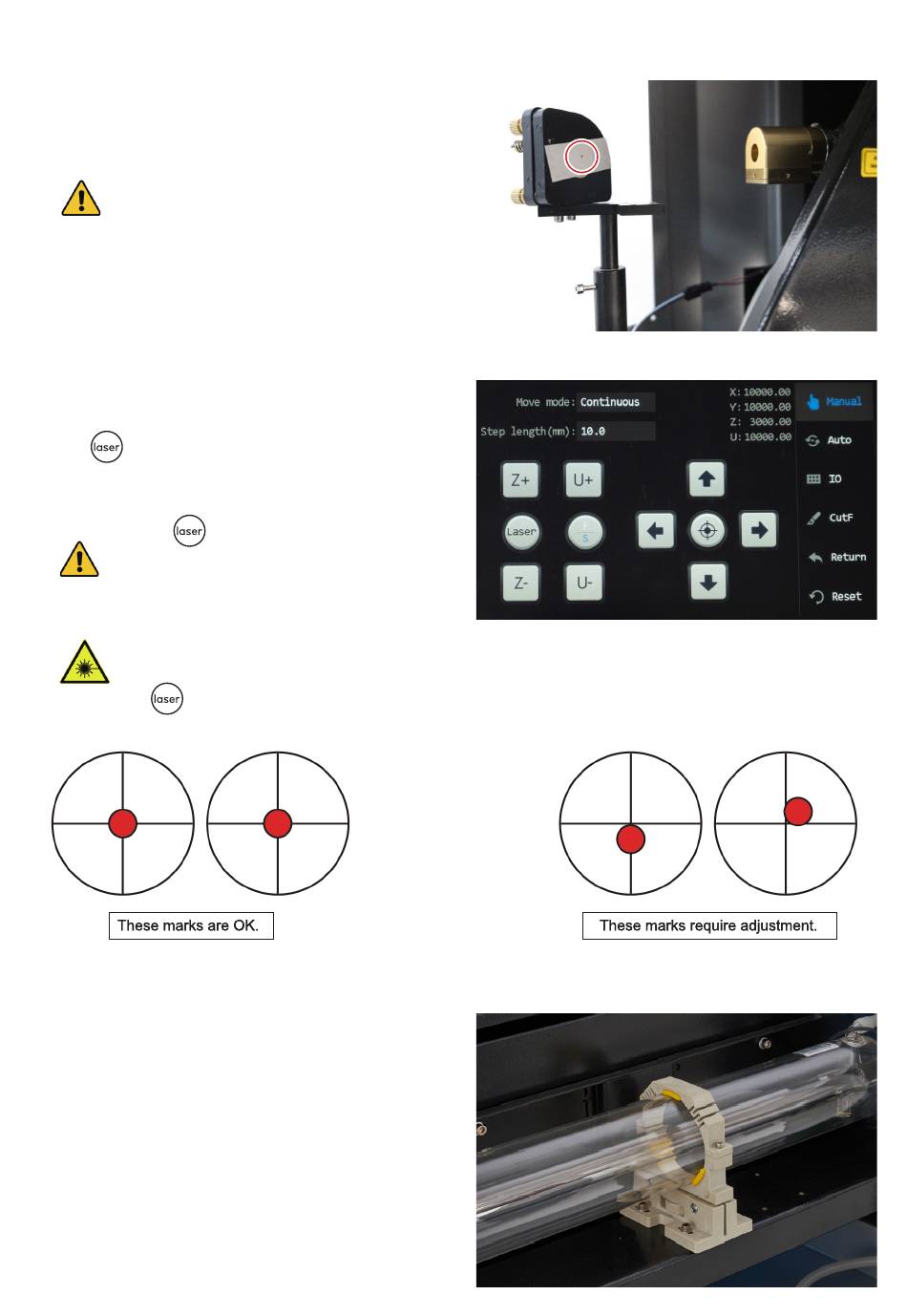

1. To test the alignment of the laser tube with the 1st
mirror, cut out a piece of tape and place it on the
mirror's frame.
DO NOT place the tape directly onto the
mirror. Turn on the machine and set the power
level to 15% or lower.
2. Tap "manual" in the main menu, and the following
menu pops up.
3. Tap to manually fire the laser. You should be able
to see a small mark on the tape. If it is not noticeable,
tap again.
Tapping
sure the path is clear between the laser and its
target.
Never allow foreign objects between the laser
and its target. Take care not to leave any part
of your body in the laser path while pressing
the button.
The laser mark should be near the center of the hole.
If the laser is not centered on the 1st mirror, cut the
power to your laser and carefully adjust the laser tube
in its brackets. This may require loosening the bolts on
its stand. Be careful not to overloosen the bolts and not
to overtighten them. Only adjust one stand at a time.
activates the laser. Always make
