5.8.2 IO Diagnosis

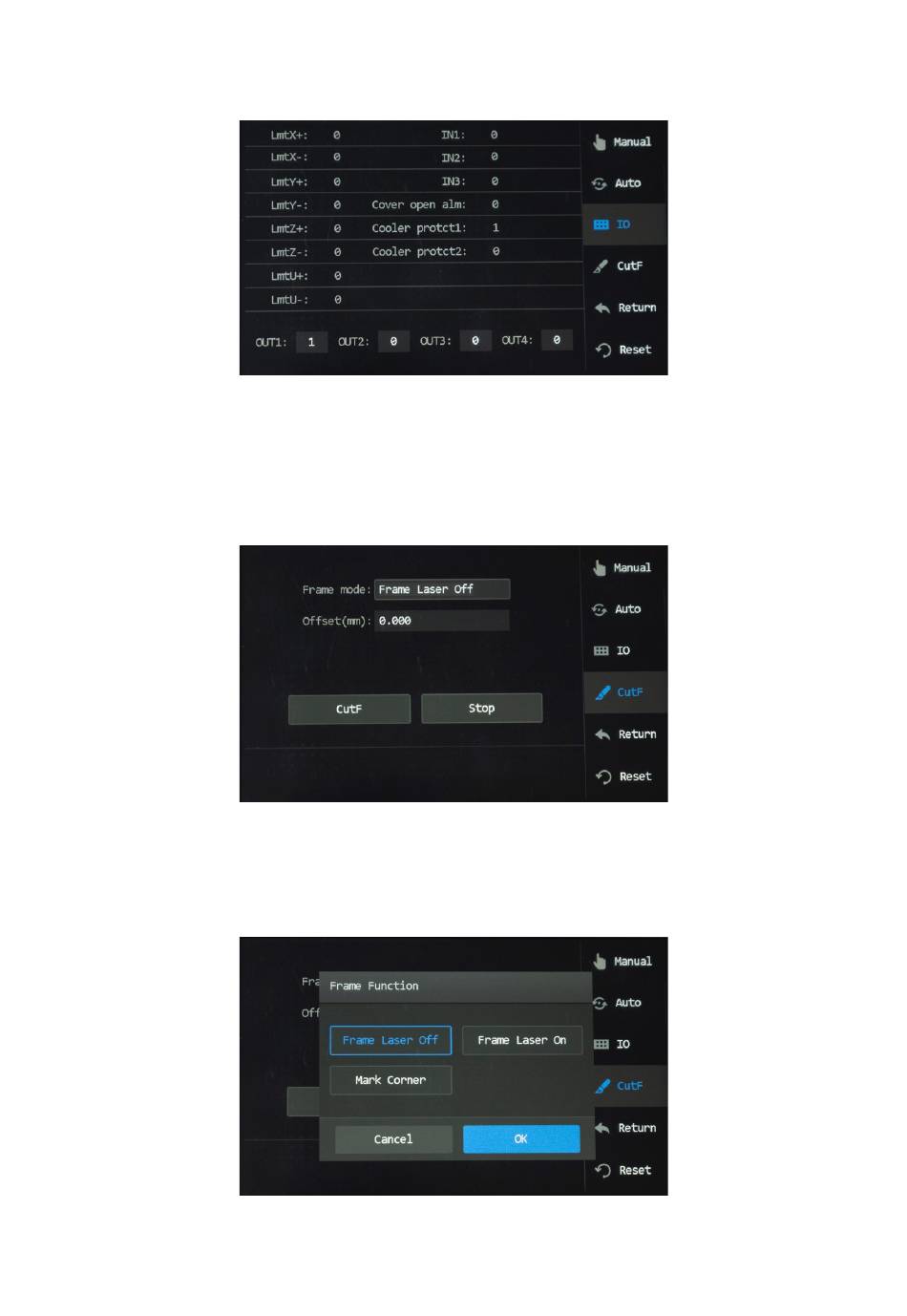

Tap "I/O", and the menu pops up as shown.
The alteration of those parameters is currently disabled.

5.8.3 Frame Cutting

Tap " CutF" , and the menu as shown pops up.
To cut a frame at a set distance from the outer circumference of the design file,
1. Tap the box after "Frame mode" and choose "Frame laser on". Choosing "Frame Laser Off" disables the laser.
Tapping "Mark Corner" sets the laser to cut a hole at each corner of the frame.
2. Set your desired distance between the frame to be cut and the outer circumference of the design file.
3. Tap "Cut Frame" and the laser should start firing. To stop, tap "Stop" to shut off the laser.
