Omtech PRO 2440 User Manual page 48

Attribute: Encompasses four parameters concerning the way a file is processed.

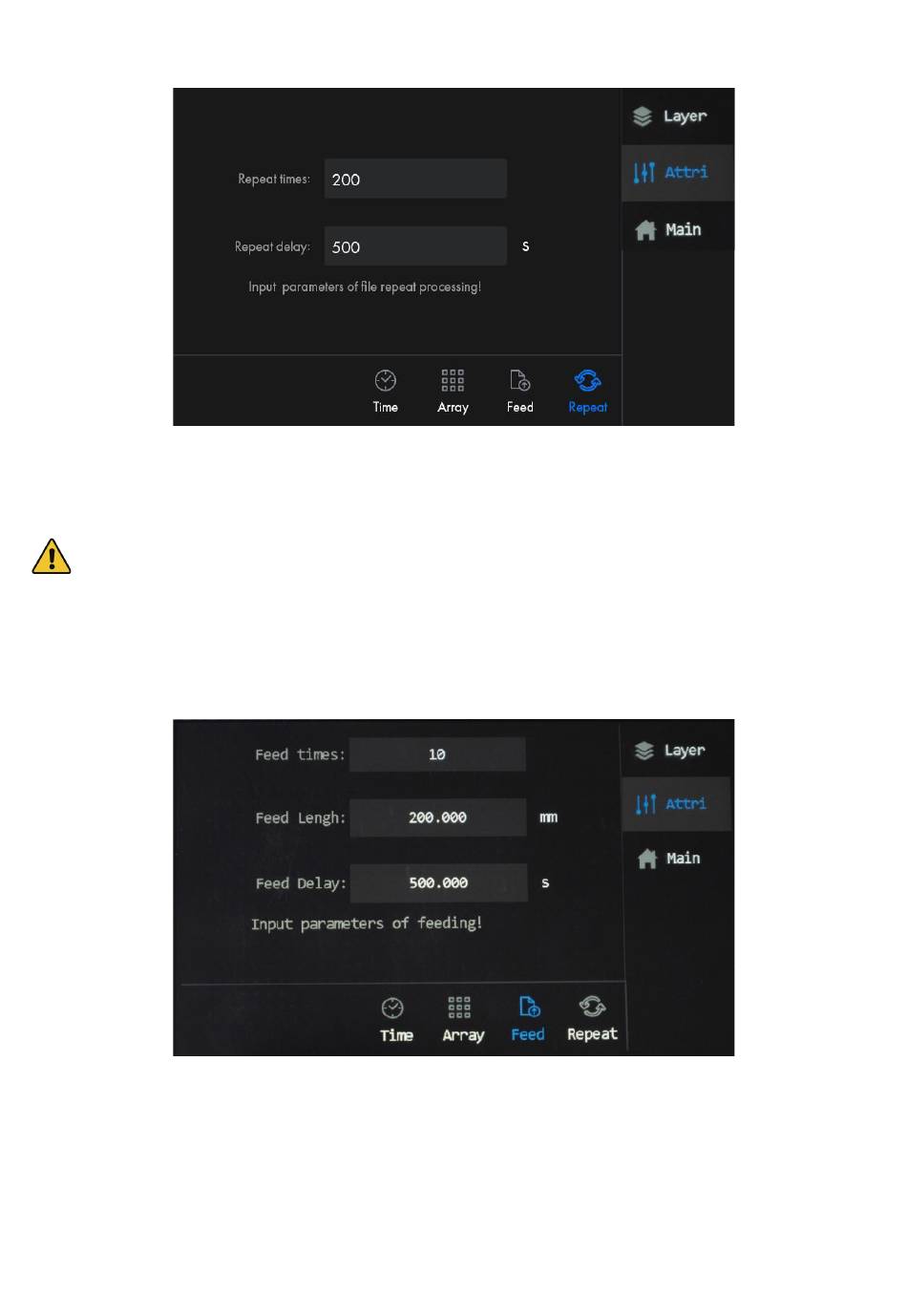

Repeat times: Sets how many times the process is repeated.
Repeat delay: Sets the interval between two repeated processing.
Once the repeat times and delay is set and saved, the change applies to all the files that are currently on the
system's worklist unless it suffers a power breakout or being turned off.
Feed times: Sets how many continuous times the system feeds the laserable workpiece during one engraving task.
Feed Length: Controls the length of the workpiece that is conveyed onto the workbed.
Feed Delay: Sets the interval between two consecutive workpiece feeds.
Array: Encompasses all the array information of the file under the filename that you have tapped in the main menu,
including direction, size, number, interval1, interval2, dislocation, and mirror.
44
