2 Hardware
2.1 Board Overview
The following image highlights some key features of the ADC3669EVM.
Analog
Inputs
2.2 Required Equipment
The following equipment is not included with the EVM kit, but is required for proper evaluation.
• TSW1418EVM FPGA Capture card for capturing data from the ADC
• At least two low-noise signal generators to provide the ADC sample clock and analog input. TI recommends
either of the following signal generators:
– Rohde & Schwarz SMA100A
– Rohde & Schwarz SMA100B
• Bandpass filters for the sample clock and analog inputs. TI recommends to use filters with a narrow
passband (within 5%-15% of the desired bandwidth), and minimal insertion loss.
• SMA cables to connect the inputs.
SBAU441 – MARCH 2024
Submit Document Feedback
CLK Input ADC3669
USB to PC

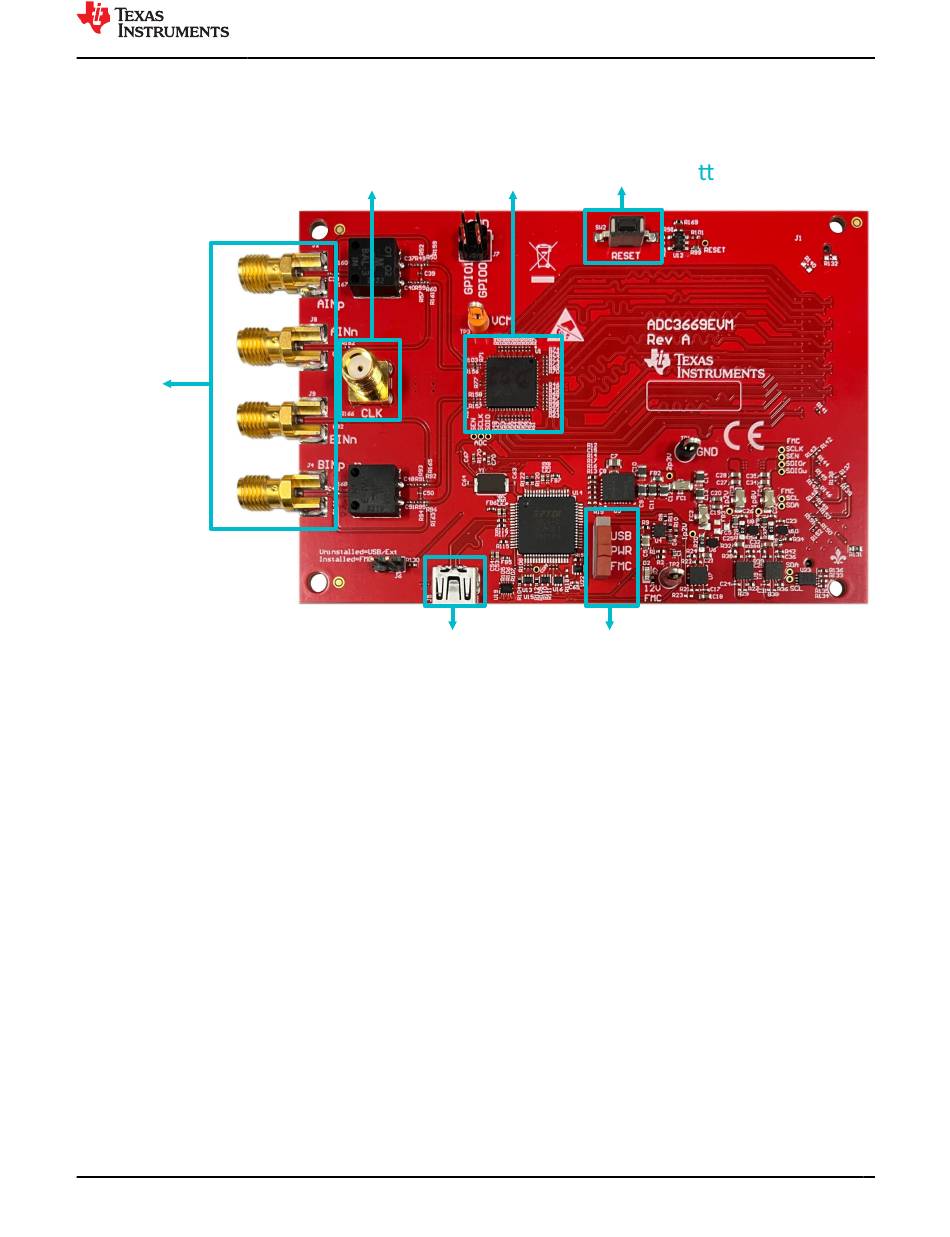

Figure 2-1. ADC3669EVM Features.
Copyright © 2024 Texas Instruments Incorporated
Reset Bu on

Power Switch

ADC3669 Evaluation Module
Hardware
