Implementation Results
7. In VS Code, run the python script by clicking on Run > Run without debugging.
4.2 Data Capture
1. After the script completes, users are prompted to click Enter to capture data in the terminal at the bottom of
the VSCode window.
2. When the data is captured, an FFT capture appears in HSDC Pro, where users can view the performance of
the device. For more functions and features of HSDC Pro, see the HSDC Pro User Guide (SLWU087).
8 ADC3669 Evaluation Module

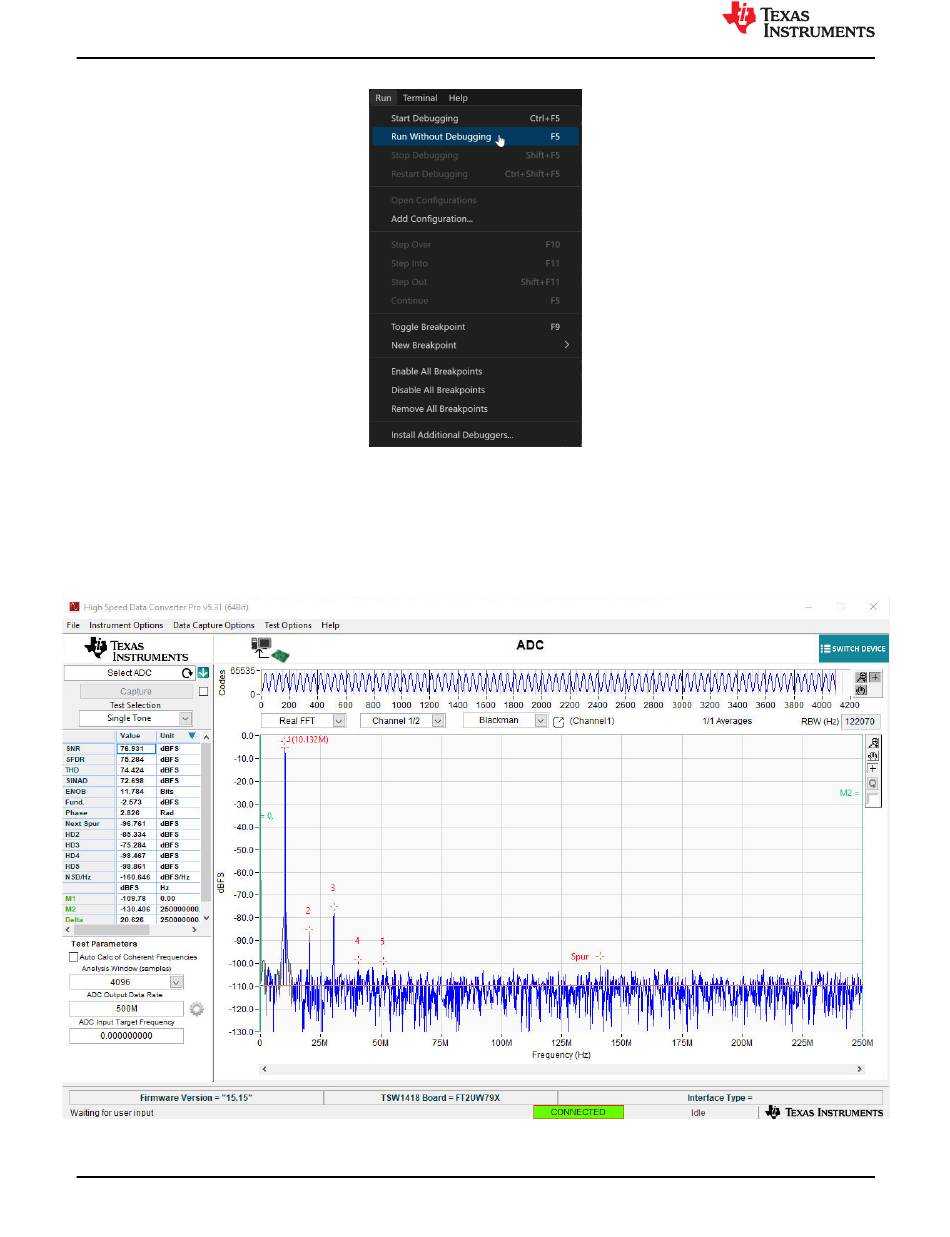

Figure 4-5. Running the Configuration Script
Figure 4-6. Successful Capture in HSDC Pro
