Implementation Results
4 Implementation Results
4.1 Evaluation Setup
1. Make sure that the hardware and software has been set up as described in
2. Launch VS Code and open the ADC3669 SW folder. Click on File > Open folder... Navigate to the folder and
select to open.

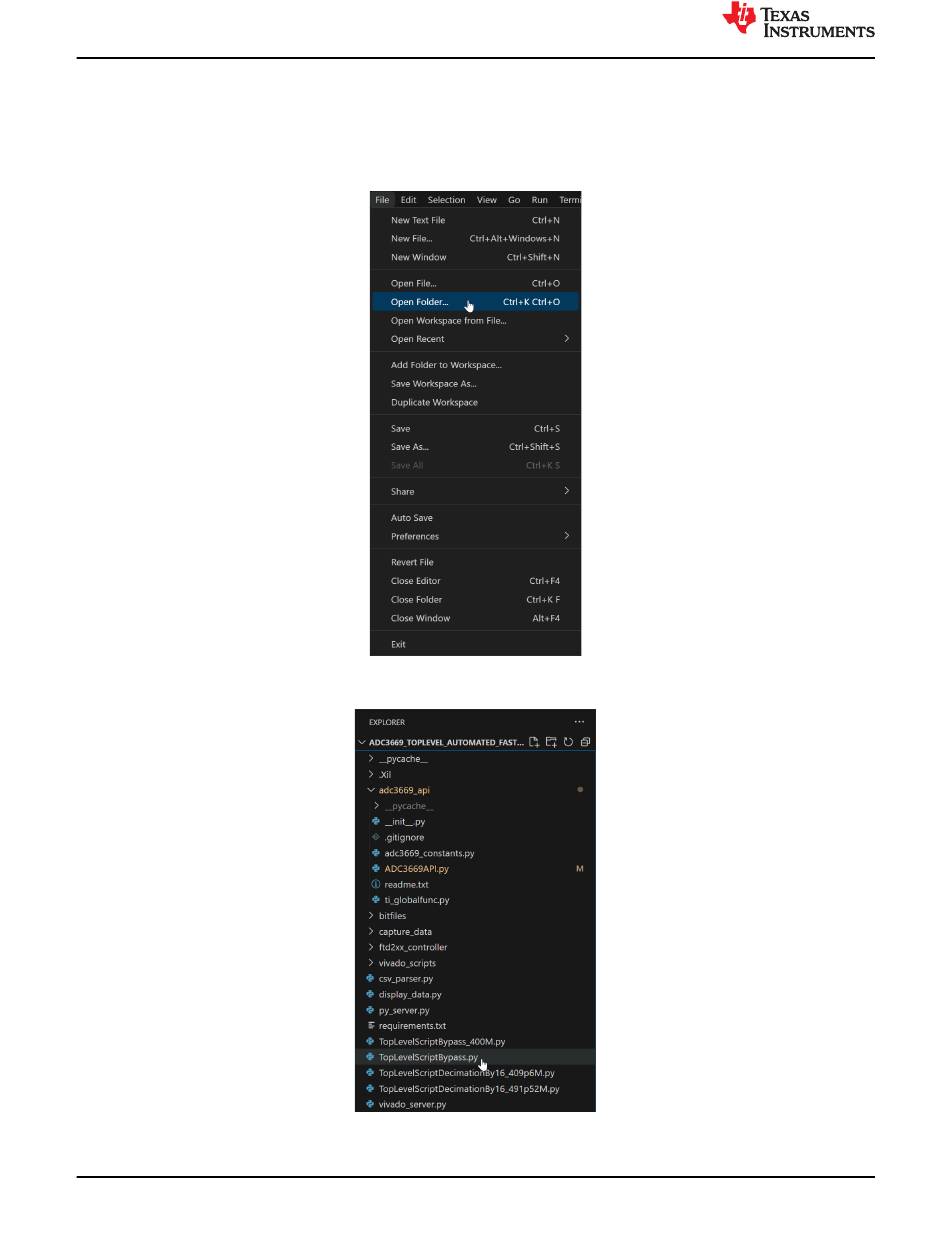

Figure 4-1. Opening the Provided Software folder in VS Code
3. In the file explorer on the left, click on the script named toplevelbypass.py to open.
Figure 4-2. Opening the Bypass Configuration script in VS Code
6 ADC3669 Evaluation Module
Copyright © 2024 Texas Instruments Incorporated
www.ti.com
Section 2.3 and Section 3.2.
