Summary of Contents for Showven SPARKULAR Cyclone II

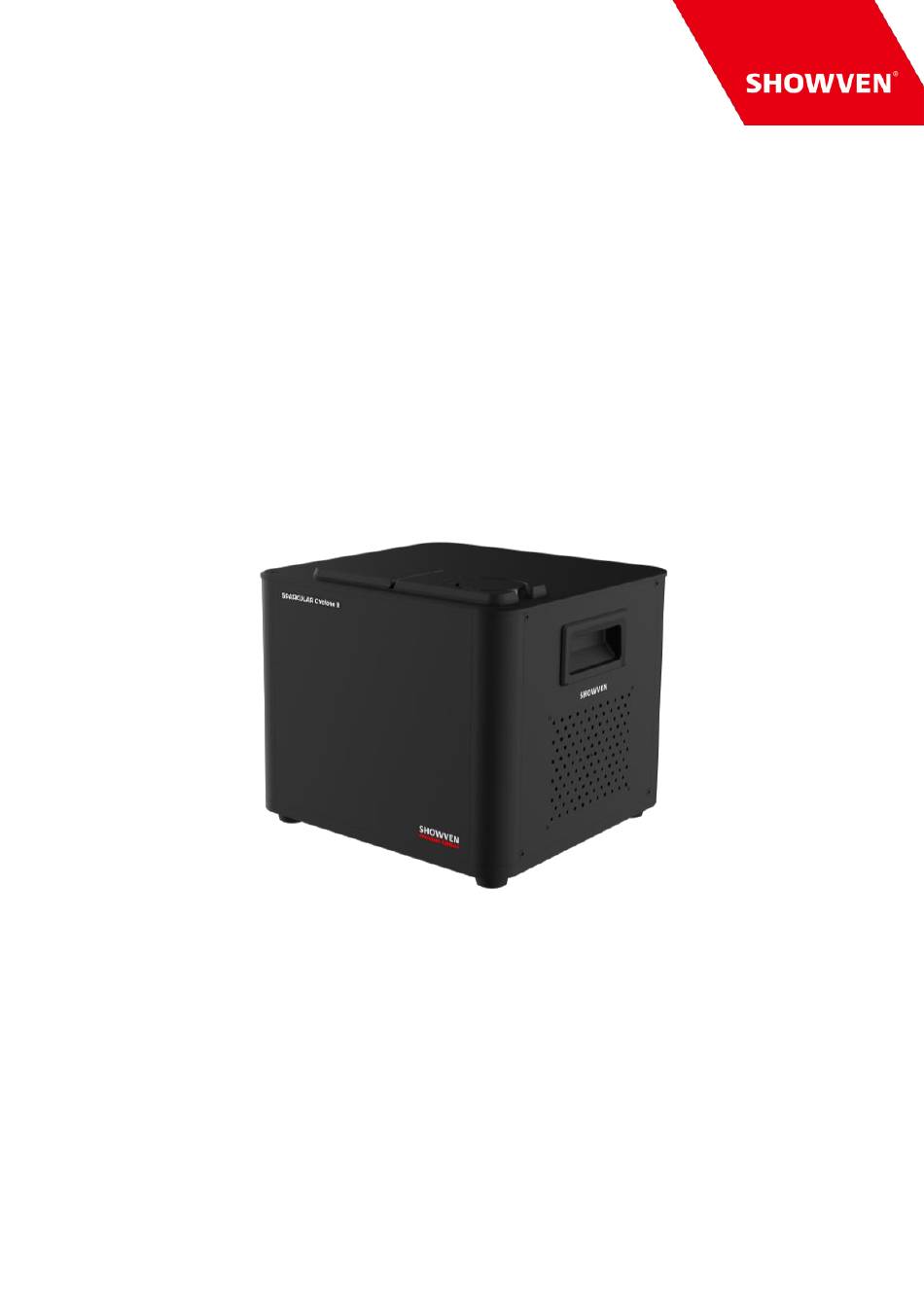

- Page 1 USER MANUAL SPARKULAR Cyclone II ® V1.0 2025/02/17 Showven Technologies Co., Ltd.
- Page 3 Thanks for choosing SPARKULAR Cyclone II , we wish it will sparks up your ® show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. SPARKULAR Cyclone II can be used in rain, but please keep it dry after use and when ®...
- Page 4 Description Δ SPARKULAR Cyclone II is an upgrade based on SPARKULAR Cyclone. Thanks to the new ® ® design and technologies we introduced, it is with 35% smaller on the footprint, and 40% lighter on weight (ONLY 16kg) comparing with its first generation. Besides, the output noisy is greatly decreased.
- Page 5 ® Structure of SPARKULAR Cyclone II Δ 1. Output Nozzle and Output Nozzle Lid (optional part) 2. Feeding Hopper Lid 3. ARM Alarming Light 4. RFID Card Swipe Region 5. Power Switch 6. Fuse 7. LCD Screen 8. 5-PIN DMX IN / OUT 9.
- Page 6 Safety Loop Installation Hole Diagram of Bottom Panel...
- Page 7 Operation Panel Δ 1. Keypad area: MENU: Press enter setting interface Parameter up DOWN: Parameter down MONI: Status monitoring of main part inside machine 2. Monitor Interface Press “MONI” enter monitor interface From this interface, we can check the PCB TEMP., motors status, DC voltage etc. of machine.
- Page 8 3. RFID area: RFID card come with consumable HC8200 bags, swiping card to identify parameters and types of granules. The RFID card is disposable, one card can only use one time. Each card can increase single machine 20min working time, the maximum recharge time for SPARKULAR Cyclone II is ®...
- Page 9 Display Interface Δ 1. Main Interface: DMX block: DMX address, when background color turns to RED means DMX connected. SAFE block: appears when DMX Channel Mode is 3CH-P, when safety channel DMX value between 50-200 the background color of TEMP area turns RED from BLACK. TEMP.
- Page 10 3. Menu Press “MENU” enter setup menu. MAIN: main menu ADVANCED: advanced menu TEST: test menu FACTORY: factory menu (for manufacturer use only). BACK: back to main interface LEFT: switch to left option RIGHT: switch to right option EDIT: edit the selected item 4.
- Page 11 DMX Channel 2CH-N: 2 channel mode 2CH-N/3CH-P 2CH-N Mode 3CH-P: 3 channel safety channel mode Fountain Height 5-10 Manual firing height adjust, for test purpose. Manual Heat ON/OFF Auto heating up ON/OFF Manual Fountain ON/OFF Manual firing ON/OFF. 5. Advanced Menu Choose ADVANCED at menu interface, press EDIT enter advanced menu interface Options Range...
- Page 12 *For better performance of SPARKULAR Cyclone II, please don’t change the default value ® without permission from SHOWVEN ® 6. Test Interface Choose TEST at menu interface, press EDIT enter test menu interface Blower Test: blower output test, testing time is 2s.
- Page 13 Select “DEVICE” SPARKULAR on FXmore (please refer to FXmote manual), Match machine with FXmote by Press “SET” on FXmote when machine at Wireless Control interface. FXmote is not standard configuration, if you need to order please contact SHOWVEN sales.
- Page 14 Operation Guide Δ 1. Install SPARKULAR ® Cyclone II a) Horizontal installation is preferred for SPARKULAR Cyclone II. If need to installed ® SPARKULAR II in angles, please turn the Tip over to OFF status first, maximum firing angle ® is 45 °...
- Page 15 Assign DMX address for each unit of SPARKULAR Cyclone II. If use SHOWVEN host ® controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine. If use FXmote to control SPARKULAR Cyclone II wirelessly, please set machine to wireless ®...
- Page 16 6. Turn Off and clean up a) Power off SPARKULAR Cyclone II, allow SPARKULAR Cyclone II to cool down. ® ® b) Disconnect all POWER and DMX cables. c) Empty the remaining HC8200 in hopper, and store the remaining HC8200 in a dry sealed bottle for next time use.
- Page 17 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: Damage caused by use other type of consumable which is not originally from SHOWVEN ® Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human factors;...
- Page 20 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
