PANEL DESCRIPTION

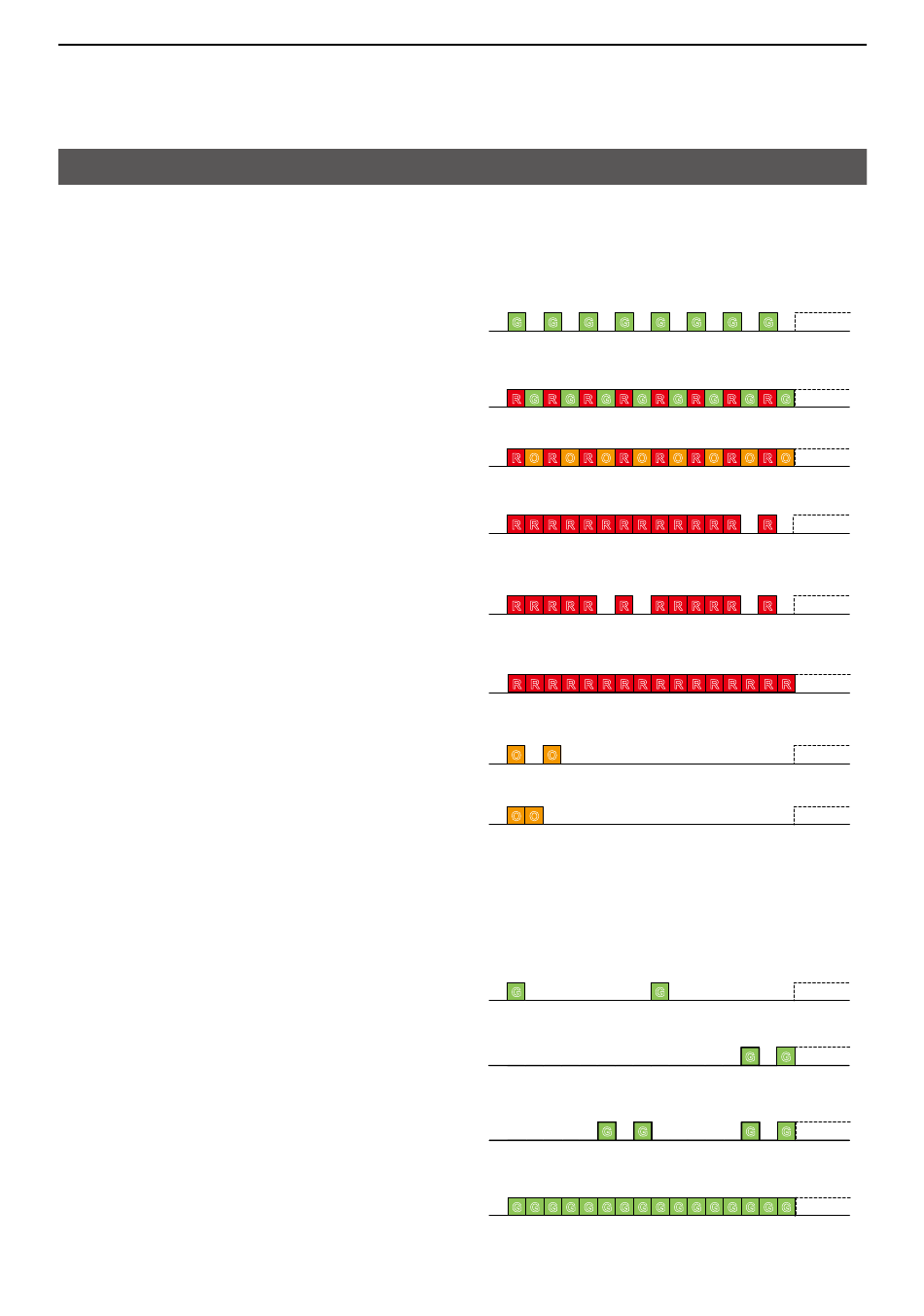

Status indicator

The Status indicator indicates the status of various
parameters of the transceiver, as described below.
(Reference: R=Red, G=Green, O=Orange)
• Programming:
Blinks while reading or writing data.
• Programming Error:
Continuously blinks green and red if programming
fails.
• Channel Error:
Continuously blinks red and orange when you select
a blank channel or an unlocked channel.
• TX Low Battery 1:
Blinks while detecting a low battery while
transmitting.
• TX Low Battery 2:
Blinks while detecting a very low battery while
transmitting.
• TX:
Lights while transmitting.
• Bell (Blink):
Blinks about twice every second, when the preset
signal* is received.
• Bell (ON):
Blinks about once every second, when the preset
signal* is received.
* Depending on the "Bell" setting, the Status indicator blinks:
• When a Break-in is received.
• When a Status call that includes a matching status
number is received.
• When a Call Setup is received in the dPMR operation.
• Scan:
Blinks green while scanning for a channel with a
signal.
• Low Battery 1
Blinks slowly when you should charge the battery
soon.
• Low Battery 2
Blinks fast when you should charge the battery soon.
• RX:
Lights green while receiving a signal.
