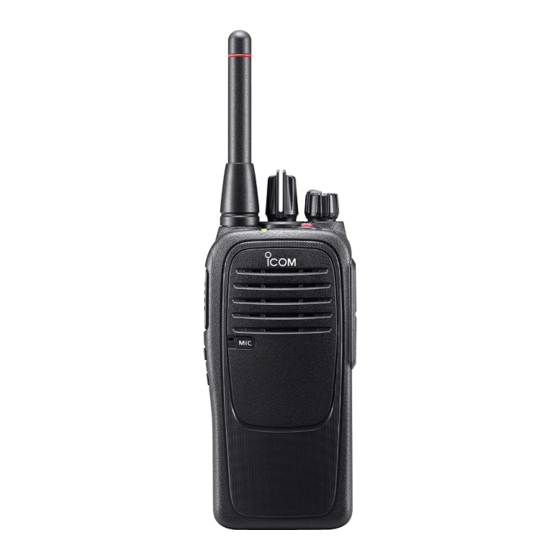

Icom IC-F29SR Operating Instructions Manual

Pmr446 transceiver
Hide thumbs Also See for IC-F29SR:
Table of Contents

Advertisement

Quick Links

See also: Instructions
OPERATING INSTRUCTIONS
PMR446 TRANSCEIVER
Iç-F29SR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-F29SR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Icom IC-F29SR

Summary of Contents for Icom IC-F29SR

  • Page 1 OPERATING INSTRUCTIONS PMR446 TRANSCEIVER Iç-F29SR...

  • Page 2: Table Of Contents

    Setting the microphone gain ......10 Setting the squelch level ........11 Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United King- dom, Germany, France, Spain, Russia and/or other countries.

  • Page 3: Accessories

    Section ACCESSORIES Accessory attachments Battery pack Attach or remove the battery pack, as illustrated to the To attach To remove right. Battery release buttons To attach the battery pack: Place the tabs on the bottom of the battery pack into the slots at the bottom of the transceiver.

  • Page 4: D Jack Cover

    ACCESSORIES Accessory attachments (Continued) Jack cover CAUTION: The transceiver meets IP67 requirements for dust-tight and waterproof protection, only when the jack cover or the optional HM-168LWP speaker is attached. micrOphOne To attach the jack cover: Place the jack cover over the speaker-microphone jack.

  • Page 5: Programmable Key Functions

    Section PROGRAMMABLE KEY FUNCTIONS Programmable key functions If you use the CS-F29SR (purchase cLOning sOFtware separately), you can assign the functions described be- low to [TOP], [Upper], and [Lower]. [TOP] NOTE: Refer to the instruction sheet that comes with the transceiver for the default settings of these keys. [Upper] [Lower] SCAN START/STOP...

  • Page 6: Led Indicator

    Section LED INDICATOR About the LED indicator The LED indicator indicates the status of various pa- rameters of the transceiver as follows: (Reference: R is Red, G is Green, O is Orange) • Cloning (reading or writing data) R G R G R G R G R G R G R G R G •...

  • Page 7: Settings

    Section SETTINGS Setting the Beep function The Beep function can be turned ON or OFF. When it is OFF, the channel announcement is also turned OFF. NOTE: You should turn ON the Beep function when you set the microphone gain, the squelch level or the group code number to check the current level setting with the beep sounding.

  • Page 8: Setting The Beep Level

    SETTINGS Setting the beep level You can adjust the beep level between 1 and 5, or 1 (linked) and 5 (linked). When a linked option is selected, you can adjust the beep level by rotating [VOL]. [VOL] to turn OFF the transceiver power. Rotate [ROTARY SELECTOR] to any channel other than Channel 16.

  • Page 9: Setting The Ringer Level

    SETTINGS Setting the ringer level You can adjust the ringer level between 1 and 5, or 1 (linked) and 5 (linked). When a linked option is selected, you can adjust the ringer level by rotating [VOL]. [VOL] to turn OFF the power. Rotate [ROTARY SELECTOR] to Channel 16.

  • Page 10: Setting The Group Code Number

    SETTINGS Setting the group code number CTCSS tone setting The transceiver is equipped with 50 CTCSS tones. CTCSS operation enables silent standby, since you will only receive calls from group members using the same CTCSS tone. Rotate [VOL] to turn OFF the power. [ROTARY SELECTOR] to any channel other [ROTARY SELECTOR] than Channel 16.

  • Page 11: Ddtcs Code Setting

    SETTINGS Setting the group code number (Continued) DTCS code setting This transceiver is equipped with 84 DTCS codes. DTCS operation enables silent standby, since you will only receive calls from group members using the same DTCS code. Rotate [VOL] to turn OFF the power. [ROTARY SELECTOR] to any channel other than Channel 16.

  • Page 12: Setting The Microphone Gain

    SETTINGS Setting the microphone gain Higher levels make the microphone more sensitive to the user’s voice. [VOL] to turn OFF the power. Rotate [ROTARY SELECTOR] to Channel 16. [Upper], rotate [VOL] to turn While holding down ON the power and enter the microphone gain adjust- [ROTARY SELECTOR] ment mode.

  • Page 13: Setting The Squelch Level

    SETTINGS Setting the squelch level The squelch circuit mutes the received audio signal, depending on the signal strength. Rotate [VOL] to turn the transceiver power OFF. [ROTARY SELECTOR] to any channel other than Channel 16. While holding down [Upper], rotate [VOL] to turn [ROTARY SELECTOR] ON the power and enter the squelch level adjust- ment mode.
  • Page 14 A-7150-3EU 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan © 2014 Icom Inc.
