4.0 Installation

4.1 Unpacking
Before starting the installation, carefully examine the rotator.
Open the box and carefully remove the padding. Check to see that the rotator has not been damaged during transportation. Keep

the packing material until you are sure the rotator works properly.
Make sure that rotisserie for 36 x 1.5/2.0 mL tubes is included.

Carefully lift the unit from the box.

Be sure that the following information is included on the label located on the bottom of the unit: Serial number, product number,

electrical rating.
Check that the power cord has the correct configuration that matches the outlet according to your local standards.

NOTE: If any damage occurred during transportation, contact your carrier immediately.
4.2 Installation
Place the rotator on a stable, flat surface. Connect the plug into the grounded wall socket. Avoid sockets where powerful electric
motors, refrigerators, and similar devices are also connected.
Use the On/Off switch to control the rotator.
Be careful when you plug the cord into the grounded wall socket.

Do not touch the plug with wet hands.

Do not pull the plug by the cord.


5.0 Loading the Rotisserie

The 36 x 1.5/2.0 mL tube rotisserie supplied with unit consists of two rotisserie plates attached to an axle that mounts into the motor
drive of the apparatus. The rotisserie plates from the other assemblies are interchangeable on the axles, so you can mix and match the
plates and process different tube sizes at one time. Individual rotisserie plates can be adjusted independently for two distinct types of
motion for each plate at the same time.
When removing and installing the rotisserie plates from the axle, always remove the axle from the units first. Otherwise damage may
occur to the axle or the unit. Mount the rotisserie assembly into the unit by inserting one end of the axle into the drive mechanism
and the other end into the bushing under the small green handle. The metal frame of the unit is flexible to allow inserting the
rotisserie without tools.
Be sure to distribute the tubes evenly across the entire rotisserie carrier for smooth rotating motion.

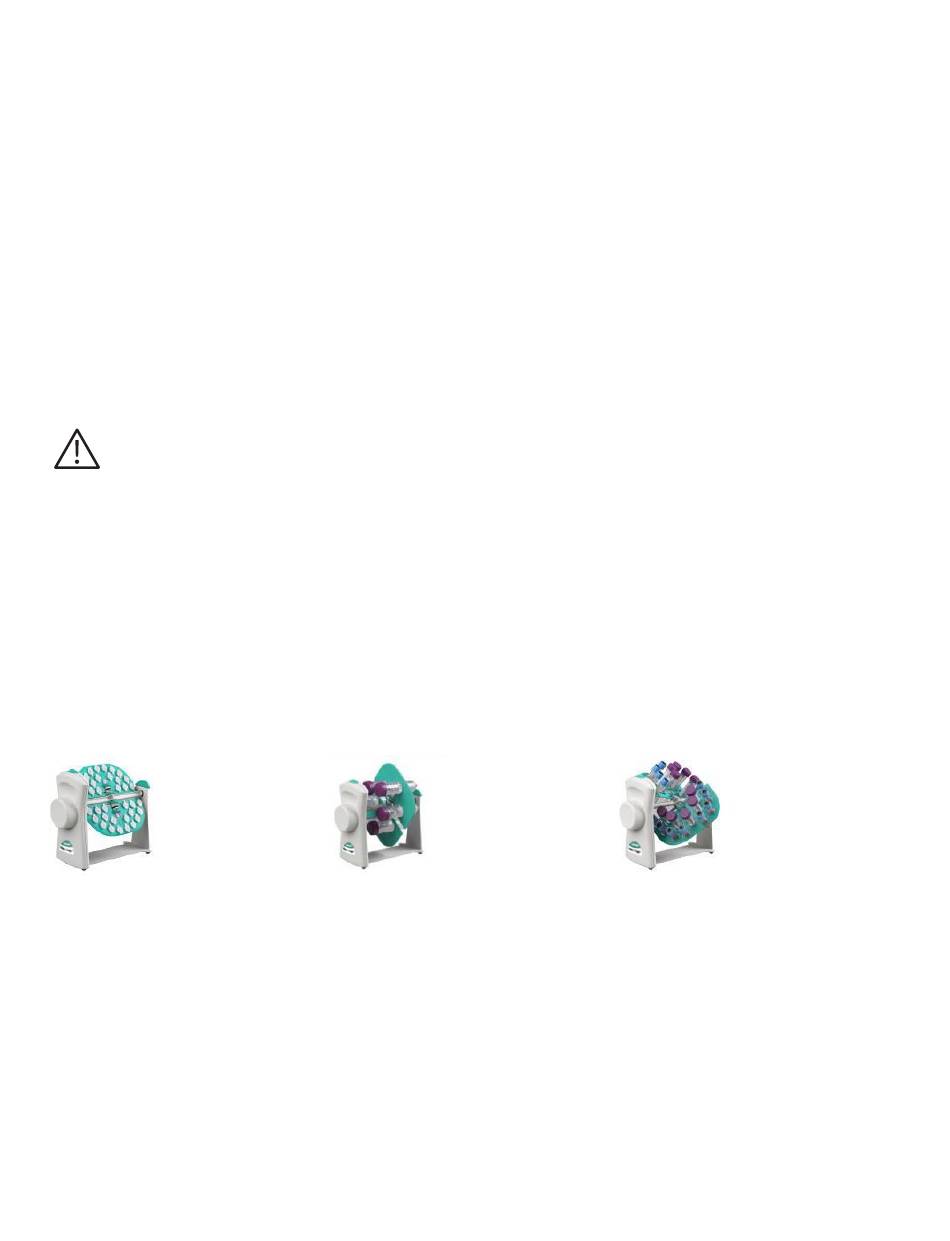

Tumbling
To create a tumbling motion for your
samples, turn the rotisserie plates so the
samples are in a vertical mixing position.

6.0 Cleaning and Maintenance

No routine maintenance or lubrication is required. Keeping the rotator clean will the help to maintain it in proper operating condition.
6.1 Cleaning
The outside housing can be cleaned with a soft, damp cloth when needed.
NOTE: Before cleaning the rotator, always unplug the power cord. Do not use any aggressive or abrasive cleaners (acetone, nitro,
polish, etc.). This may permanently damage the rotator finish.
2 | LABNET REVOLVER ROTATOR
Gentle Mixing
To create a gentle mixing motion for your
samples, turn the rotisserie plates so the
samples are in a horizontal mixing position.
Combination Mixing
To create a combination of mixing styles, turn
each rotisserie plate to the desired angle to
achieve two different agitation levels.
