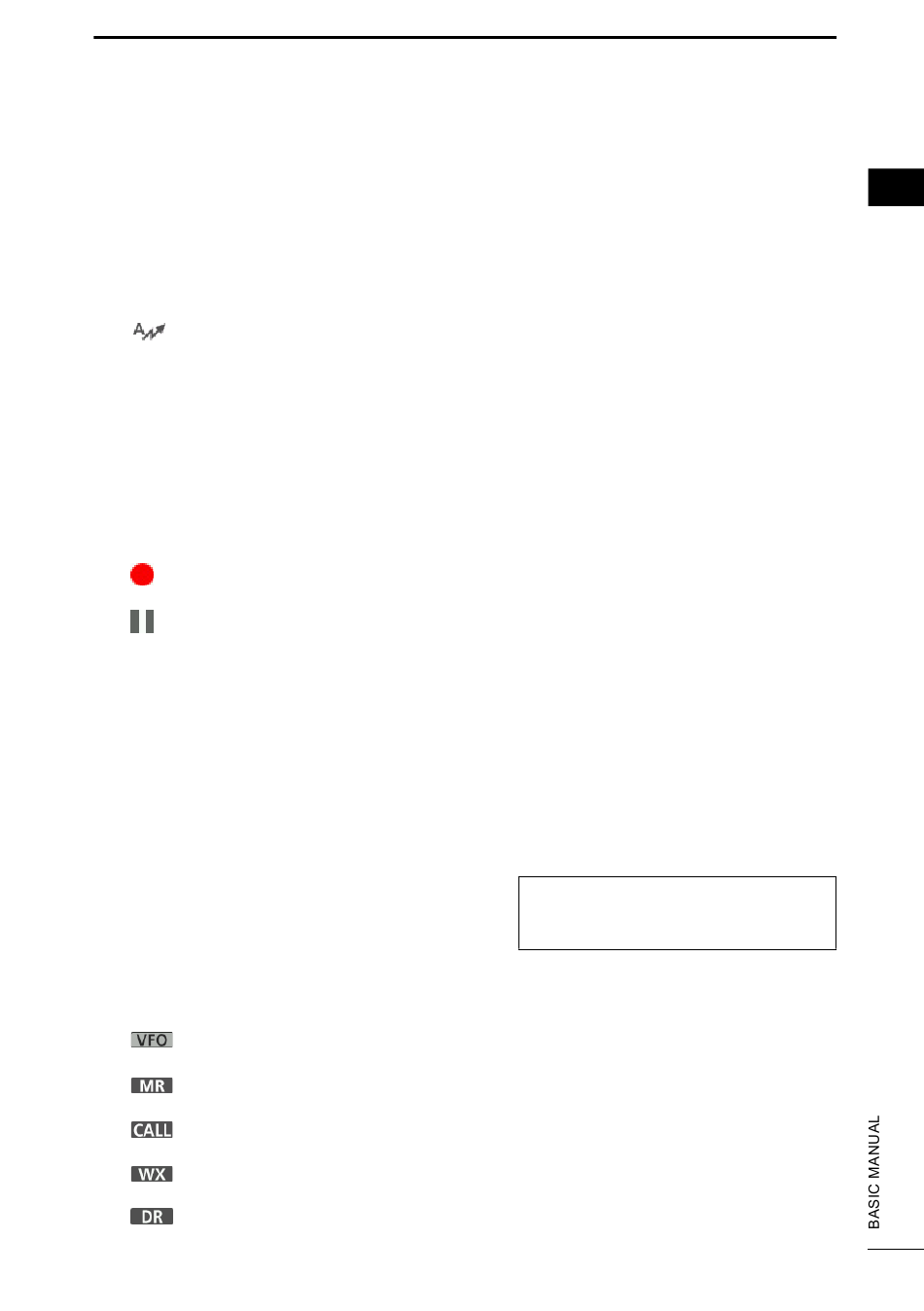

Icom ID-52E PLUS Basic Manual page 17

13 EMR/BK/PACKET LOSS/AUTO
REPLAY ICONS
• EMR: Displayed when the
Enhanced Monitor Request
(EMR) function is ON.
• BK: Displayed when the Break-
in (BK) function is ON.
• L: Displayed when packet loss
has occurred.
• : Displayed when the Auto
Reply function is ON.
14 AUTO POWER OFF ICON
Displayed when the Auto Power OFF
function is ON.
15 ATTENUATOR ICON
Displayed when the attenuator is ON.
(p. 16)
16 CLOCK DISPLAY
17 RECORD ICONS (p. 27)
• : Displayed while the
transceiver is recording.
• : Displayed while the
recording is paused.
18 WEATHER ALERT ICON
Displayed when the Weather Alert
function is ON. (Only the ID-52A PLUS)
19 SKIP ICONS
• SKIP: Displayed when Memory
Skip is selected.
• PSKIP: Displayed when Program
Skip is selected.
20 MEMORY CHANNEL NUMBER
• In the Memory mode, displays the
selected Memory group and Memory
channel number.
• In the Call Channel mode, displays
"144" or "430" and "C0" or "C1."
21 FREQUENCY SELECTING MODE
ICONS
• : Displayed while in the VFO
mode.
• : Displayed while in the
Memory mode.
• : Displayed while in the Call
Channel mode.
• : Displayed while in the
Weather Channel mode.
•
: Displayed while the DR
function is ON.
PANEL DESCRIPTION
22 MUTE ICON
• Displayed when "Sub Band Mute" is
set to "Mute" or "Mute & Beep."
( [MENU] > SET > Sounds
> Sub Band Mute)
• Displayed when you select a memory
channel that is out of the selectable
frequency range on the B band.
(p. 11)
23 S/RF METER
• Displays the relative signal strength of
the received signal.
• Displays the output power level of the
transmit signal.
24 POWER ICONS
Displays the output power level of the
transmit signal in 5 levels
(SLO/LO1/LO2/MID/no icon).
L When you select HIGH power, the
power icon disappears.
25 MEMORY NAME DISPLAY
L You can change the display type in the
Quick Menu window.
26 FREQUENCY READOUT
Displays an operating frequency.
27 MAIN BAND ICON
• When the Dualwatch function is ON,
indicates that the selected band (A or
B) is the MAIN band.
• When the Dualwatch function is OFF,
indicates the selected band (A or B).
• "AP" is displayed while in the Access
Point mode.
TIP: See "About the DV Gateway
function" that can be downloaded
from the Icom website.
