3.9 Replacing the Wi-Fi Mudule

1.

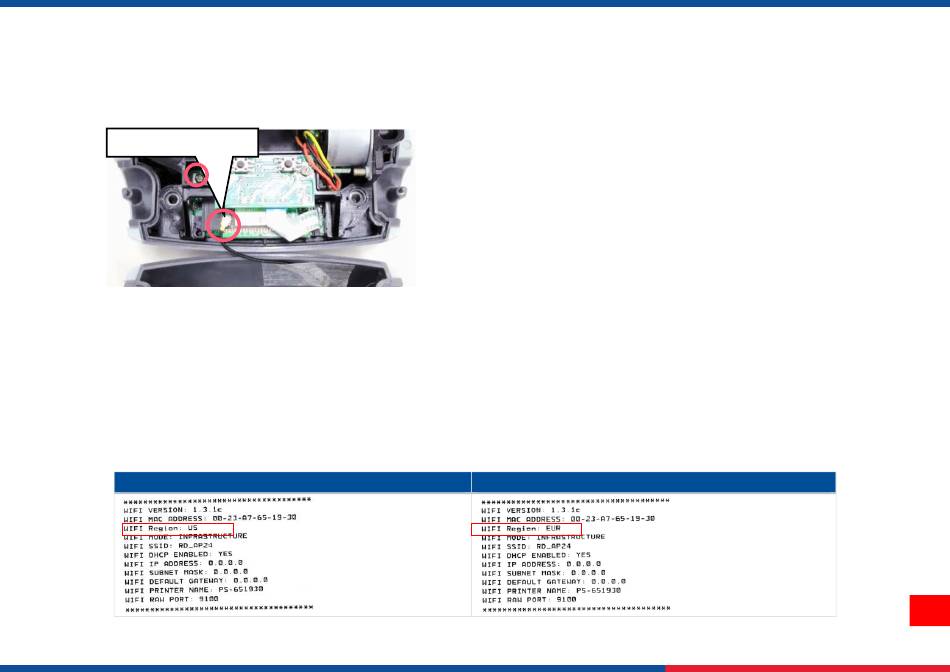

Refer to section 3.1 take the printer top cover off. Disconnect the Wi-Fi antenna connector carefully.
Wi-Fi antenna connector
2.
Refer to section 3.2 to remove the keys control board.
3.
Remove one screw on the Wi-Fi control board. Please refer to above picture.
4.
Replace the WiFi control board.
5.
Reassemble the parts in the reverse procedures.
Note:
 This is the new Wi-Fi module's replacing instruction. It should work with the main board that is -30LF version. (or later version)

If you replace the main board, please check the Wi-Fi signal band on configuration page for your using region. If any questions,
please contact the Customer Service Department of your purchased reseller or distributor for assistance.
