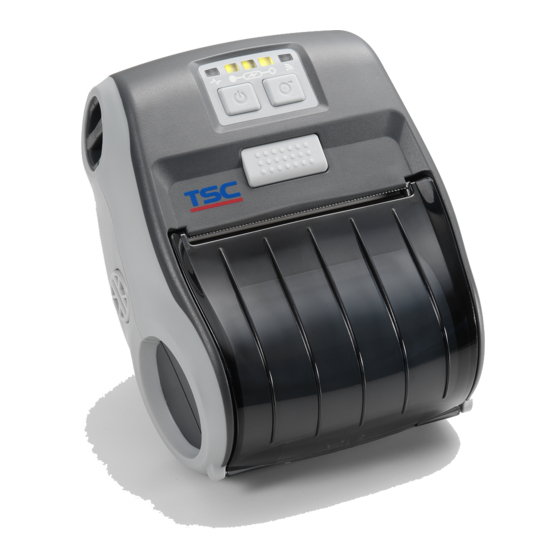

TSC Alpha-3R Series User Manual

Direct thermal portable printer
Hide thumbs Also See for Alpha-3R Series:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Alpha-3R Series
Direct Thermal Portable Printer
USER'S
MANUAL
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alpha-3R Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TSC Alpha-3R Series

Summary of Contents for TSC Alpha-3R Series

  • Page 1 Alpha-3R Series Direct Thermal Portable Printer USER’S MANUAL...
  • Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of TSC Auto ID Technology Co. No part of this manual may be reproduced or transmitted in any form or by any means, for any purpose other than the purchaser’s personal use,...
  • Page 3 Agency Compliance and Approvals CE CLASS B EN 55022:2006 +A1:2007 EN 55024:1998+A1:2001+A2:2003 EN 61000-4 SERIES REQULATIONS FCC CFR Title 47 Part 15 Subpart B:2011 Class B ICES-003 Issue 4:2004 Class B AS/NZS CISPR22---ITE AS/NZS 4268-----RF(WIFI & BT) Following standards for SAR( WIFI) Radio communications (Electromagnetic Radiation —...
  • Page 4 The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste. Class B: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 6 Ce périphérique a été évalué et démontré conforme aux limites SAR (Specific Absorption Rate – Taux d'absorption spécifique) par l'IC lorsqu'il est connecté à des dispositifs hôtes spécifiques opérant dans des conditions d’utilisation mobile. (Pour le Wi-Fi) Ce périphérique a également été évalué et démontré conforme aux limites d'exposition radio-fréquence par l'IC pour des utilisations par des opérateurs mobiles (les antennes sont à...

  • Page 7: Table Of Contents

    Contents 1. Introduction ..........1 1.1 Product Introduction ..................1 1.2 Product Features ....................2 1.2.1 Printer Standard Features ..............2 1.2.2 Printer Optional Features ............... 3 1.3 General Specifications ..................3 1.4 Print Specifications ................... 4 1.5 Media Specifications ..................4 2.
  • Page 8 6.2 Printer Function ....................27 6.3 Calibrating Media Sensor by Diagnostic Tool ..........28 6.3.1 Auto Calibration ..................28 6.4 Setting Wi-Fi by Diagnostic Tool (Optional) ..........29 6.5 Setting Bluetooth by Diagnostic Tool (Optional) .......... 30 7. Troubleshooting ..........31 7.1 Common Problems ..................

  • Page 9: Introduction

    1. Introduction 1.1 Product Introduction Thank you very much for purchasing TSC bar code printer. Enjoy TSC’s reputation for cost-efficient, high durability printers with the Alpha-3R economical printer. The Alpha-3R is a comfortable, light-weight printer capable of working with any mobile printing application where you need quick, simple receipts/labels on demand.

  • Page 10: Product Features

    1.2 Product Features 1.2.1 Printer Standard Features The printer offers the following standard features. Product standard feature Direct thermal printing Black mark reflective sensor Head open sensor 3 operation buttons (On/off, feed, and cover-open) 2 color LED for printer status, 3 LEDs for battery status USB 2.0 (full speed) interface 8 MB SDRAM memory 4 MB FLASH memory...

  • Page 11: Printer Optional Features

    1.2.2 Printer Optional Features The printer offers the following optional features. User Factory Product option feature options options ○ 802.11 b/g/n wireless ○ Bluetooth 2.0 ○ CPCL emulation Black mark sensor position ○ (left / right / center) Charge station 1 cell ○...

  • Page 12: Print Specifications

    1.4 Print Specifications Print Specifications Alpha-3R Print head resolution 203 dots/inch (8 dots/mm) Printing method Direct thermal Dot size 0.125 x 0.125 mm (width x length) (1 mm = 8 dots) Print speed 2, 3, 4 ips selectable (inches per second) Up to 4 ips 72 mm (2.83”) Max.

  • Page 13: Operations Overview

    2. Operations Overview 2.1 Unpacking and Inspection This printer has been specially packaged to withstand damage during shipping. Please carefully inspect the packaging and printer upon receiving the bar code printer. Please retain the packaging materials in case you need to reship the printer. Unpacking the printer, the following items are included in the carton.

  • Page 14: Printer Overview

    2.2 Printer Overview 2.2.1 Front View 1. LED indicator 2. Feed button 3. Power on/off button 4. Media cover release button 5. Media holder adjustment knob 6. Media cover...

  • Page 15: Interior View

    2.2.2 Interior View 1. Tear edge 2. Print head 3. Media holder 4. Platen 5. Black mark sensor...

  • Page 16: Rear View

    2.2.3 Rear View 1. Li-ion battery 2. Battery open clasp 3. USB interface 4. Power jack 5. Interface cover...

  • Page 17: Operator Control

    2.3 Operator control 2.3.1 LED Indication and Keys 1. Power on/off button 2. Printer status LED indicator 3. Battery charge level LED indicator 4. Battery status LED indicator 5. Wireless status LED indicator 6. Feed button Status Indication Printer is ready Printer status LED Green (blinking) Printer is paused...
  • Page 18 Keys Function 1. Press and hold for 2-3 seconds to turn on the printer. 2. Press and hold for 2-3 seconds to turn off the printer. 1. Ready status: Feed one label 2. Printing status: Pause the print job...

  • Page 19: Setup

    3. Setup 3.1 Install the Battery 1. Insert the left side to install the battery at the rear of the printer. 2. Push the right side of the battery. 3. Pull the battery clasp to lock the battery. Battery safety warning: DO NOT throw the battery in fire.

  • Page 20: Charge The Battery

    3.2 Charge the Battery It takes 2 to 3 hours to fully charge the battery before the first time usage. The lifetime of the battery is 300 times for charge/discharge cycles. 3.2.1 Charge the Battery 1. Open the interface cover and plug the power cord to the power jack.

  • Page 21: Charge By Charger Station (Optional)

    3.2.2 Charge by Charger Station (Optional) 1. Plug the power cord to the power jack on the charger station. 2. Install the battery in the charger station. (Refer to steps on section 3.1) 3. Plug the power cord into a properly power outlet.

  • Page 22: Charge By Vehicle Power Adaptor (Optional)

    3.2.3 Charge by Vehicle Power Adaptor (Optional) Open the interface cover and plug the power cord to the power jack. Plug the vehicle power adaptor into the car cigarette lighter socket.

  • Page 23: Communicate

    3.3 Communicate 3.3.1 Connecting with the Communication Cable * USB to USB Cable (Optional) Open the interface cover and connect the printer to the computer with USB cable. USB interface USB connector (Printer) USB connector (PC) * USB to RS-232 Cable (Optional) Open the interface cover and connect the printer to the computer with RS-232 cable.

  • Page 24: Connecting With Bluetooth (Optional)

    3.3.2 Connecting with Bluetooth (Optional) Turn on the printer and make sure the Bluetooth Default of device is open. Name BT-SPP Note: 0000 Please refer to section 6.5 to change the name of default and PIN.

  • Page 25: Loading The Media

    3.4 Loading the Media Open the printer media cover by pressing the media cover release button. Use a coin to rotate the media holder adjustment knob, and the media holder should be placed at the correct place to fit the media roll.
  • Page 26 Place the media roll at the correct side, and pull out enough paper over the tear edge. Press each side of media cover to close the media cover and make sure the media cover closed correctly.

  • Page 27: Accessories

    4. Accessories 4.1 Install the Belt Clip Refer to figure beside. Loop the belt clip through the slot below the battery. Fasten the belt clip with 2 buttons. The printer can be hung on the belt.

  • Page 28: Install The Ip54-Rated Environmental Case With Shoulder Strap (Optional)

    4.2 Install the IP54-rated environmental case with shoulder strap (Optional) Open the case top cover. Top cover Put the printer into the case. Close the case top cover. And the outside cover should be opened while printing. Outside cover...

  • Page 29: Power-On Utilities

    5. Power-on Utilities There are three power-on utilities to set up and test printer hardware. These utilities are activated by pressing FEED button( ) then turning on the printer power simultaneously and release the button at different positions of LED indicator. Please follow the steps below for different power-on utilities.

  • Page 30: Self-Test And Dump Mode

    5.2 Self-test and Dump Mode Please follow the steps below. 1. Turn off the power switch. 2. Hold on the FEED button( ) then turn on the power switch. 3. Release the FEED button( ) when the indicator becomes blinking. (Any green will do during the 5 blinks) ...
  • Page 31  Self-test Printer will print the printer configuration after media sensor calibration. Self-test printout can be used to check if there is any dot damage on the heater element, printer configurations and available memory space. Printer model name & Main board firmware version Printer serial number Printed mileage Main board firmware checksum...

  • Page 32: Dump Mode

     Dump mode Printer will enter dump mode after printing printer configuration. In the dump mode, all characters will be printed in 2 columns as following. The left side characters are received from your system and right side data are the corresponding hexadecimal value of the characters.

  • Page 33: Printer Initialization

    5.3 Printer Initialization Printer initialization is used to clear DRAM and restore printer settings to defaults. Printer initialization is activated by the following procedures. 1. Turn off the power switch. 2. Hold on the FEED button( ) then turn on the power switch. 3.

  • Page 34: Diagnostic Tool

    6. Diagnostic Tool TSC’s Diagnostic Utility is an integrated tool incorporating features that enable you to explore a printer’s settings/status; change a printer’s settings; download graphics, fonts and firmware; create a printer bitmap font; and send additional commands to a printer.

  • Page 35: Printer Function

    6.2 Printer Function 1. Select the PC interface connected with bar code printer. The default interface setting is USB interface. If USB interface is connected with printer, no other settings need to be changed in the interface field. 2. Click the “Printer Function” button to setup. 3.

  • Page 36: Calibrating Media Sensor By Diagnostic Tool

    6.3 Calibrating Media Sensor by Diagnostic Tool 6.3.1 Auto Calibration 1. Make sure the media is installed ready and media cover is closed. (Please refer to section 3.4) 2. Turn on the printer power switch. 3. Open Diagnostic tool and set interface. (The default setting is USB) The default interface setting is USB interface.

  • Page 37: Setting Wi-Fi By Diagnostic Tool (Optional)

    6.4 Setting Wi-Fi by Diagnostic Tool (Optional) 1. Make sure the media is installed ready and media cover is closed. (Please refer to section 3.4) 2. Turn on the printer power switch. 3. Open Diagnostic tool and set interface. (The default setting is USB) The default interface setting is USB interface.

  • Page 38: Setting Bluetooth By Diagnostic Tool (Optional)

    6.5 Setting Bluetooth by Diagnostic Tool (Optional) 1. Make sure the media is installed ready and media cover is closed. (Please refer to section 3.4) 2. Turn on the printer power switch. 3. Open Diagnostic tool and set interface. (The default setting is USB) The default interface setting is USB interface.

  • Page 39: Troubleshooting

    7. Troubleshooting 7.1 Common Problems The following guide lists the most common problems that may be encountered when operating this bar code printer. If the printer still does not function after all suggested solutions have been invoked, please contact the Customer Service Department of your purchased reseller or distributor for assistance.
  • Page 40 * The printer is in Hex Dump * Turn off and on the printer to skip the mode. Irregular printing dump mode. * The RS-232 setting is * Re-set the Rs-232 setting. incorrect.

  • Page 41: Maintenance

    8. Maintenance This session presents the clean tools and methods to maintain your printer. 1. Please use one of following material to clean the printer.  Cotton swab  Lint-free cloth  Vacuum / Blower brush  100% Ethanol or Isopropyl Alcohol 2.

  • Page 42: Revise History

    Revise History Date Content Editor Camille Add standards for C-Tick 2013/4/3 2013/5/14 Modify the section 1.3 Camille 2013/5/24 Modify the section 1.5 Camille 2013/8/26 Update pictures for Alpha-3R Camille Modify section 1.1 Camille 2013/11/12 Modify section 1.5...
  • Page 43 9F., No.95, Minquan Rd., Xindian Dist., No.35, Sec. 2, Ligong 1st Rd., Wujie Township, New Taipei City 23141, Taiwan (R.O.C.) Yilan County 26841, Taiwan (R.O.C.) TEL: +886-2-2218-6789 TEL: +886-3-990-6677 FAX: +886-2-2218-5678 FAX: +886-3-990-5577 Web site: www.tscprinters.com E-mail: printer_sales@tscprinters.com TSC Auto ID Technology Co., Ltd. tech_support@tscprinters.com...
