3. Mechanism
3.1 Replacing the Planten Roller
1.

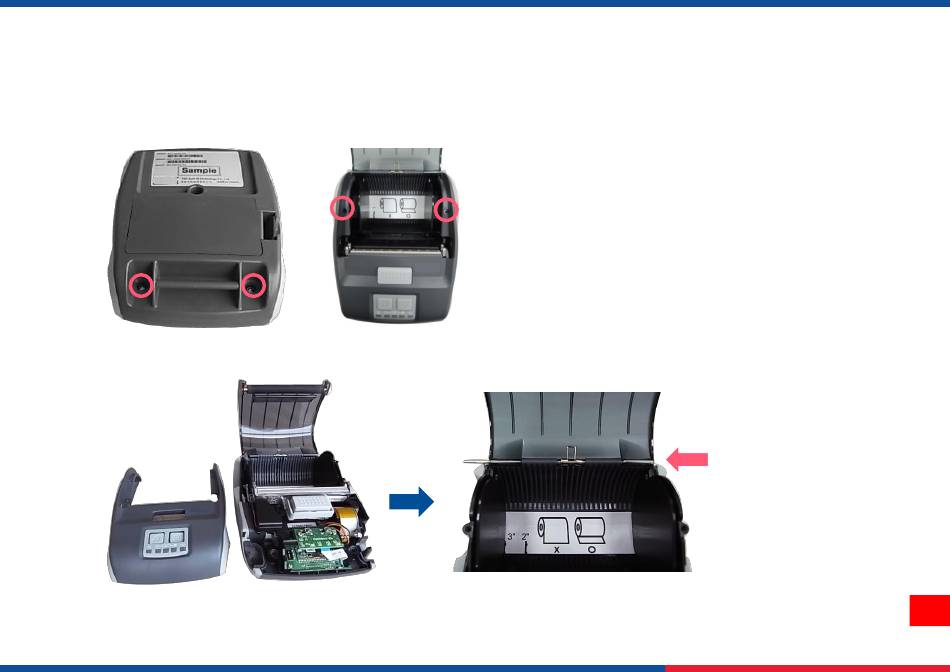

Remove 2 screws from the back of the printer and two screws from the front of the printer.
2.
Take the printer top cover off. Use a tool to remove the shaft. Remove/Replace the media cover. (including the platen roller
ass'y)
3.
Reassemble the parts in the reverse procedures.
