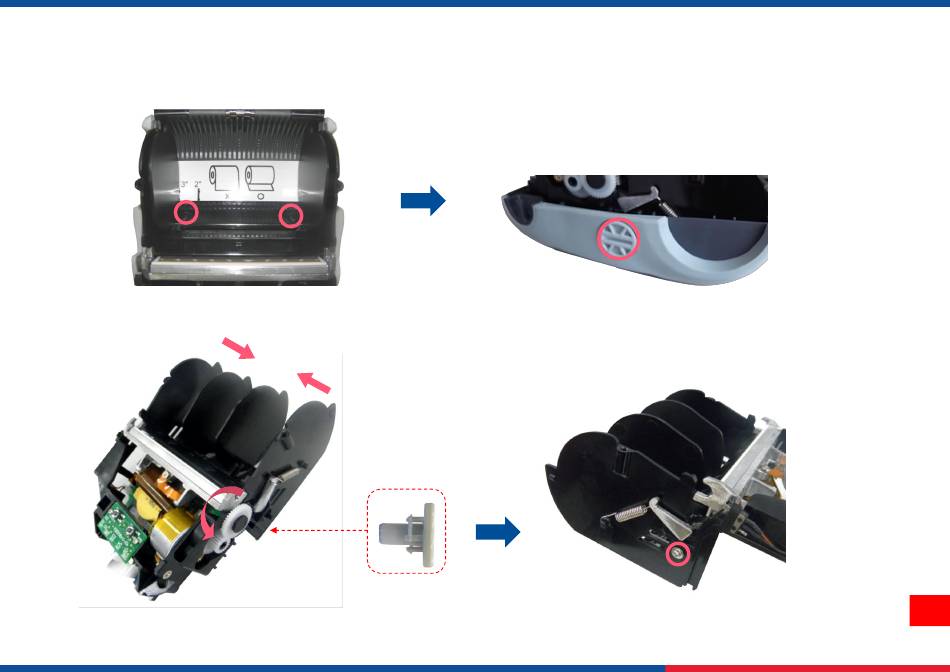

3.4 Replacing the Keys Control Board

1.
Remove two screws and media holder adjustment knob.
2.
Take the interior mechanism from the printer bottom cover.
3.
Plug the media holder adjustment knob to rotate the media holder to the closest position and remove a screw on the other side.
.
11
