SPARK V ATMEGA16 Hardware Manual

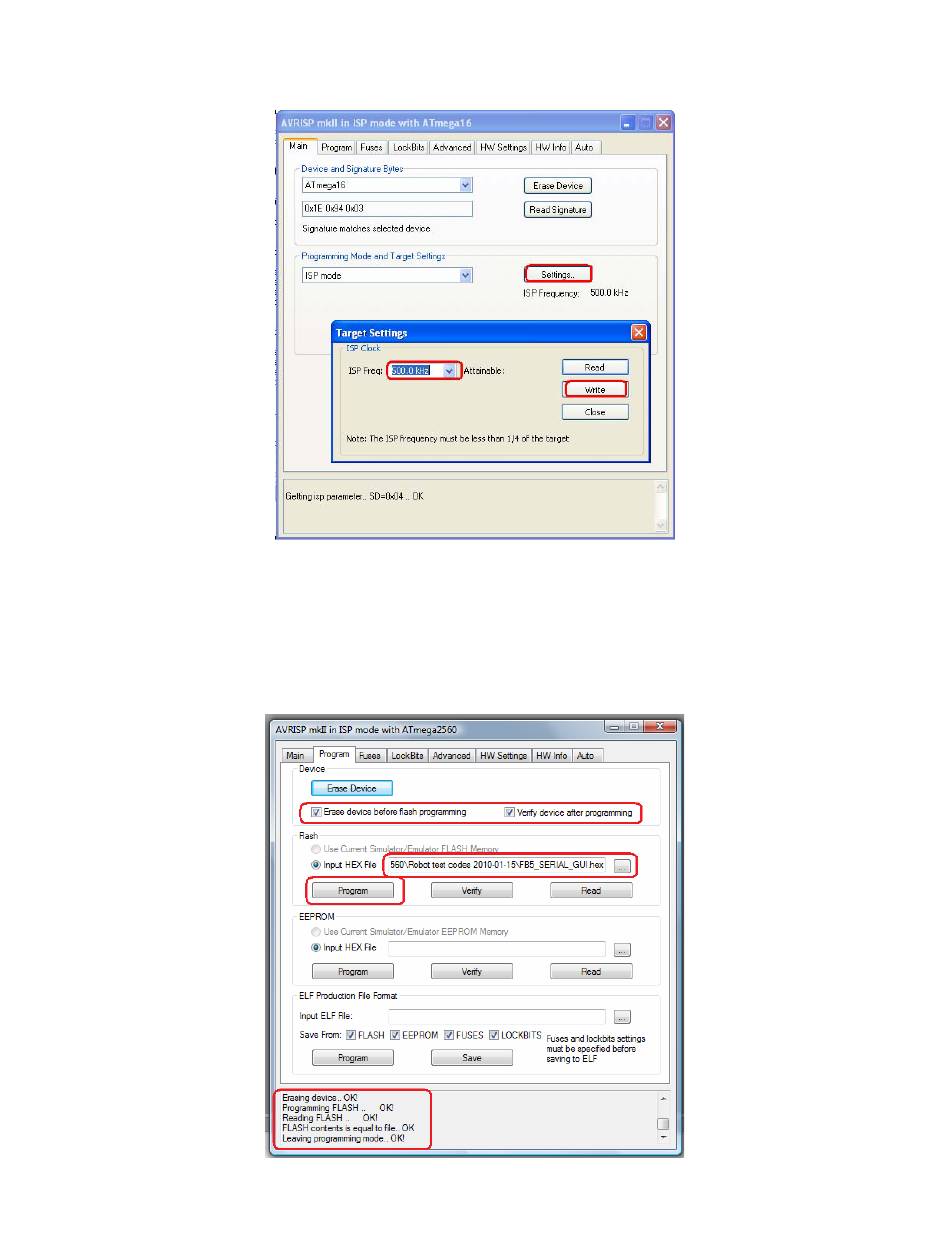

If ISP does not work properly then try to reduce the ISP frequency and try it again.
Figure 4.68: Changing ISP frequency if required
Step 5: Go to "Program" tab.
Check on Erase device before programming and Verify device after programming check box.
Browse and select the desired hex file in the flash section
Press "Program" button
Look at the comments at the bottom to verify that hex file is loaded in the flash.
Figure 4.69
© NEX Robotics Pvt. Ltd. and ERTS Lab IIT Bombay, INDIA
82
