NEX ROBOTICS SPARK V ATMEGA16 Hardware Manual page 64

4.6.4 Identifying COM Port number of the USB to serial
To use terminal.exe or any other serial program for robot control we need to first identify
communication port which is generally referred as COM n, i.e. COM1 or COM2 etc. on which
USB to serial converter or wireless device is connected. Follow these steps to identify your COM
Port number.
Step 1:
Right Click My Computer and click on properties. System properties window will appear.
Step 2:
Click on the Device manager in the Hardware tab.
© NEX Robotics Pvt. Ltd. and ERTS Lab IIT Bombay, INDIA
SPARK V ATMEGA16 Hardware Manual

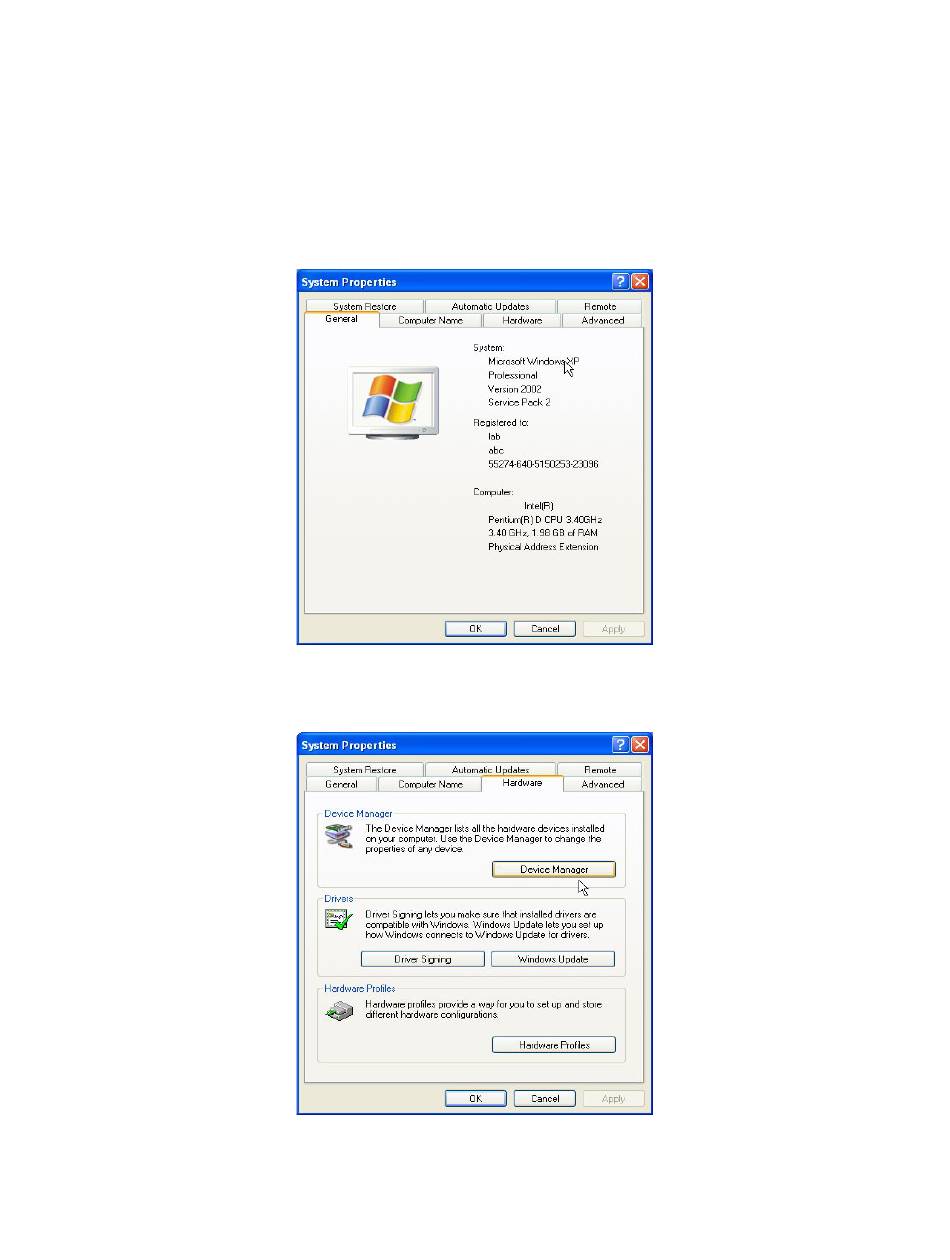

Figure 4.37
Figure 4.38
64
