3.10 Ultrasonic range sensors

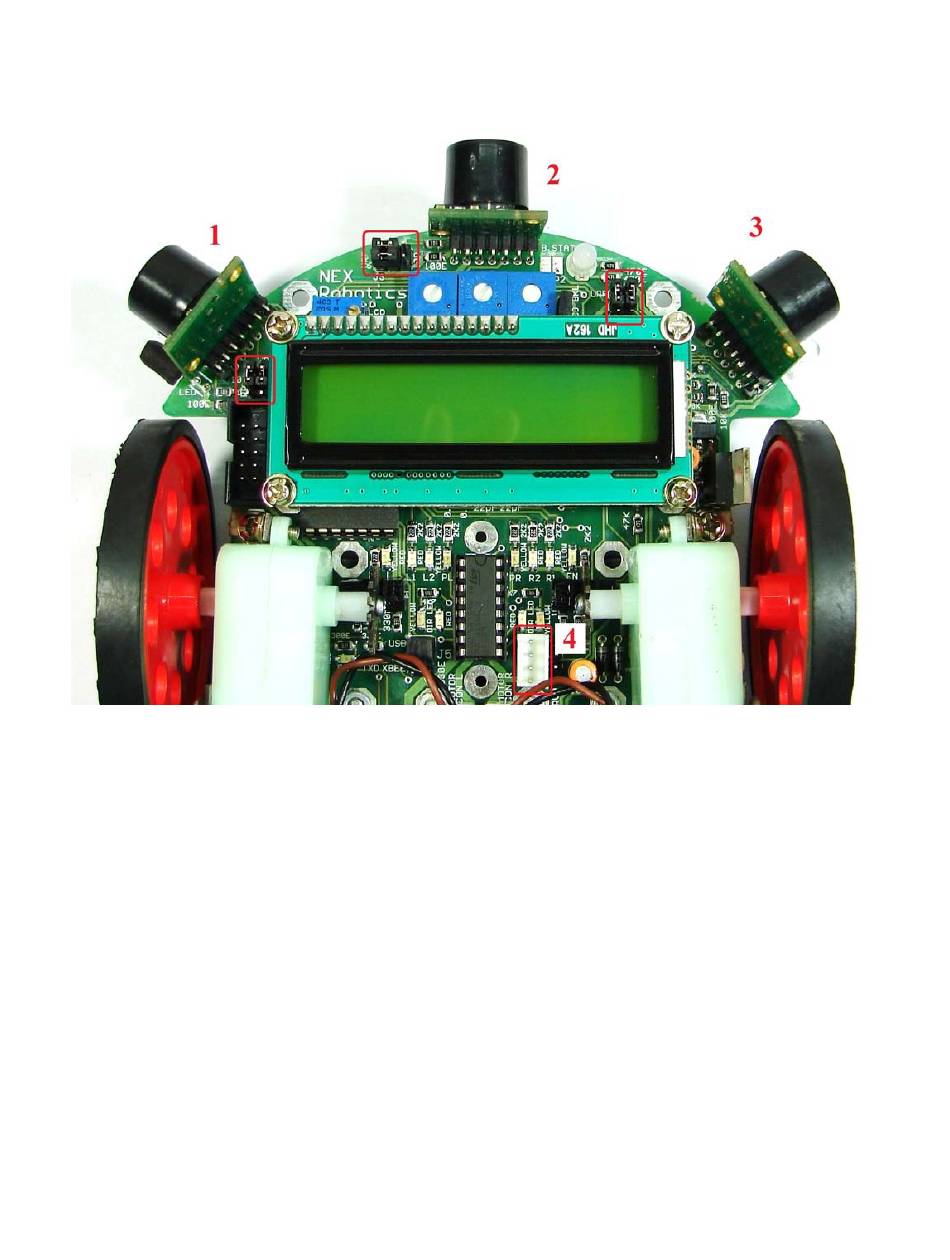

Figure 3.19: Ultrasonic range sensors and jumper settings to enable them
Spark V robot can be equipped with the 4 ultrasonic sensors from MaxBotix. Three sensors are
th
mounted just above the 3 IR proximity sensors. 4 Sensor can be mounted on the servo motor for
taking 180 degrees scan for map making (marked as 4). Each sensor can sense distance range
from 6 inches to 254 inches. Ultrasonic sensor transmits a narrow beam of ultrasonic pulse and
measures time taken for echo of the beam. It gives output proportional to time taken for the
ultrasonic beam to return echo from the obstacle.
Spark V robot supports EZ0 to EZ4 series of ultrasonic range sensors from MaxBotix. Sensor
gives out analog output with 1 inch resolution. It gives output voltage of 9.8mV per inch. After
powering up, for first 100mS sensor runs calibration cycle. After that it can give readings with
49mS interval.
Figure 3.19 shows locations of the ultrasonic sensors. They are numbered as 1, 2, and 3 from left
th
to right. Number "4" marks connector for the 4 ultrasonic range sensor which can be mounted
on the servo motor for taking 180 degrees range scan.
