Step 3:

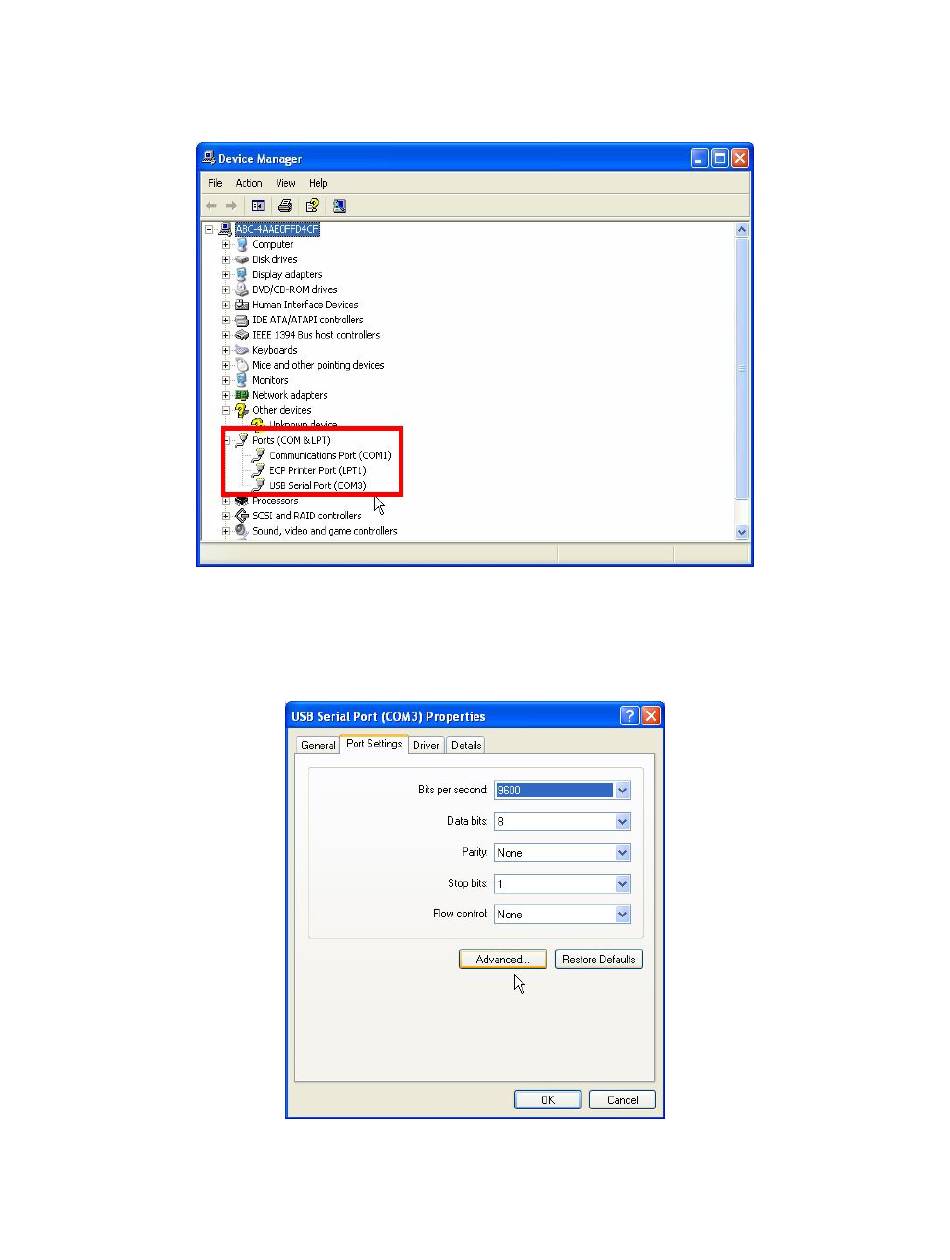

Expand Ports (Com & LPT) tree. COM Port number is mentioned in the parenthesis next to USB
Serial Port.
Step 4:
If the COM port number is greater than 10 Terminal will not be able to detect it. To resolve this
problem, change the port number by right clicking on "USB serial Port" and select properties.
In the Port settings tab click on the "Advanced" button, the following window will appear.
© NEX Robotics Pvt. Ltd. and ERTS Lab IIT Bombay, INDIA
SPARK V ATMEGA16 Hardware Manual
Figure 4.39
Figure 4.40
