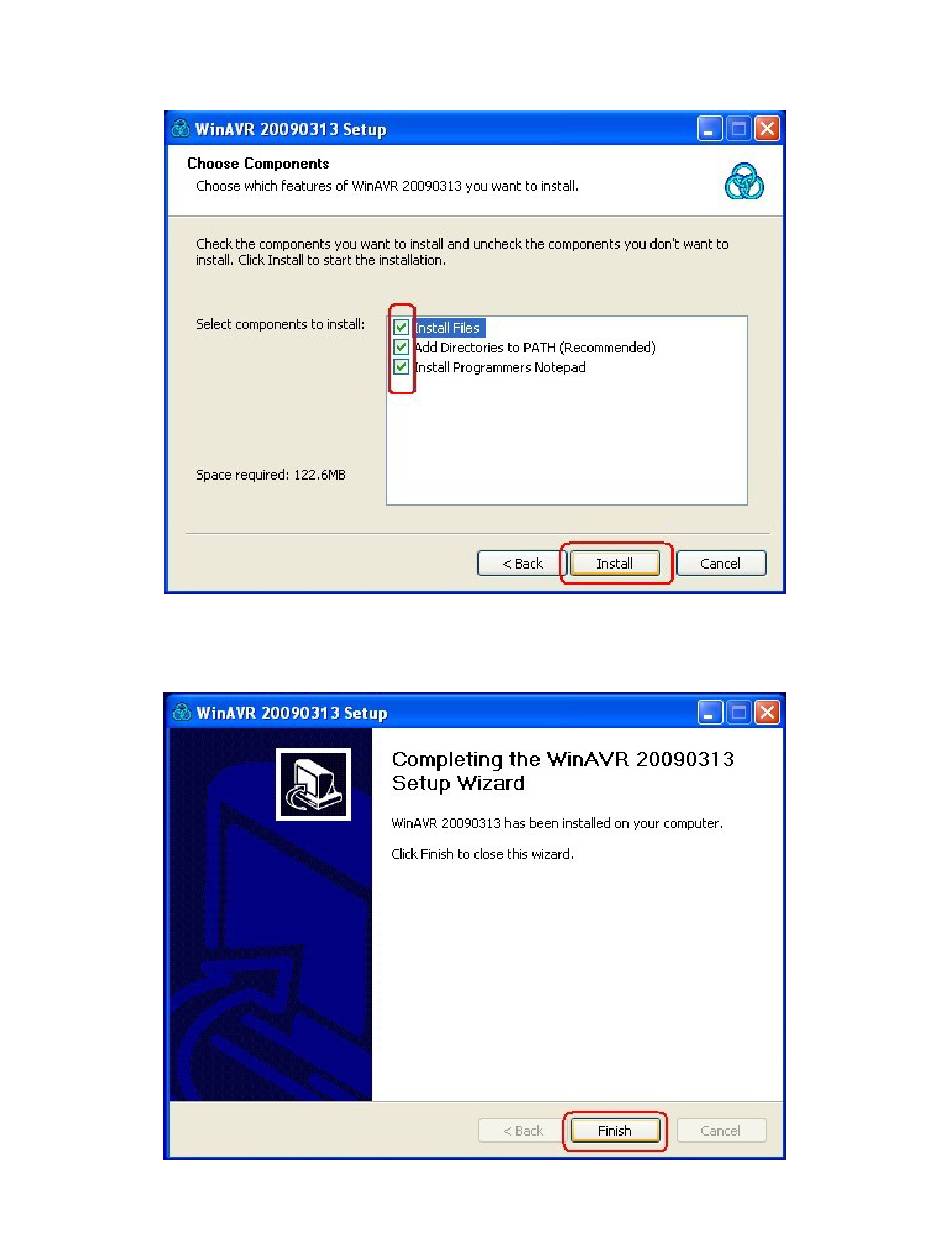

Select all the components and press "Install".
Click "Finish" to complete WIN AVR installation
© NEX Robotics Pvt. Ltd. and ERTS Lab IIT Bombay, INDIA
SPARK V ATMEGA16 Hardware Manual
Figure 4.6
Figure 4.7
46
