SPARK V ATMEGA16 Hardware Manual

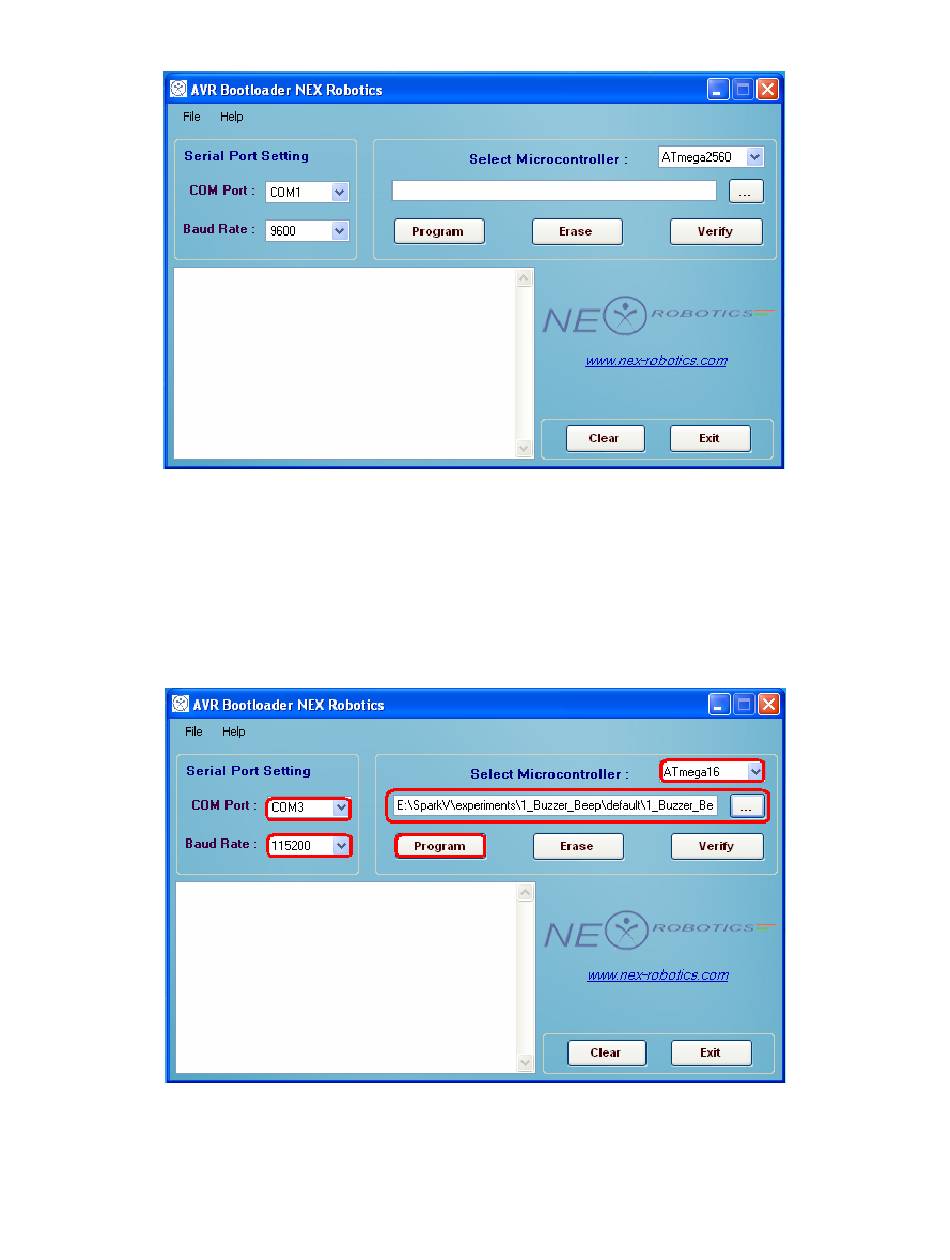

Figure 4.46
Step5:
Identify the COM port used by the USB port as mentioned in the section 4.6.4
Select the COM port, in this case COM3 is selected.
Set he baud rate at 115200bps
Select Microcontroller as Atmega16
Select the .hex file to be loaded by clicking on the brows button
Figure 4.47
