SPARK V ATMEGA16 Hardware Manual

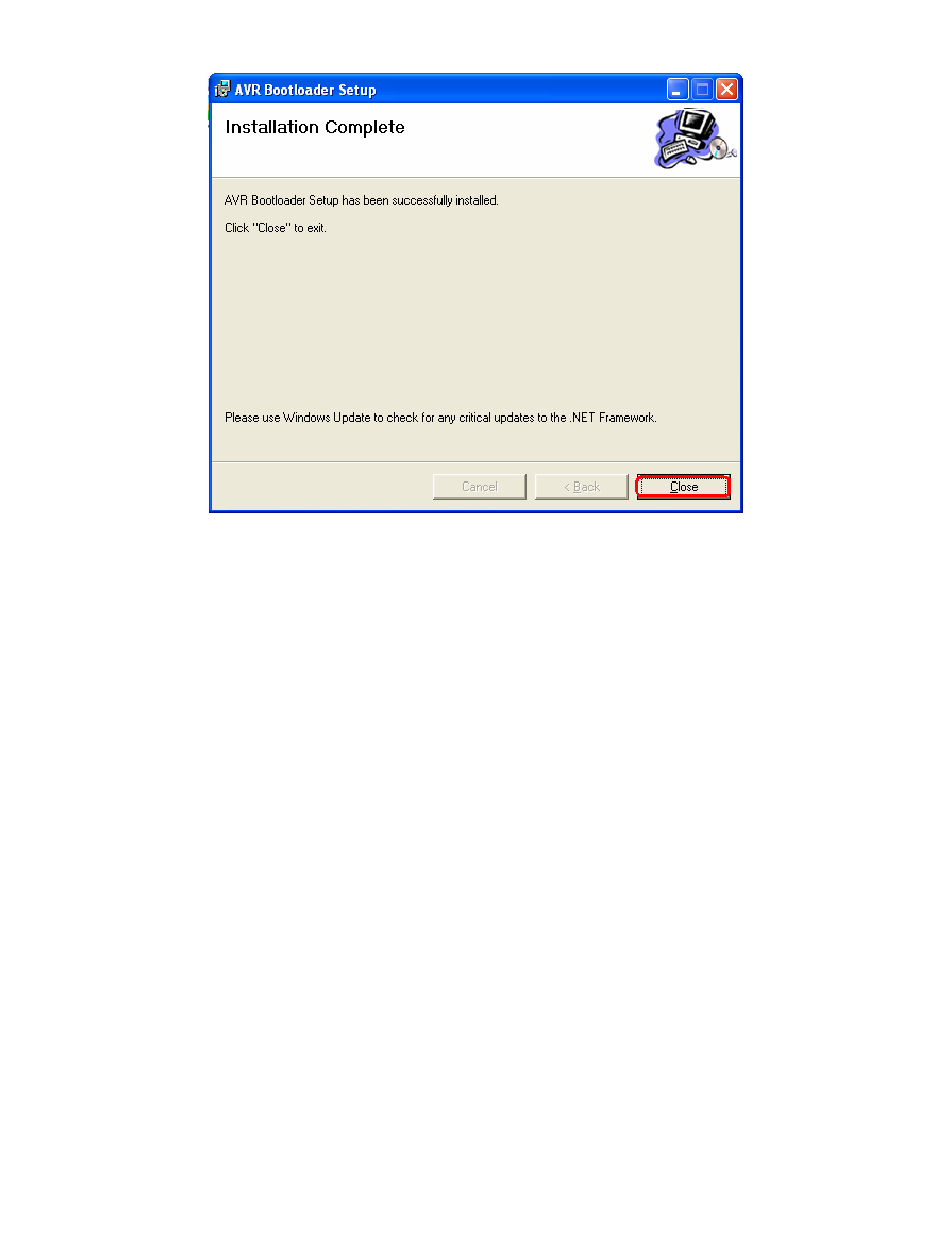

Figure 4.45
Click on the close button and the installation is complete. Now you can use the Boot loader.
4.6.6 Using Boot loader
Step1: Turn on the robot.
Step2: Connect a USB cable between the USB port on your PC and the USB connector on
SPARKV Robot.
Step3: Enter in to boot load mode by keeping the BOOT switch pressed and then press and
release RESET switch. Release BOOT switch after releasing reset.
Step4: To start the Bootloader you can click on the desktop icon which is created while
installation or you can open it by going to "Start" menu using following path.
"C:\Program Files\Nex Programmer\AVR Bootloader Setup\"
© NEX Robotics Pvt. Ltd. and ERTS Lab IIT Bombay, INDIA
68
