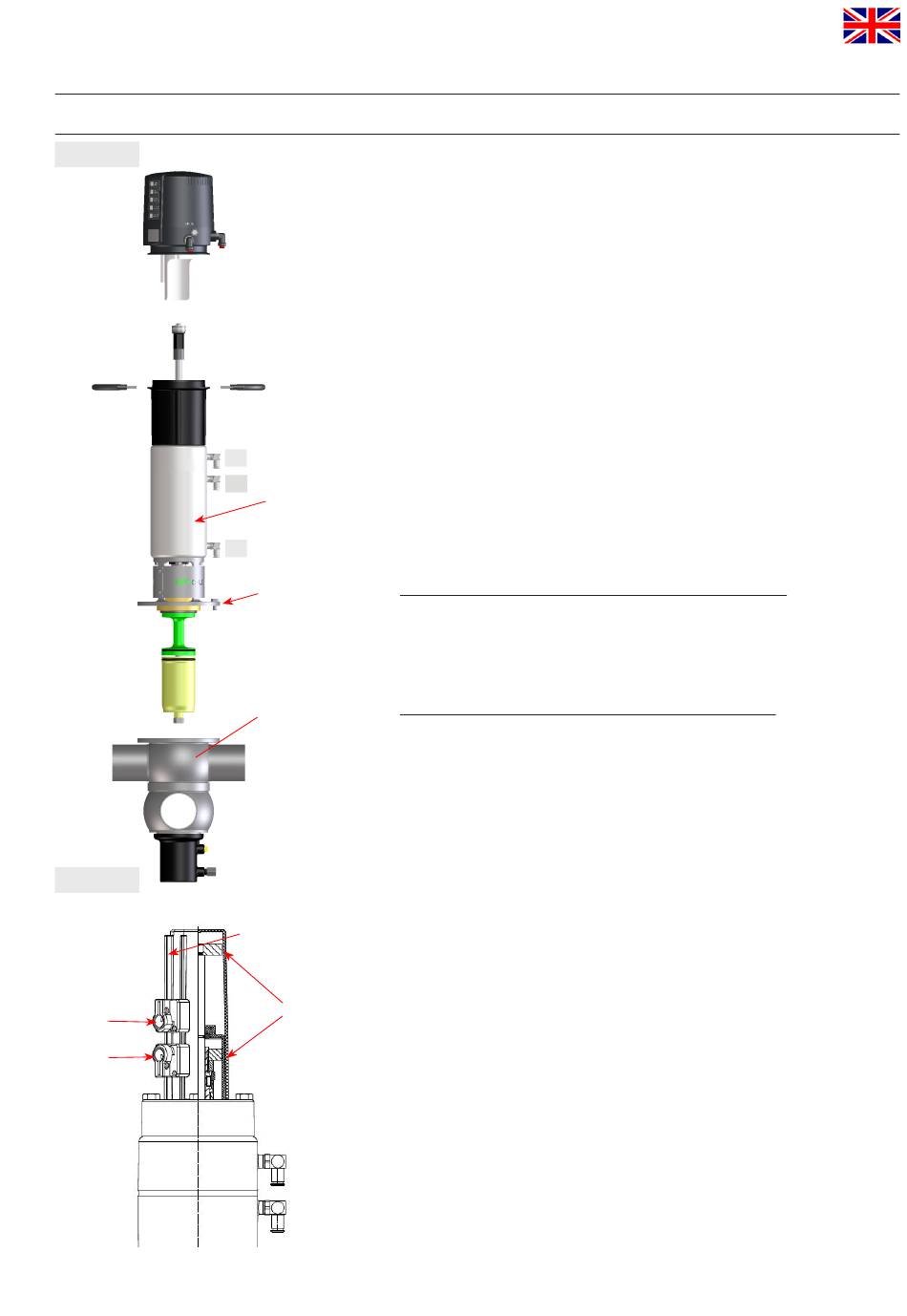

D4 / D4 SL with valve position indication
valve
open
valve
closed
Double Seat Mix Proof Valve
APV DELTA D4 / D4 SL
Instruction Manual: GB - rev. 3
11. Service Instructions
11.4.

Installation of the valve insert

1. Carefully place the valve insert in the valve housing (1) until the
screw stops.
2. Remove the jacking screw and carefully press the valve insert into
the housing (1).
3. Screw in the hex. screws (27) and fasten them crosswise.
4. Place the control unit on the adapter. Make sure that the control unit
is centered on the adapter.
5. Place the clamp ring and fasten it with the screws.
6. Assemble the compressed air lines.
D4 Valve:
3
D4 SL Valve:
1
valve
insert
2
7. Check the valve position indicators:
jacking
Closed valve position feedback – sensor 1 controlled
screw
To adjust Hall sensor 1, ensure that the valve is in the closed
position, the solenoid / manual override are not activated. Turn
adjustment screw 1 into the required position. The LED "Valve
Closed" lights up.
Open valve position feedback – sensor 2 controlled
1
To adjust Hall sensor 2, first activate the solenoid valve 1, either
manually or electrically. Then turn adjustment screw 2, to adjust
the open valve position and the corresponding feedback. When it
reaches the required position, the LED "Valve Open" lights up.
Observe the switching hysteresis of the Hall effect sensors!
Therefore, adjust the switch point of the sensors with overlap in
order to permit small variations. We recommend additional 2 x 360°
turns of the adjustment screw.
8. Design with proximity switch holder:
prox. switch holder
Set the proximity switch holder in position and fasten it with
the screws. Check to see if the "Valve Closed" or "Valve Open"
message appears. Re-position the proximity switch if required.
operating cams
Air connection 1:
Air connection 1:
Air connection 2:
Air connection 3:
GB
to open valve
to open valve
to lift upper shaft
to lift lower shaft
