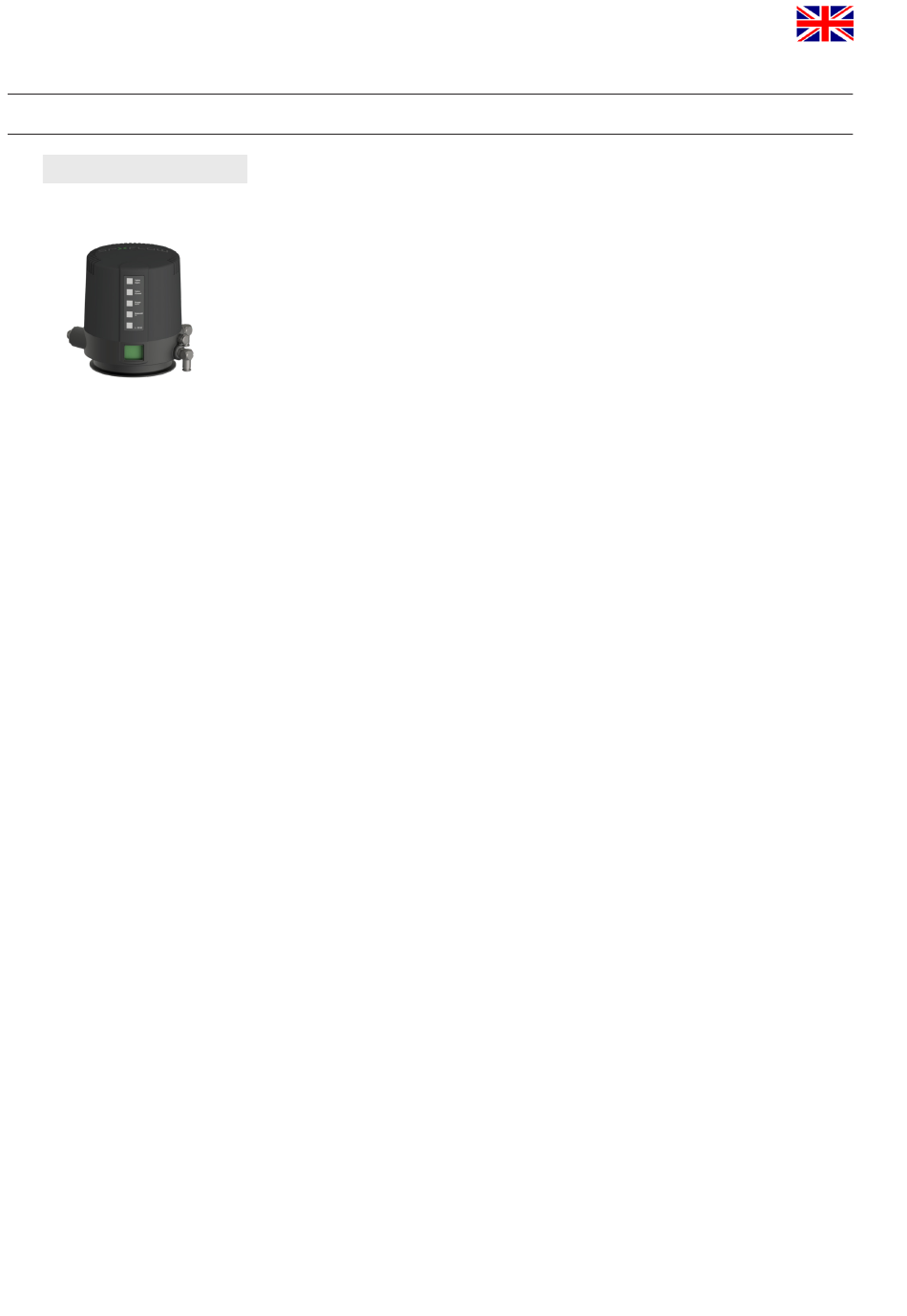

CU4 control unit
10
5.

Control Units / Valve Position Indication

5.1.

Control unit and adapter

An adapter is required to assemble the control unit on the D4/D4 SL
valve.
All CU4's are available in communication protocols:
- AS-I
- Direct Connect
- IO-link
- AS-I 5
For available control units and adapters, see spare part list:
RN 500.047.01, RN 500.047.03, RN 501.047.01, RN 501.047.03
5.2.

Valve position indication

Proximity switches to signal the closed and open position of the
valve can be installed at the proximity switch holder.
We recommend using one of these standard types:
three-wire proximity switch
operating distance: 5 mm
diameter:
operating voltage:
pnp pulse-shifting, closing function
"non-flush" installation
Recommendation:
Proximity switch 24V DC, PNP, 11 mm DIA. (5 m cable): H16223
Proximity switch 24V DC, PNP, 11 mm DIA. (cable box): H16432
If the customer decides to use valve position indicators other than
those listed above, SPX FLOW cannot assume any liability for the
functionality of the valve.
11 mm
10–30 V DC
GB
Double Seat Mix Proof Valve
APV DELTA D4 / D4 SL
Instruction Manual: GB - rev. 3
