Operating Basics: Making Measurements
Visual carrier
level
Outline indicates
that the low chan-
a
Function keys are
assigned to presets
FM DEV
VISUAL
(offset +0.0 )
FM DEV
1069.25 MHz
ee
LOW C: 76 | MID HIGH HIGH
CHAN 534.03 | CHAN PILOT CHAN
%

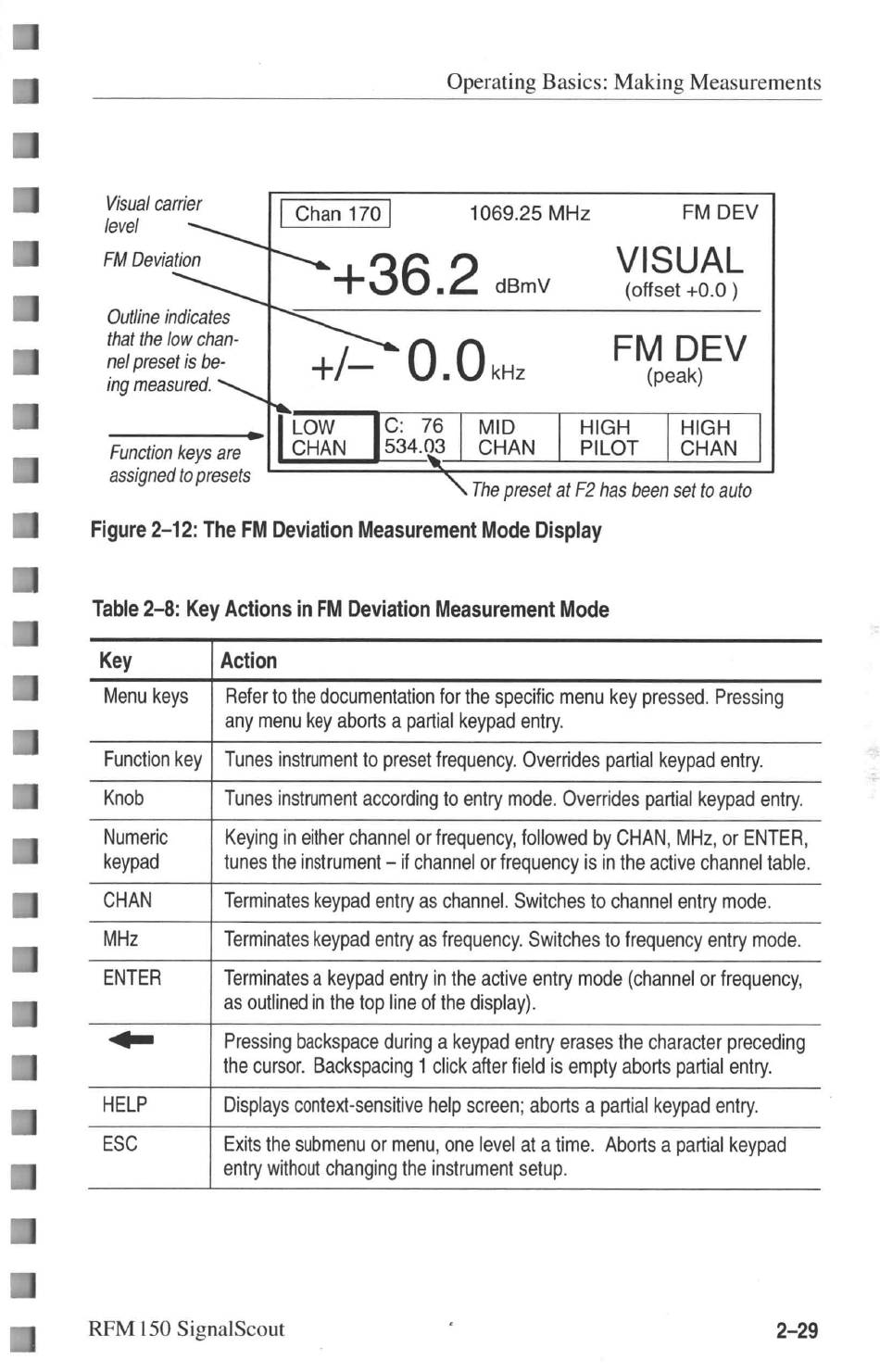

Figure 2-12: The FM Deviation Measurement Mode Display
Table 2-8: Key Actions in FM Deviation Measurement Mode
Action
Refer to the documentation for the specific menu key pressed. Pressing
any menu key aborts a partial keypad entry.
Function key Tunes instrument to preset frequency. Overrides partial keypad entry.
Tunes instrument according to entry mode. Overrides partial keypad entry.
Numeric Keying in either channel or frequency, followed by CHAN, MHz, or ENTER,
keypad tunes the instrument - if channel or frequency is in the active channel table.
CHAN Terminates keypad entry as channel. Switches to channel entry mode.
MHz Terminates keypad entry as frequency. Switches to frequency entry mode.
ENTER Terminates a keypad entry in the active entry mode (channel or frequency,
as outlined in the top line of the display).
qa Pressing backspace during a keypad entry erases the character preceding
the cursor. Backspacing 1 click after field is empty aborts partial entry.
HELP Displays context-sensitive help screen; aborts a partial keypad entry.
ESC Exits the submenu or menu, one level at a time. Aborts a partial keypad
entry without changing the instrument setup.
