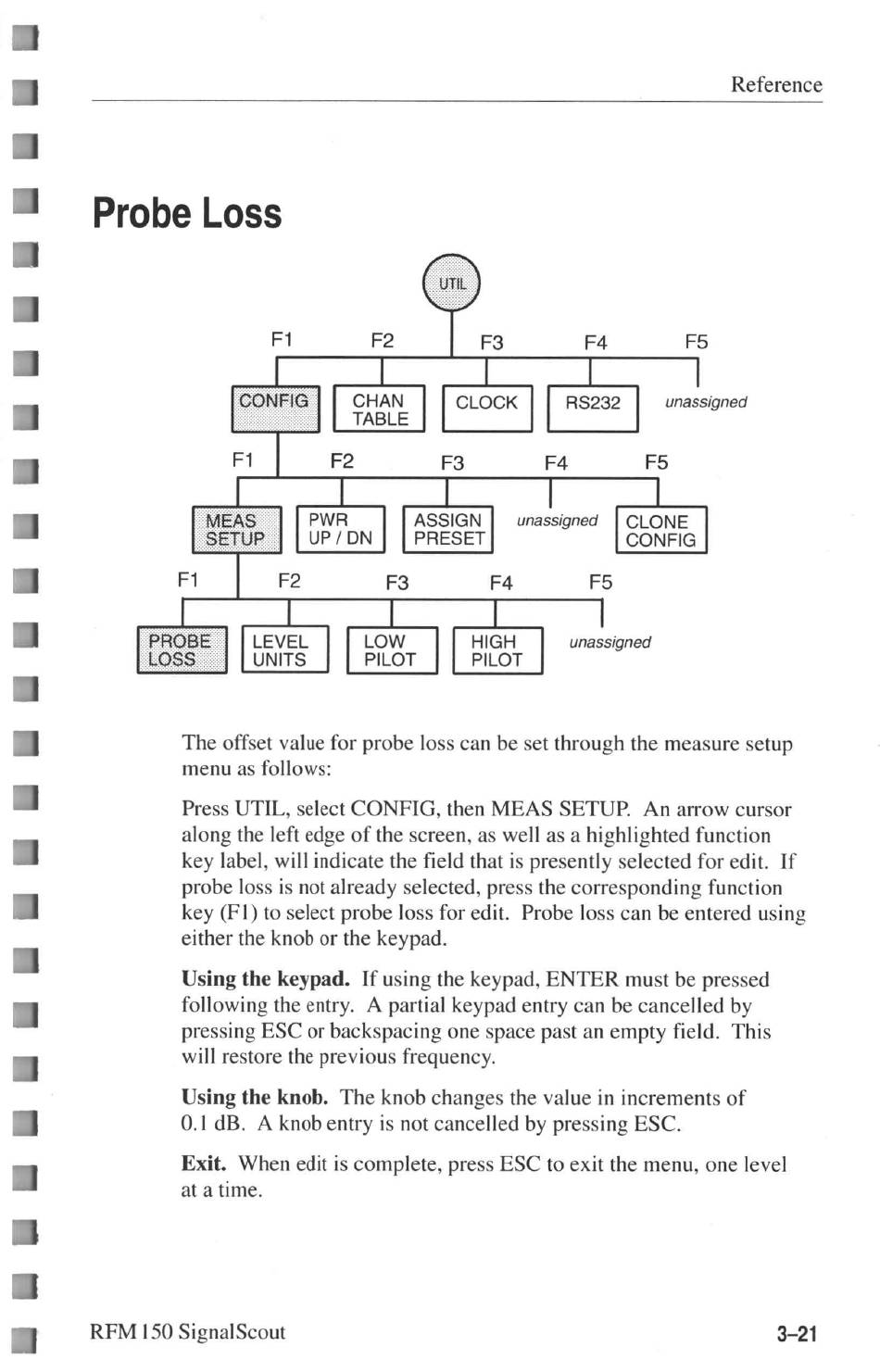

Tektronix SignalScout RFM150 User Manual page 105

Reference
Probe Loss
|
CONFIG CHAN CLOCK RS232 unassigned
F2 F3 F4 F5
PWR ASSIGN unassigned | CLONE
F3 F4 F5
LOW HIGH unassigned
PILOT PILOT
The offset value for probe loss can be set through the measure setup
menu as follows:
Press UTIL, select CONFIG, then MEAS SETUP. An arrow cursor
along the left edge of the screen, as well as a highlighted function
key label, will indicate the field that is presently selected for edit. If
probe loss is not already selected, press the corresponding function
key (FI) to select probe loss for edit. Probe loss can be entered using
either the knob or the keypad.
Using the keypad. If using the keypad, ENTER must be pressed
following the entry. A partial keypad entry can be cancelled by
pressing ESC or backspacing one space past an empty field. This
will restore the previous frequency.
Using the knob. The knob changes the value in increments of
0.1 dB. A knob entry is not cancelled by pressing ESC.
Exit. When edit is complete, press ESC to exit the menu, one level
at a time.
RFM 150 SignalScout 3-21
