Reference
Outline cursor indi-
cates selected ———— [gS he EIXED
channel table. This
table will be acted
upon when
tion key is pressed.
ion software product, CSS150, additional fields can also be edited.)
Table 3-1 defines all the fields that can be edited through this menu
as well as those that are edited through the CSS 150.
Select channel. Channel tables are edited one channel at a time. To
change the channel being displayed/edited, select SELECT CHAN.
The arrow cursor will move up to the channel line, and the channel
number can be tuned with the knob or by keypad entry followed by
CHAN, MHz, or ENTER. You can only tune to channels that are
stored in that channel table. If other entries are attempted, an error
message is displayed and the present channel does not change.
Select field. In the edit channel menu, an arrow cursor along the left
side of the screen indicates the selected field. This field can be
edited with the knob (or keypad for amplitude offset). To change the
selected field, select SELECT FIELD, repeating as necessary to
reach the desired field.
Copy to end. Selecting COPY TO END copies the value of the
selected field (indicated by the arrow cursor position) to all channels
from the current channel to the end of the table. After the key is
pressed, a confirmation screen will appear. You must select YES to
copy. To return to the edit channels menu without copying, select
NO or press ESC.
ACTIVE TABLE: US STD
TBL # NAME TYPE
1 US STD FIXED
4 JAPANM FIXED
5 EUR BG FIXED
7 MY TBL CUSTOM
8 YOUR TBL_ CUSTOM
ACTIVE | CHANS | TABLE ALL

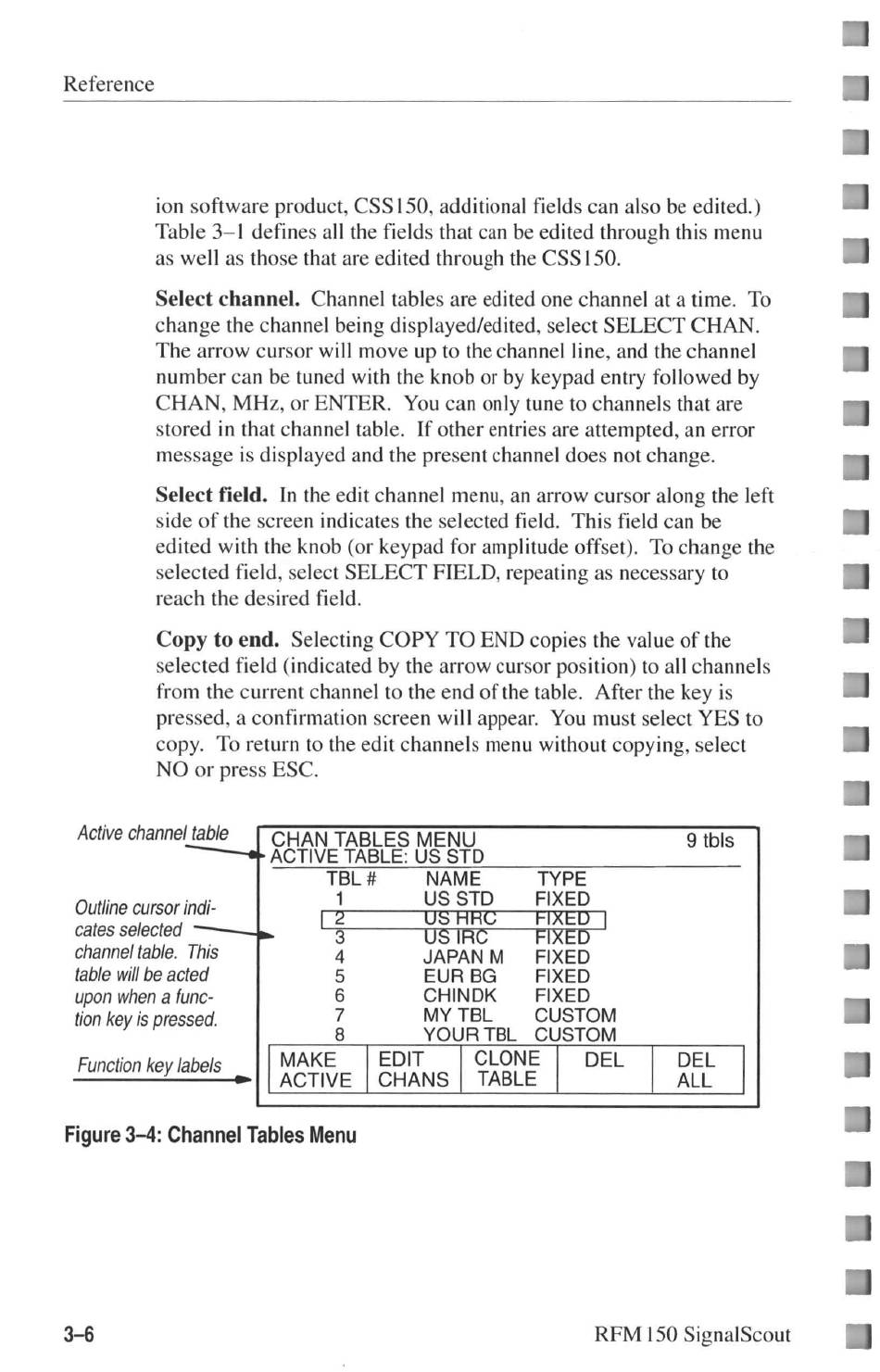

: Channel Tables Menu
