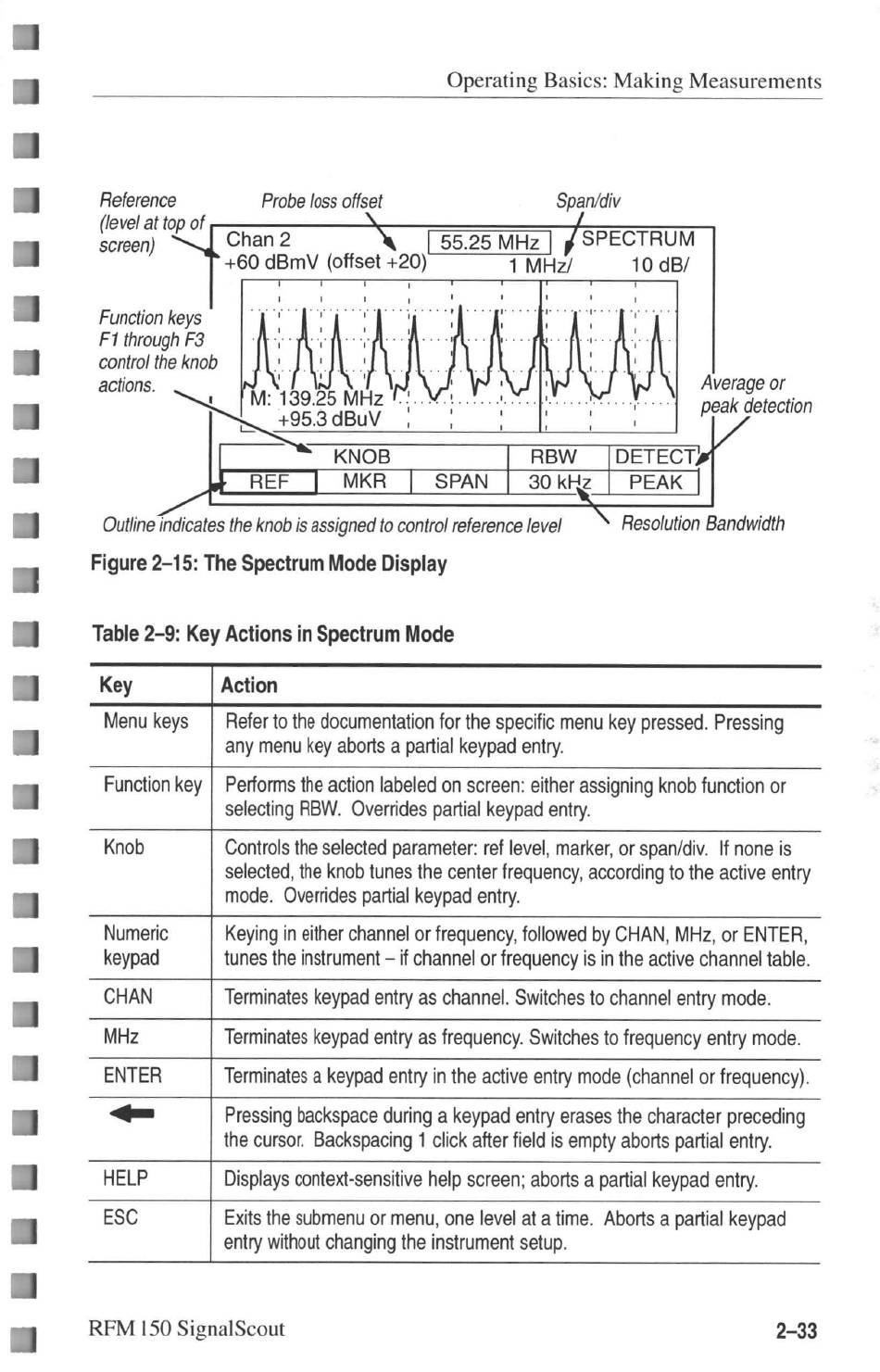

Table 2-9: Key Actions In Spectrum Mode - Tektronix SignalScout RFM150 User Manual

Operating Basics: Making Measurements
Reference Probe loss oliset Seana
+60 dBmvV (offset +20) 1 MHz/ 10 dB/
Function keys i ee ee ee fey fey Ge (ee tee re "T
actions. verage or
| KNOB RBW_ |DETECTP#
REF | MKR | SPAN | 30kHz [ PEAK |
%
Outline indicates the knob is assigned to control reference level \ Resolution Bandwiath
Table 2-9: Key Actions in Spectrum Mode
Key Action
Menu keys | Refer to the documentation for the specific menu key pressed. Pressing
any menu key aborts a partial keypad entry.
Function key | Performs the action labeled on screen: either assigning knob function or
selecting RBW. Overrides partial keypad entry.
Knob Controls the selected parameter: ref level, marker, or span/div. If none is
selected, the knob tunes the center frequency, according to the active entry
mode. Overrides partial keypad entry.
Numeric Keying in either channel or frequency, followed by CHAN, MHz, or ENTER,
keypad tunes the instrument — if channel or frequency is in the active channel table.
CHAN Terminates keypad entry as channel. Switches to channel entry mode.
MHz Terminates keypad entry as frequency. Switches to frequency entry mode.
ENTER Terminates a keypad entry in the active entry mode (channel or frequency).
<= Pressing backspace during a keypad entry erases the character preceding
the cursor. Backspacing 1 click after field is empty aborts partial entry.
HELP Displays context-sensitive help screen; aborts a partial keypad entry.
ESC Exits the submenu or menu, one level at a time. Aborts a partial keypad
entry without changing the instrument setup.
REM 150 SignalScout
