Active channel table,
selected through the
channel lables menu ~_ | lh UBetE MENU
Channelline——__y cuan:2 [$5.25 MHz NTSC
Sing etadian | (SCRAMBLED:[YES] NO
Ce a ved esi 'it AMPLITUDE OFFSET: 6.9 dB
DWELL TIME: SHORT | LONG
SKIP: YES
PREV NEXT | SELECT | SELECT] COPY
CHAN CHAN' | CHAN FIE!.D TO END
¢ f
Changes the channel' Moves cursor ar-/ Selects field to Copies the value of
by knob or keypad the end of the table

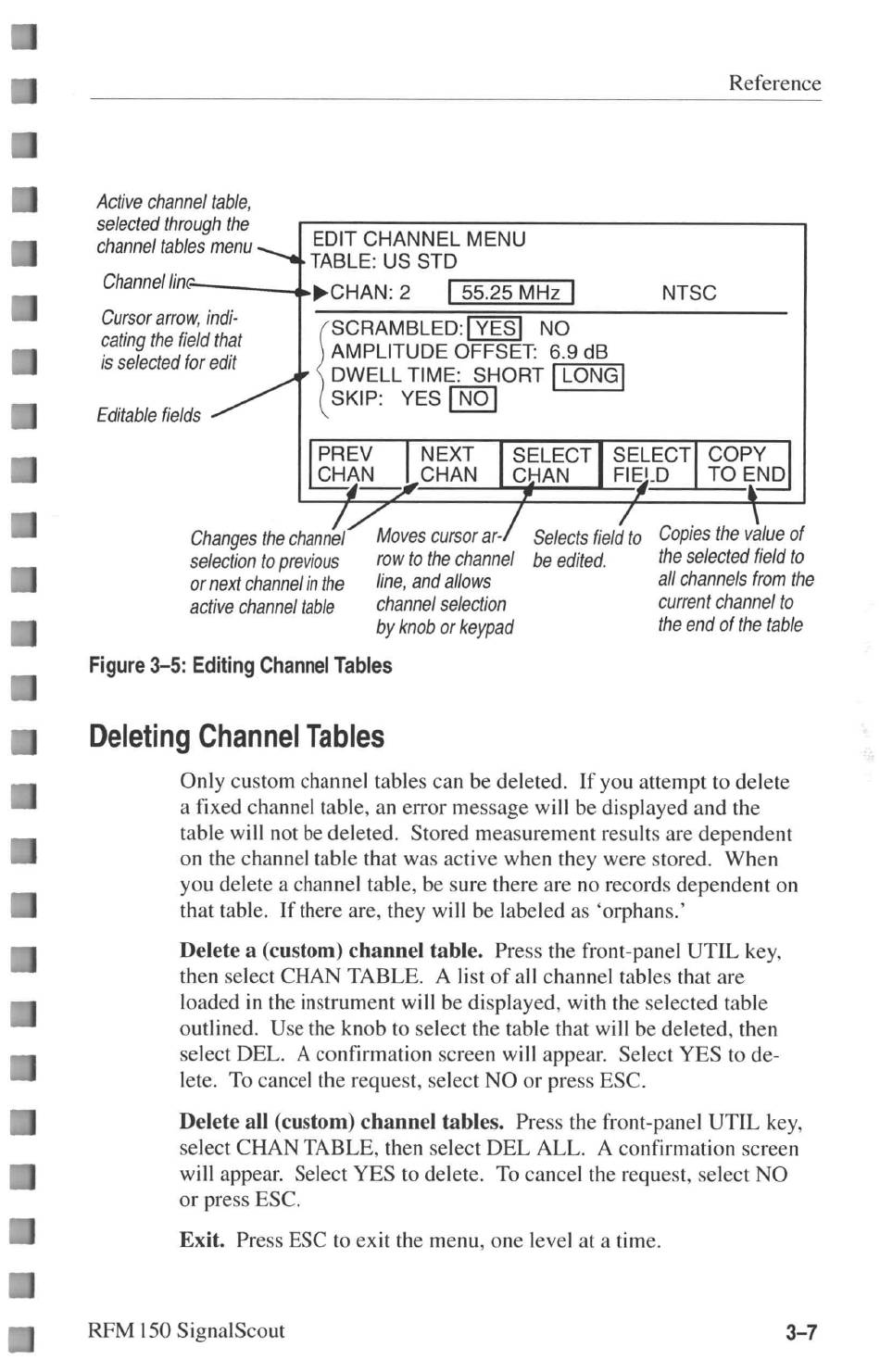

Figure 3-5: Editing Channel Tables
Deleting Channel Tables
Only custom channel tables can be deleted. If you attempt to delete
a fixed channel table, an error message will be displayed and the
table will not be deleted. Stored measurement results are dependent
on the channel table that was active when they were stored. When
you delete a channel table, be sure there are no records dependent on
that table. If there are, they will be labeled as 'orphans.'
Delete a (custom) channel table. Press the front-panel UTIL key,
then select CHAN TABLE. A list of all channel tables that are
loaded in the instrument will be displayed, with the selected table
outlined. Use the knob to select the table that will be deleted, then
select DEL. A confirmation screen will appear. Select YES to de-
lete. To cancel the request, select NO or press ESC.
Delete all (custom) channel tables. Press the front-panel UTIL key,
select CHAN TABLE, then select DEL ALL. A confirmation screen
will appear. Select YES to delete. To cancel the request, select NO
or press ESC.
Exit. Press ESC to exit the menu, one level at a time.
REM 150 SignalScout 3-7
