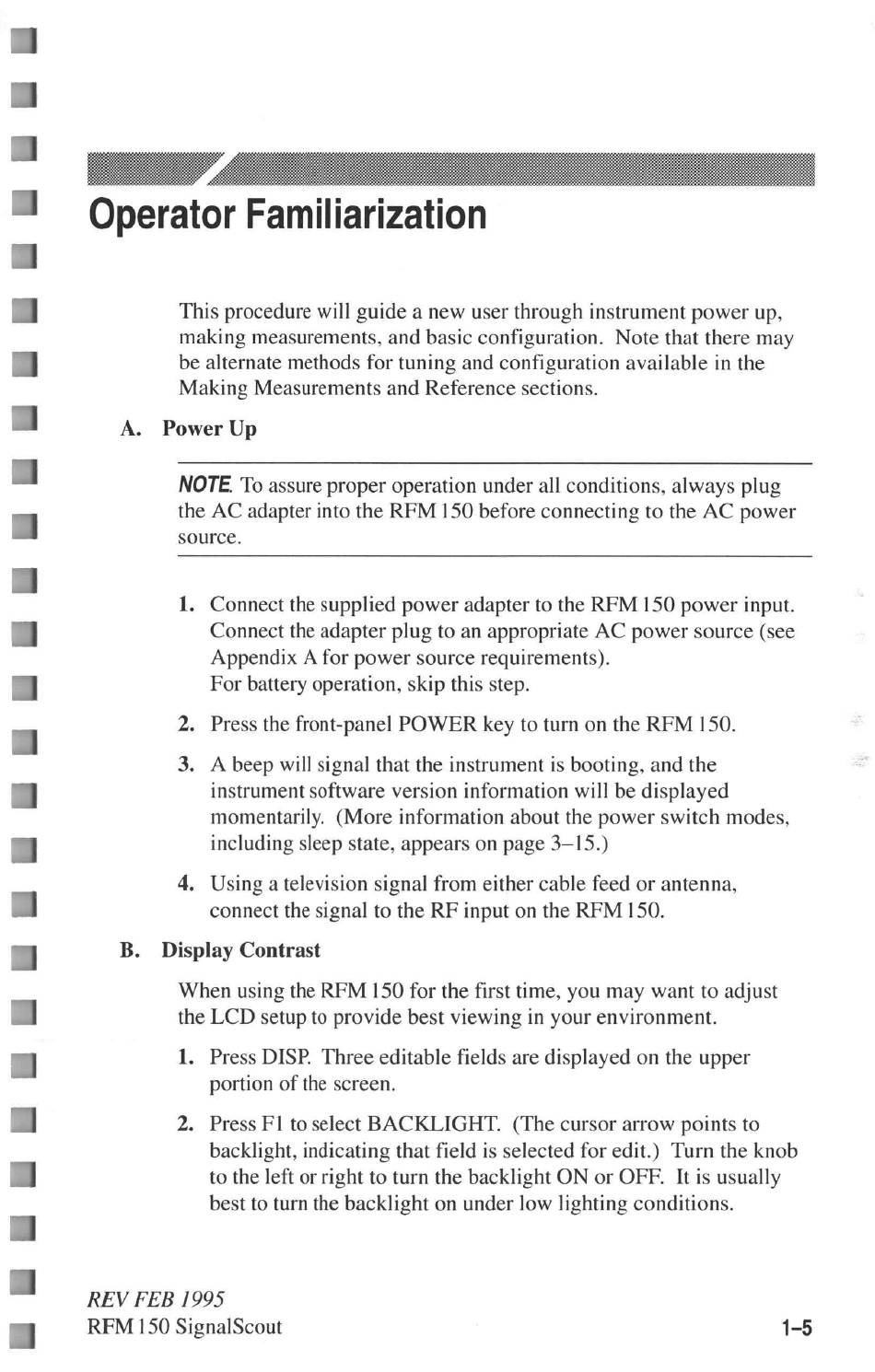

This procedure will guide a new user through instrument power up,
making measurements, and basic configuration. Note that there may
be alternate methods for tuning and configuration available in the
Making Measurements and Reference sections.
A. Power Up
NOTE. To assure proper operation under all conditions, always plug
the AC adapter into the RFM 150 before connecting to the AC power
source.
1. Connect the supplied power adapter to the RFM 150 power input.
Connect the adapter plug to an appropriate AC power source (see
Appendix A for power source requirements).
For battery operation, skip this step.
2. Press the front-panel POWER key to turn on the RFM 150.
3. A beep will signal that the instrument is booting, and the
instrument software version information will be displayed
momentarily. (More information about the power switch modes,
including sleep state, appears on page 3-15.)
4. Using a television signal from either cable feed or antenna,
connect the signal to the RF input on the RFM 150.
B. Display Contrast
When using the RFM 150 for the first time, you may want to adjust
the LCD setup to provide best viewing in your environment.
1. Press DISP. Three editable fields are displayed on the upper
portion of the screen.
2. Press Fl to select BACKLIGHT. (The cursor arrow points to
backlight, indicating that field is selected for edit.) Turn the knob
to the left or right to turn the backlight ON or OFF. It is usually
best to turn the backlight on under low lighting conditions.
REV FEB 1995
REM 150 SignalScout 1-5
