QIFD 0010 - QIFD 0080
52401-100, December 2000

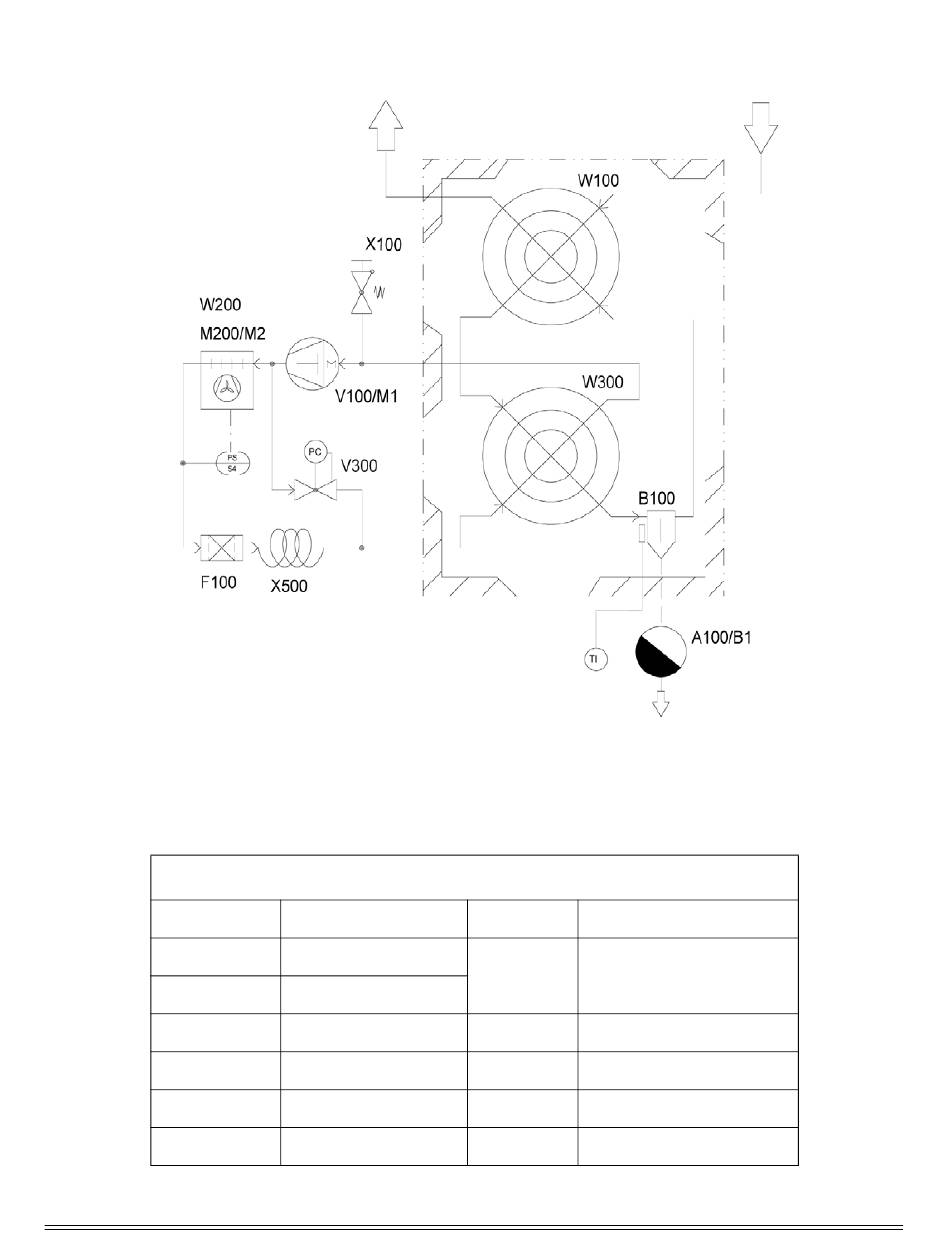

Fig. 2-8 P+I Diagram
Type-No. 433 - 439 -- Models QIFD 0010 - 0080
LEGEND:
Condensate Drain
Fluid Surge Drum
Filter Dryer
Fan Motor
Motor Compressor
Capacity Regulator
Service Valve
W100
Heat Exchanger
W300
Refrigeraant Heat
Exchanger
W200
Condenser
X500
Capillary Tube
PS/S4
Pressure Switch
TI
Dewpoint Thermometer
16
