Loss Condensate Drain (Model Qiwx) - Quincy Compressor QIFD 0010 Instruction Manual

No-Loss Condensate Drain (Model QIWX type 435 & 439)
QIFD 0010 - QIFD 0080
52401-100, December 2000
Dew Point Indicator
Refer to Fig. 2-2. QIFD refrigerated dryers are equipped with an analog
(standard) dew point indicator.

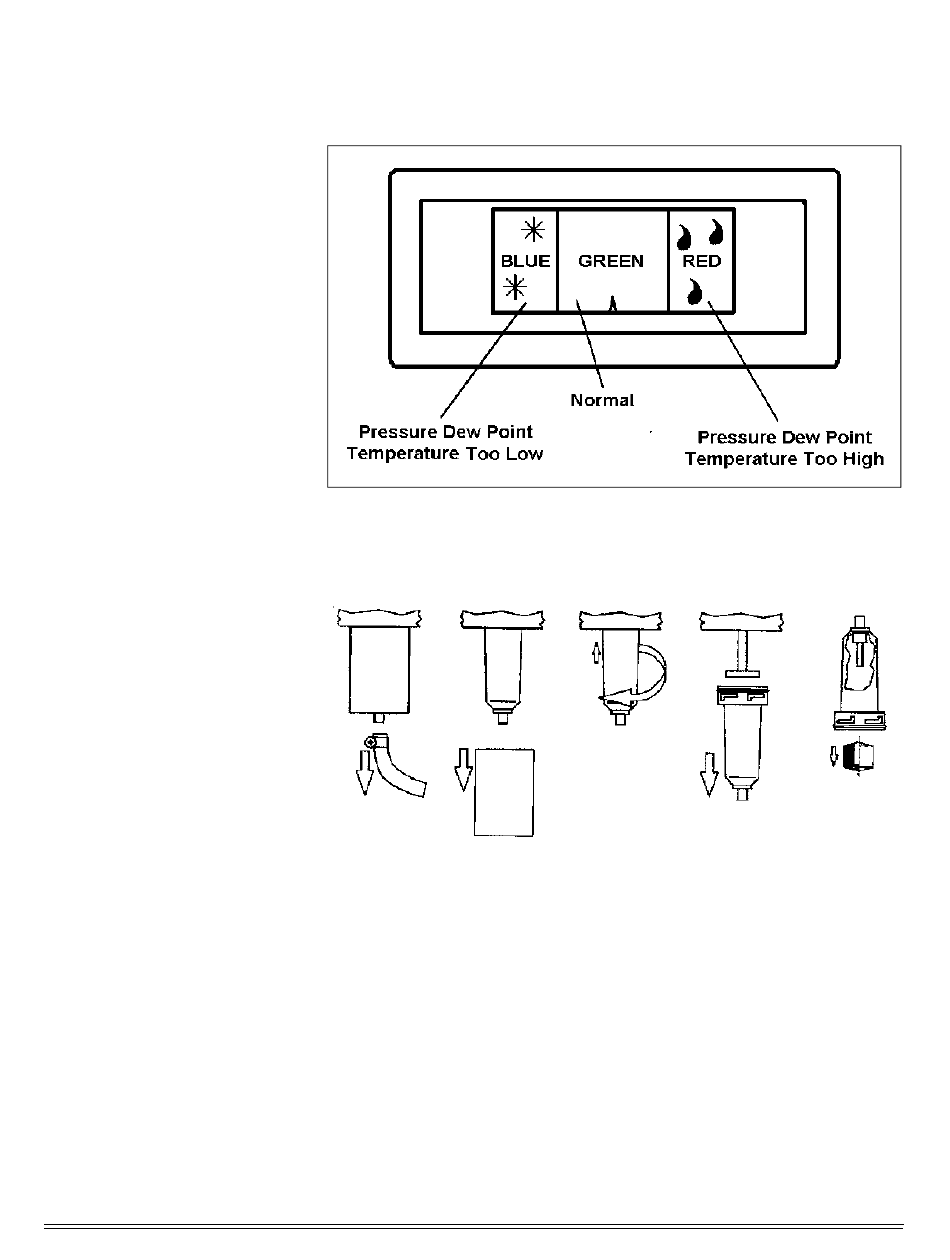

Fig. 2-2 Analog Dew Point Indicator
Fig. 2-3 Automatic Float Drain (type 433 & 434)
The customer is responsible for the safe and proper disposal (per EPA
regulations) of water and oil mixture emitted by the condensate drain.
Safety Instructions
• Installation of the unit should be performed by trained personnel qual-
ified for this work.
• Depressurize the unit before working on it.
