Components
QIFD 0010 - QIFD 0080
52401-100, December 2000
Refer to Fig. 2-1 for components of the dryer accessible from outside the
cabinet.

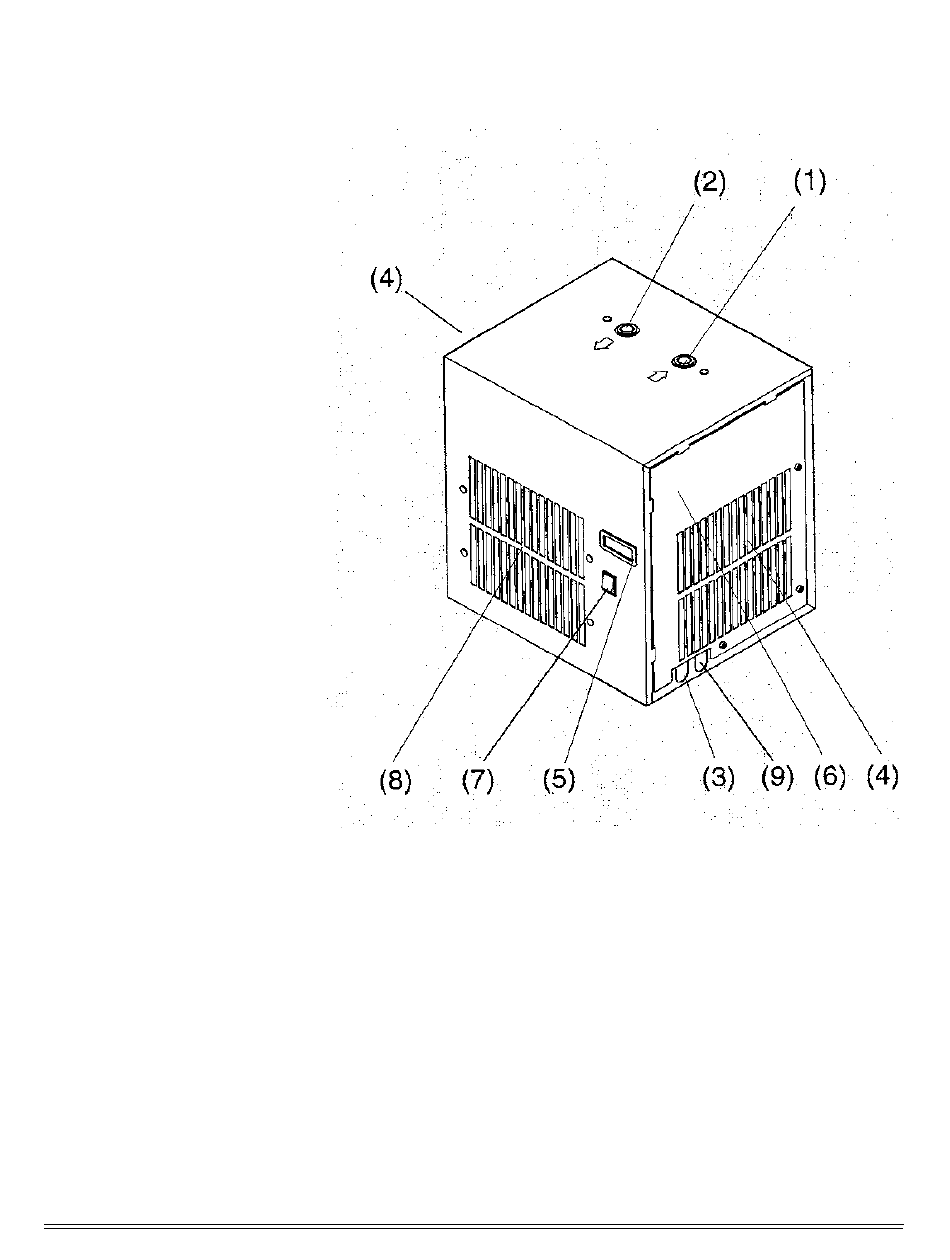

Fig. 2-1 Component Locations
1
Compressed-Air Inlet
2
Compressed-Air Outlet
3
Electric Connection
4
Cooling Air Outlet
5
Dew Point Indicator
6
Access for Service
7
Operation Switch
8
Cooling Air Inlet
9
Condensate Drain
8
3501 Wismann Lane, Quincy IL - 62305-3116
Quincy Compressor
