Connection of Condensate Drain

Cooling Water (Watercooled Models)

QIFD 0010 - QIFD 0080
52401-100, December 2000

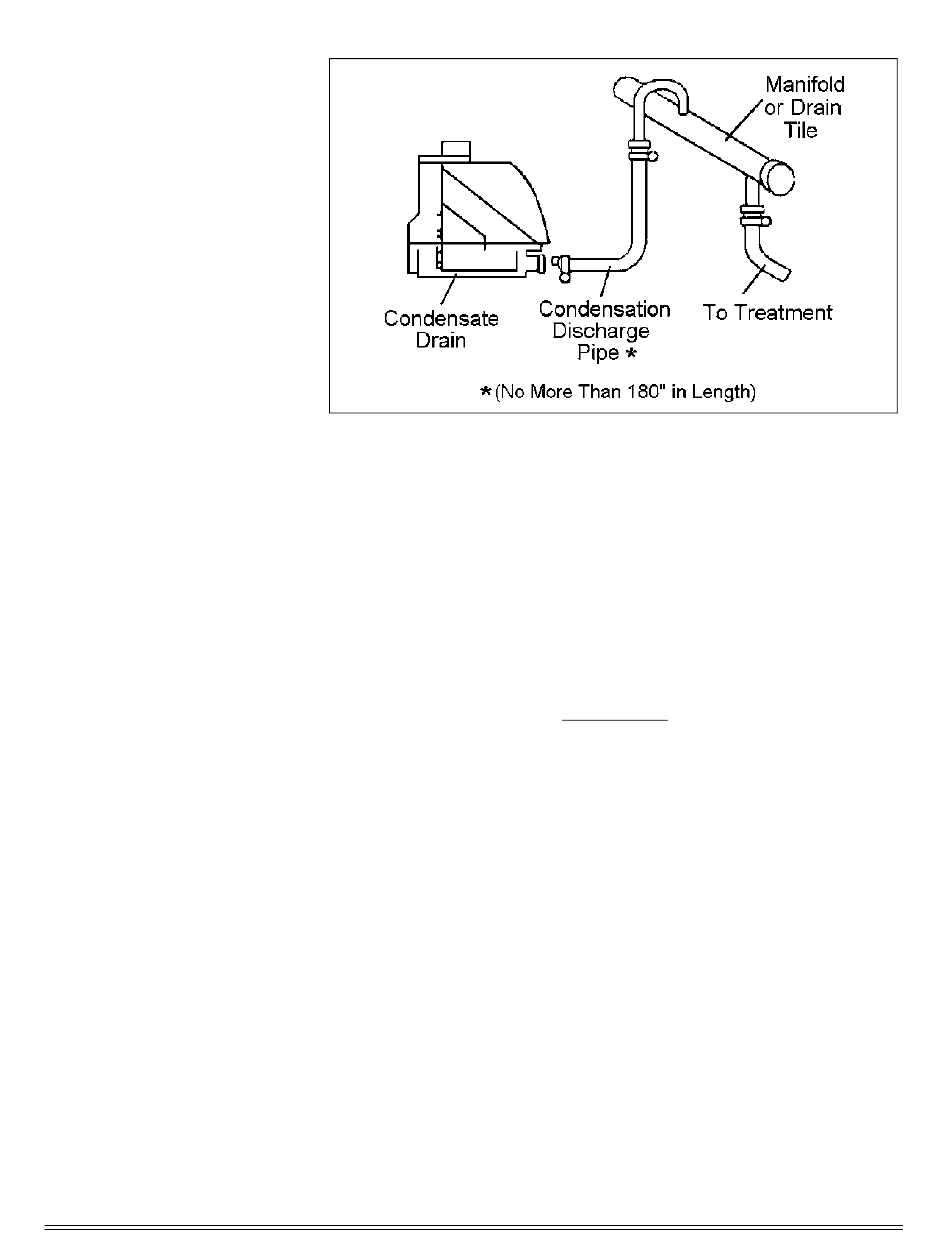

Fig. 2-6 Condensate Drain Piping
A minimum pressure of 29 psig is required for safe operation. The con-
densation discharge pipe must be fixed to the wall with a rising slope of
no more than 180 inches (4.57 M) length. Refer to "Condensate Drain
Piping," Fig. 2-6. The minimum operating pressure required will
increase by about 1.45 psig per 3 feet of level difference.
The cooling water pressure MUST NOT exceed 145 psig maximum.
Refer to "Component Locations", Fig. 2-1, page 8, Reference Numbers 9
and 10, for cooling water inlet and outlet connections.
