Memory Content - Icom IC-905 Reference Manual

REMOTE CONTROL
Remote control (CI-V) information
D Command formats

• Memory content

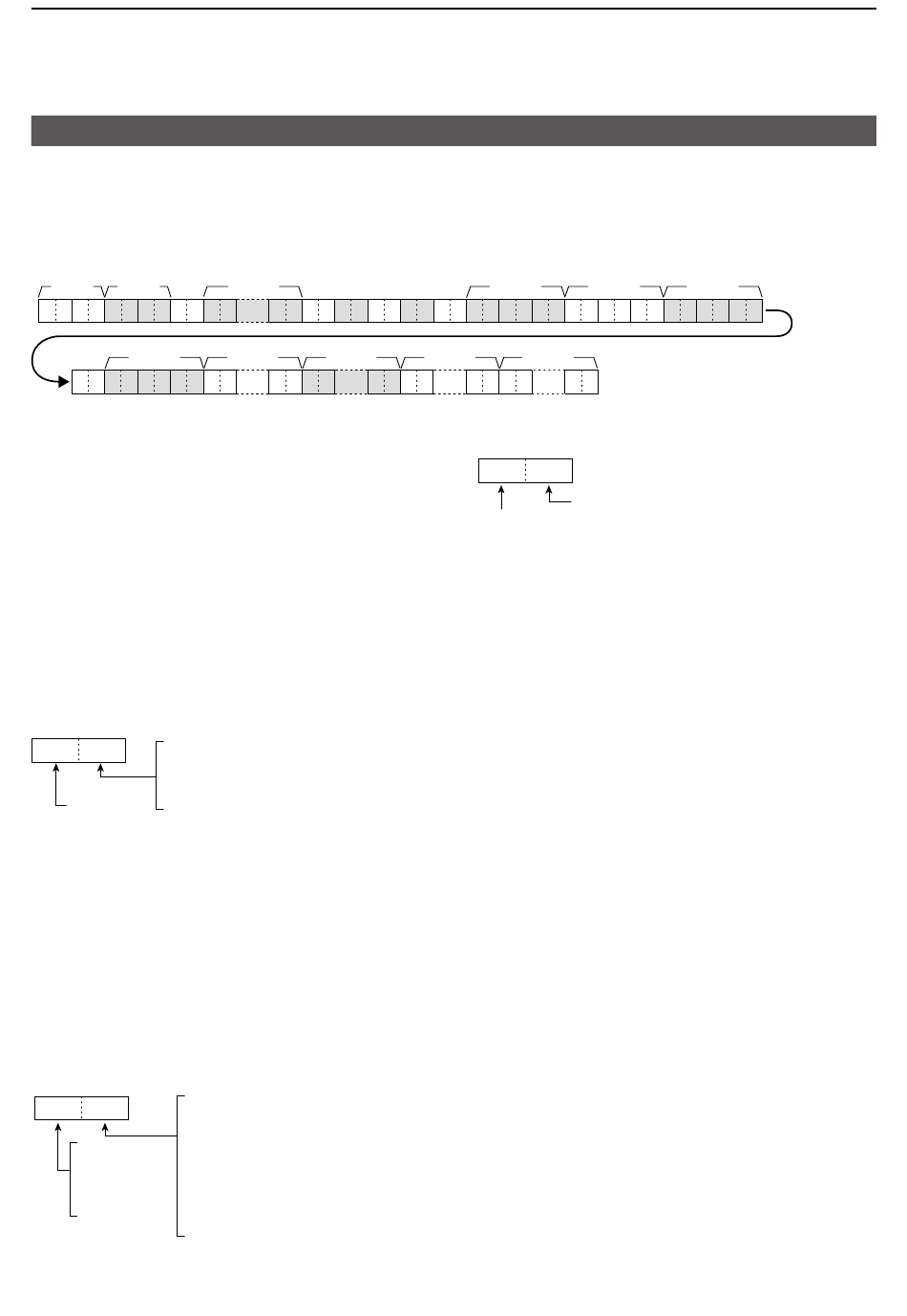

Command: 1A 00
1, 2 3, 4 5
X X X ...... X X X X X X X X X X X 0 X X X X X X
X X X X X X X X 0
26 ~ 28
25
X X X X X X X X
1, 2: Memory group number
00 00 ~ 00 99: Memory channel group
01 00: Call channel group
3, 4: Memory channel numbers
• When Memory channel group is selected,
00 00 ~ 00 99: 00 ~ 99
• When Call channel group is selected,
00 00, 00 01: 144 C1, C2
00 02, 00 03: 430 C1, C2
00 04, 00 05: 1200 C1, C2
00 06, 00 07: 2400 C1, C2
00 08, 00 09: 5600 C1, C2
00 10, 00 11: 10G C1, C2
5: Split and Select memory setting
5
0 X 0=OFF*
1= 1
2= 2
3= 3
Fixed
* Set 0 for Call channel�
6~10: Operating frequency setting
L See "Operating frequency�" (p� 16)
11, 12: Operating mode setting
L See "Operating mode�" (p� 16)
13: Data mode setting
1 byte data (XX)
00: Data mode OFF
01: Data mode ON
14: Duplex and Tone settings
14
0=OFF
X X
1=TONE
2=TSQL
0= OFF
Duplex
3=DTCS
1=
Duplex−
4=DTCS(T)
2=
Duplex+
5=TONE(T)/DTCS(R)
3=
RPS
6=DTCS(T)/TSQL(R)
7=TONE(T)/TSQL(R)
L RPS can be set when DD mode is selected, and Duplex
(+, -) can be set when other than DD mode is selected�
6 ~ 10
11 12 13
29 ~ 36 37 ~ 44
X X ...... X X X X ...... X X
16 ~ 18
14 15
X X
45 ~ 52 53 ~ 68
X X ...... X X ......
X X X X
15: Digital squelch setting
15
X 0
Fixed
0=Digital squelch function OFF
1=Digital call sign squelch function ON (DSQL)
2=Digital code squelch function ON (CSQL)
16~18: Repeater tone frequency setting
19~21: Repeater tone frequency setting
L See "Repeater tone/tone squelch frequency setting�"
(p� 23)
22~24: DTCS code setting
L See "DTCS code and polarity setting�" (p� 23)
25: DV Digital code squelch setting
L See "DV Digital code squelch setting�" (p� 23)
26~28: Duplex offset frequency setting
L See "Duplex Offset frequency setting." (p� 17)
29~36: UR (Destination) call sign setting
(8 characters, fixed)
37~44: R1 (Access repeater) call sign setting
(8 characters, fixed�)
45~52: R2 (Gateway/Link repeater) call sign setting
(8 characters, fixed)
L See "DV TX call signs setting�" (p� 23)
53~68: Memory name setting (16 characters, fixed)
L See "Codes for character entries�" (p� 19)
To clear the memory channel contents on 1A 00:
1, 2: Memory channel group (00 00 ~ 00 99)
You cannot specify group "01 00" (Call channel
group)
3, 4: Memory channel (00 00 ~ 00 99)
5: "FF," 6 ~ : None
18
19 ~ 21 22 ~ 24
X X X X X X X X X X
