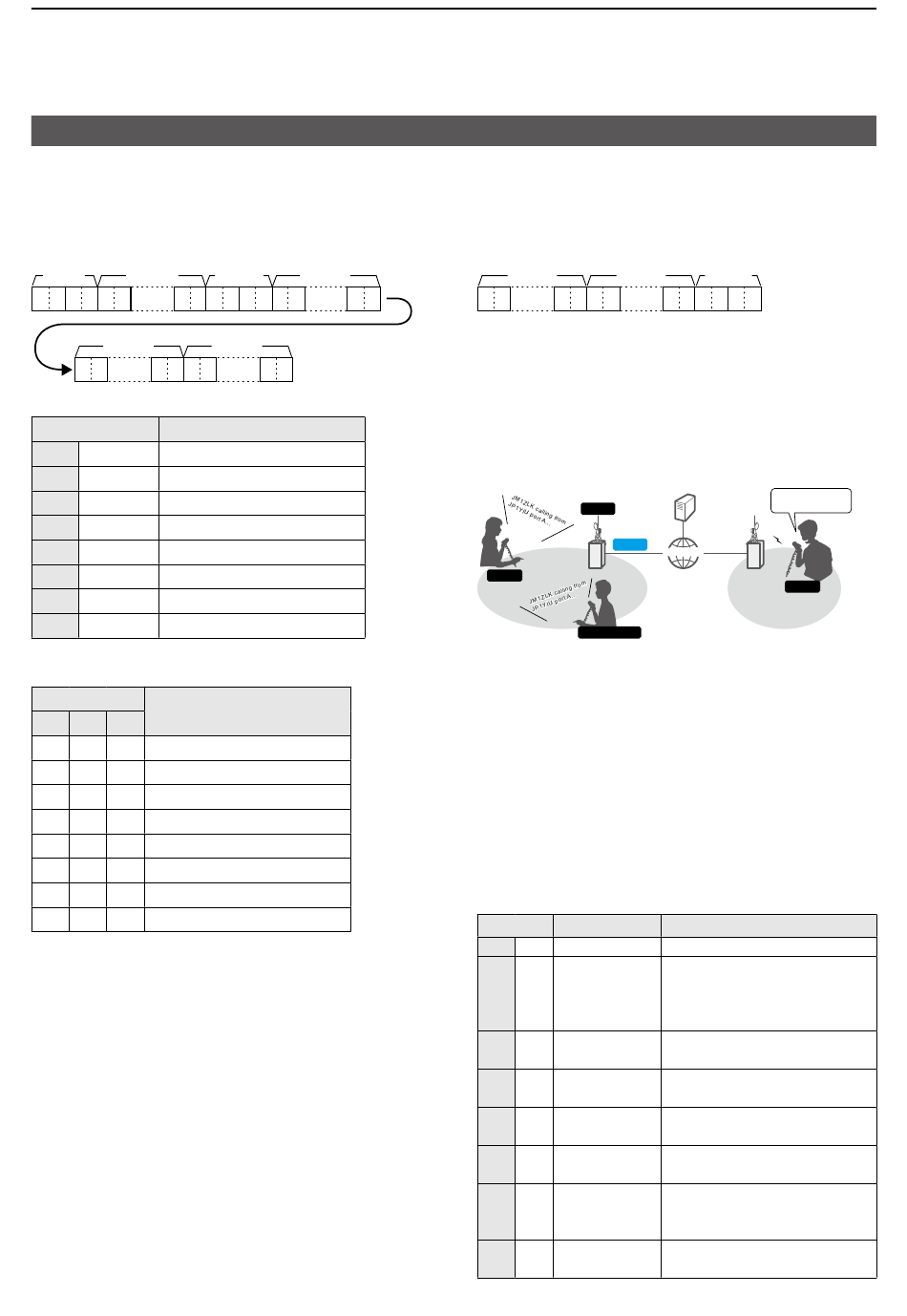

REMOTE CONTROL
Remote control (CI-V) information
D Command formats

• DV RX call sign data

Command: 20 00 01, 00 02
3 ~ 10
1, 2
X X X X X X X X
∙∙∙∙∙∙
23 ~ 30
X X X X X X
∙∙∙∙∙∙
1: Header flag data (First byte)
Data
bit7 (0: Fixed)
bit6
(0: Fixed)
bit5 (0: Fixed)
bit4 0/1 0=Voice, 1=Data
bit3
0/1 0=Direct, 1=Through repeater
bit2 0/1 0=No Break-in, 1=Break-in
bit1 0/1 0=Data, 1=Control
bit0 0/1 0=Normal, 1=EMR
2: Header flag data (Second byte)
Data
bit2 bit1 bit0
1 1 1 Repeater control
1 1 0 Send auto acknowledge
1 0 1 (Not used)
1 0 0 Request to re-transmit
0 1 1 Send acknowledge
0 1 0 Receive no reply
0 0 1 Repeater disabled
0 0 0 NULL
3 ~ 10: Call sign of the caller station
(8 characters, fixed)
11 ~ 14: Note of the caller station
(4 characters, fixed)
15 ~ 22: Call sign of the called station
(8 characters, fixed)
23 ~ 30: Call sign of the access/area repeater (R1)
(8 characters, fixed)
31 ~ 38: Call sign of the link/gateway repeater (R2)
(8 characters, fixed)
See "Codes for character entries�" (p� 19)
L FF: When no call sign is received since the transceiver
power was turned ON�
11 ~ 14 15 ~ 22
X X X X X X X X
∙∙∙∙∙∙
31 ~ 38
X X
∙∙∙∙∙∙
Description
—
—
—
Description

• DV RX message

Command: 20 01 01, 01 02
~
1 20
X X X X X X
∙∙∙∙∙∙
1 ~ 20: Message (20 characters)
21 ~ 28: Call sign of the caller station (8 characters)
29 ~ 32: Note of the caller station (4 characters)
See "Codes for character entries�" (p� 19)
L FF: When no call sign is received since the transceiver
power was turned ON�
Example: When a Gateway call is received
RXRPT2
GW
RXRPT1
CALLED
YOUR STATION
CALLER: Caller's call sign
CALLED: Called station call sign
RXRPT1: Call sign of the repeater that was accessed
by the caller station
L If it was a call through a gateway and the
internet, this item displays the gateway
call sign of the repeater you received the
call from�
RXRPT2: Call sign of the repeater you received the
call from

• DV RX Status setting

Command: 20 02 01, 02 02
Data Function
bit7 0 (Fixed)
Receiving a
bit6 0/1
voice call
Last call
bit5 0/1
finisher
Receiving a
bit4 0/1
signal
Receiving a
bit3 0/1
BK call
Receiving a
bit2 0/1
EMR call
Receiving a
bit1 0/1 signal other
than DV
Packet loss
bit0 0/1
status
24
~ ~
21 28 29 32
X X X X X X
∙∙∙∙∙∙
JM1ZLK calling from JM1ZLK calling from
JP1YIU port A... JP1YIU port A...
INTERNET INTERNET
CALLER
Description
—
While receiving a digital voice
signal, select "1�"
( Regardless of DSQL and
CSQL setting)
When the last call was finished
by you, select "1�"
When the audio tone can be
heard, select "1�"
While receiving a BK call,
select "1�"
While receiving a EMR call,
select "1�"
When "DV" and "FM" are
blinking, select "1�"
While displaying packet loss,
"1" is returned�
