REMOTE CONTROL
Remote control (CI-V) information

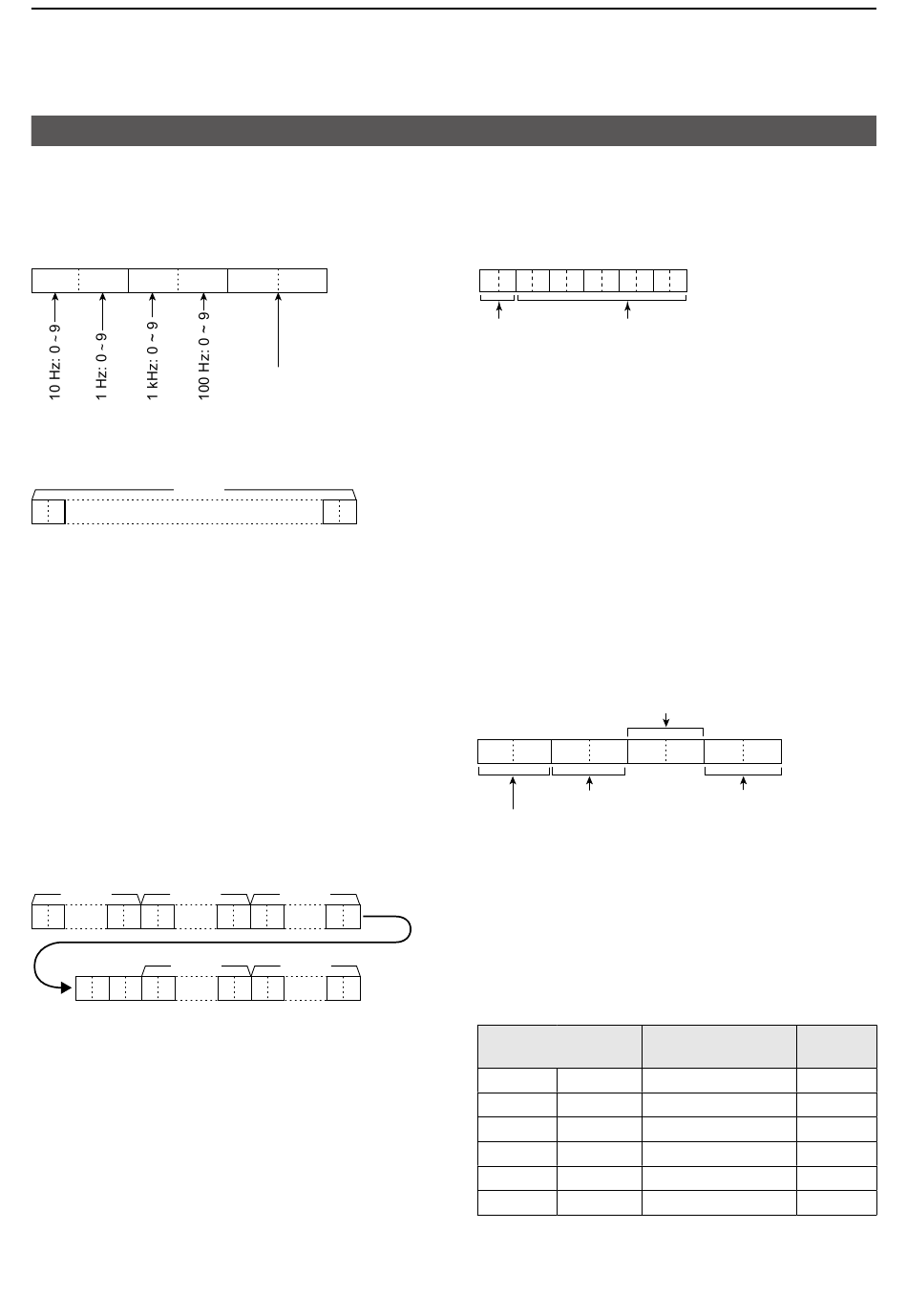

D Command formats

• RIT frequency settings

Command: 21 00
X X X X

• DV TX data

Command: 22 00
1 ~ 30
X X
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙
(Variable length)
1 ~ 30: TX data (Up to 30 Byte)
L "FA" to "FF" are entered after converted to "FF 0A" to "FF
0F" automatically� Up to 60 Byte data can be entered in
this case�

• DV RX data (transceive)

Command: 22 01 01
1 ~ 30: RX data (Up to 30 Byte)
L "FA" to "FF" are entered after converted to "FF 0A" to "FF
0F" automatically� Up to 60 Byte data can be entered in
this case�

• MY position data

Command: 23 00
~ ~
1 5 6
X X ∙∙∙∙∙∙∙ X X X X ∙∙∙∙∙∙∙
~
16 17 18
X X X X X X
∙∙∙∙∙∙∙
1 ~ 5: Latitude (dd°mm�mmm format)
6 ~ 11: Longitude (ddd°mm�mmm format)
12 ~ 15: Altitude (0�1 meter steps)
Course (1 degree steps)
16, 17:
18 ~ 20: Speed (0�1 km/h steps)
21 ~ 27: Date (UTC: yyyymmddHHMMSS)
( y: Year, m: Month, d: Day,
H: Hour, M: Minute, S: Second)
X X
00: + (plus)
01: – (minus)
X X
~
11 12 15
X X X X ∙∙∙∙∙∙∙ X X
~
20 21 27
X X X X X X
∙∙∙∙∙∙∙
• Selected or unselected VFO frequency settings
Command: 25
X X X X X X X X X X X X
00=Selected VFO
01=Unselected VFO
L When using the DR function, the transceiver returns
"FA" (NG) because these cannot be set to 01�
• When VFO A is selected
00=frequency of VFO A changes
01=frequency of VFO B changes
• When VFO B is selected
00=frequency of VFO B changes
01=frequency of VFO A changes
• Selected or unselected VFO's operating mode
and filter settings
Command: 26
Both data and filter settings can be skipped� In that
case, "DATA OFF" and the default filter setting of the
operating mode is automatically selected�
2
X X X X
Operating mode setting
1
00=Selected VFO
01=Unselected VFO
L When using the DR function, the transceiver returns "FA"
(NG) because these cannot be set to 01�
• When VFO A is selected
00 = operating mode of VFO A changes
01 = operating mode of VFO B changes
• When VFO B is selected
00 = operating mode of VFO B changes
01 = operating mode of VFO A changes
1 Operating mode
setting
00:LSB 07:CW-R
01:USB 08:RTTY-R 01: Data mode ON
02:AM 17:DV
03:CW 22:DD* 1
04:RTTY 23:ATV*
05:FM —
* 1 The commands can be set when the 1200 MHz or higher
band is selected�
* 2 When 00 is set, also set 00 to 3�
27
Operating frequency
See "Operating frequency�" (p� 16)
Data mode setting
X X X X
Filter setting
3
2 Data mode
setting
00: Data mode OFF* 2
—
—
—
1
—
3 Filter
setting
01:FIL1
02:FIL2
03:FIL3
—
—
—
