REMOTE CONTROL
Remote control (CI-V) information

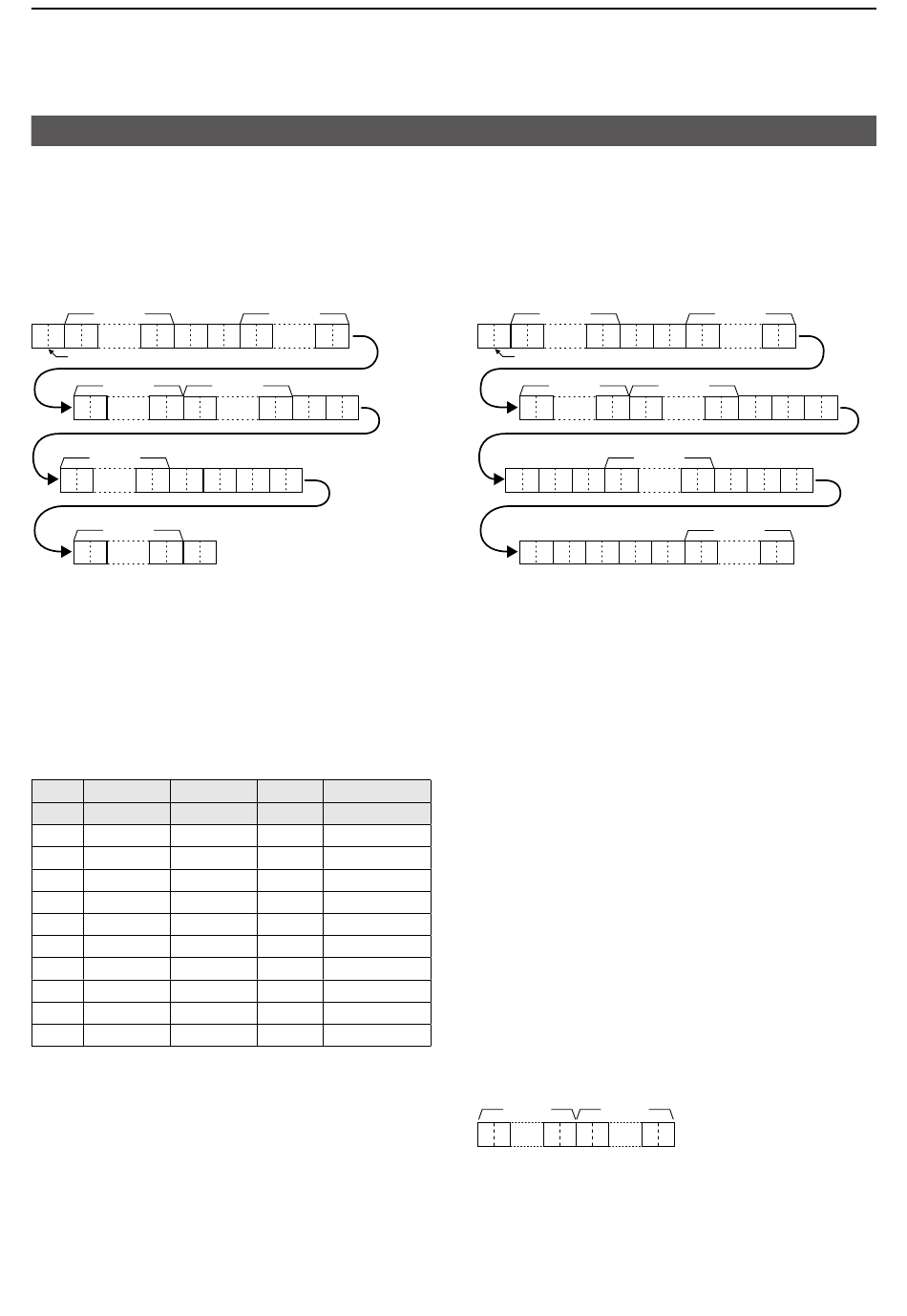

D Command formats
• GPS/D-PRS data (Continued)
Item
Command: 20 03 01 02, 02 02
1 ~ 9
10
0 2 X X X X X X X X
∙∙∙∙∙∙
Data number
17 ~ 22
X X X X X X
∙∙∙∙∙∙
29 ~ 31
32
X X X X X X
∙∙∙∙∙∙
36 ~ 44
45
X X ∙∙∙∙∙∙ X X X X
1 ~ 9: Call sign/SSID
(9 ASCII characters (A ~ Z, 0 ~ 9, /, -, space))
Symbol (2 ASCII characters (00h ~ EFh))
10, 11:
12 ~ 16: Latitude (dd°mm�mmm format)
17 ~ 22: Longitude (ddd°mm�mmm format)
23 ~ 26: Altitude (0�1 meter steps)
Course (1 degree steps)
27, 28:
29 ~ 31: Speed (0�1 km/h steps)
32 ~ 35: See the table below�
32 Power 33 Height
Data
(W) (m/ft)
00 0 3/10
01 1 6/20
02 4 12/40
03 9 24/80
04 16 49/160
05 25 98/320
06 36 195/640
07 49 390/1280
08 64 780/2560
09 81 1561/5120
36 ~ 44: Name
(9 ASCII characters (00h ~ EFh))
Type (01= Live, 00= Killed)
45:
L The item, that is not contained the received data, is filled
with "FF�"
L FF: No signal has been received since the power was
turned ON�
12 ~ 16
11
X X X X
∙∙∙∙∙∙
23 ~ 26
27
28
X X X X X X
∙∙∙∙∙∙
33 34 35
X X X X X X
34 Gain 35 Directivity
(dB) (deg)
0 Omni-direction
1 45° NE
2 90° E
3 135° SE
4 180° S
5 225° SW
6 270° W
7 315° NW
8 360° N
9 —
Weather
Command: 20 03
1 ~ 9
0 3 X X X X
∙∙∙∙∙∙
Data number
17 ~ 22
X X X X
∙∙∙∙∙∙
33 34 35
X X X X X X X X
42 43 44
X X X X X X
1 ~ 9: Call sign/SSID
(9 ASCII characters (A ~ Z, 0 ~ 9, /, -, space))
Symbol (2 ASCII characters (00h ~ EFh))
10, 11:
12 ~ 16: Latitude (dd°mm�mmm format)
17 ~ 22: Longitude (ddd°mm�mmm format)
23 ~ 29: Date (UTC: yyyymmddHHMMSS)
( y: Year, m: Month, d: Day,
H: Hour, M: Minute, S: Second)
Wind direction (1 degree steps)
30, 31:
Wind speed (0�1 m/s steps)
32, 33:
Gust speed (0�1 m/s steps)
34, 35:
36 ~ 37: Temperature (0�1°C steps)
Temperature (00= + degree, 01= – degree)
38:
Rainfall (0�1 mm steps)
39, 40:
Rainfall (24 hours) (0�1 mm steps)
41, 42:
Rainfall (Midnight) (0�1 mm steps)
43, 44:
Humidity (1% steps)
45, 46:
47 ~ 49: Barometric pressure (0�1 hPa steps)
L The item, that is not contained the received data, is filled
with "FF�"
L FF: No signal has been received since the power was
turned ON�

• GPS/D-PRS message

Command: 20 04 01, 04 02
1 ~ 9 10 ~ 52
• • • • • • X X
X X X X X X
(Variable length)
1 ~ 9: Call sign/SSID
(9 ASCII characters (A ~ Z, 0 ~ 9, /, -, space))
10 ~ 52: Message
(Up to 43 ASCII characters (00h ~ EFh))
L FF: No signal has been received since the power was
turned ON�
26
01 03, 02 03
12 ~ 16
10 11
X X X X X X X X
∙∙∙∙∙∙
23 ~ 29
30
31
X X X X X X X X X X
∙∙∙∙∙∙
36 ~ 38
40 41
39
X X X X X X X X
∙∙∙∙∙∙
47 ~ 49
45 46
X X X X X X X X
∙∙∙∙∙∙
32
