Electric system

Electric system of this truck is double wire system, all circuits do not ground. Working voltage is DC24V.

3.1 Electrical schematic diagram

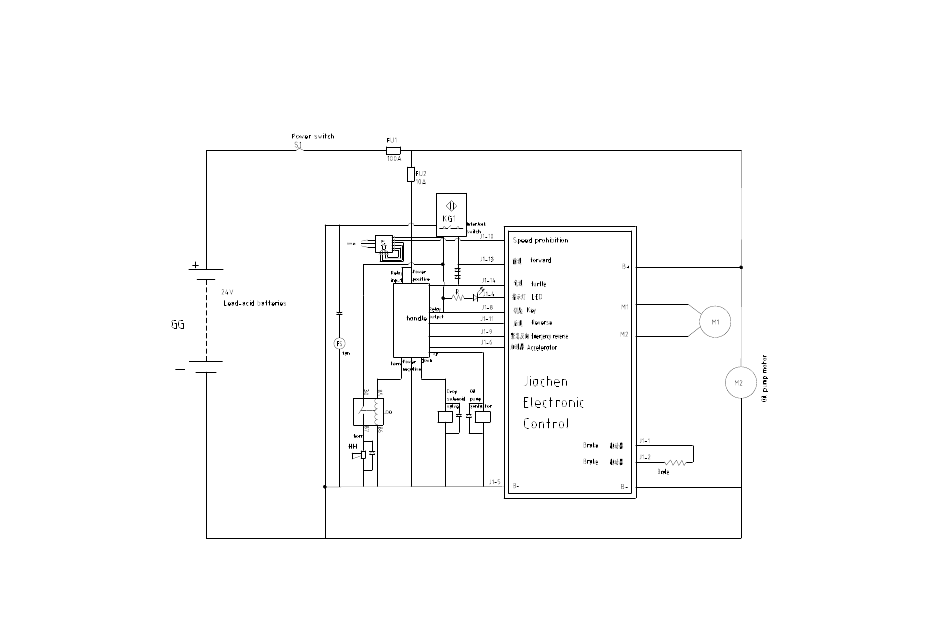

CDD12/15-A2MJ-SZ、CDD12/15-A2MJ-SZDElectrical schematic diagram
