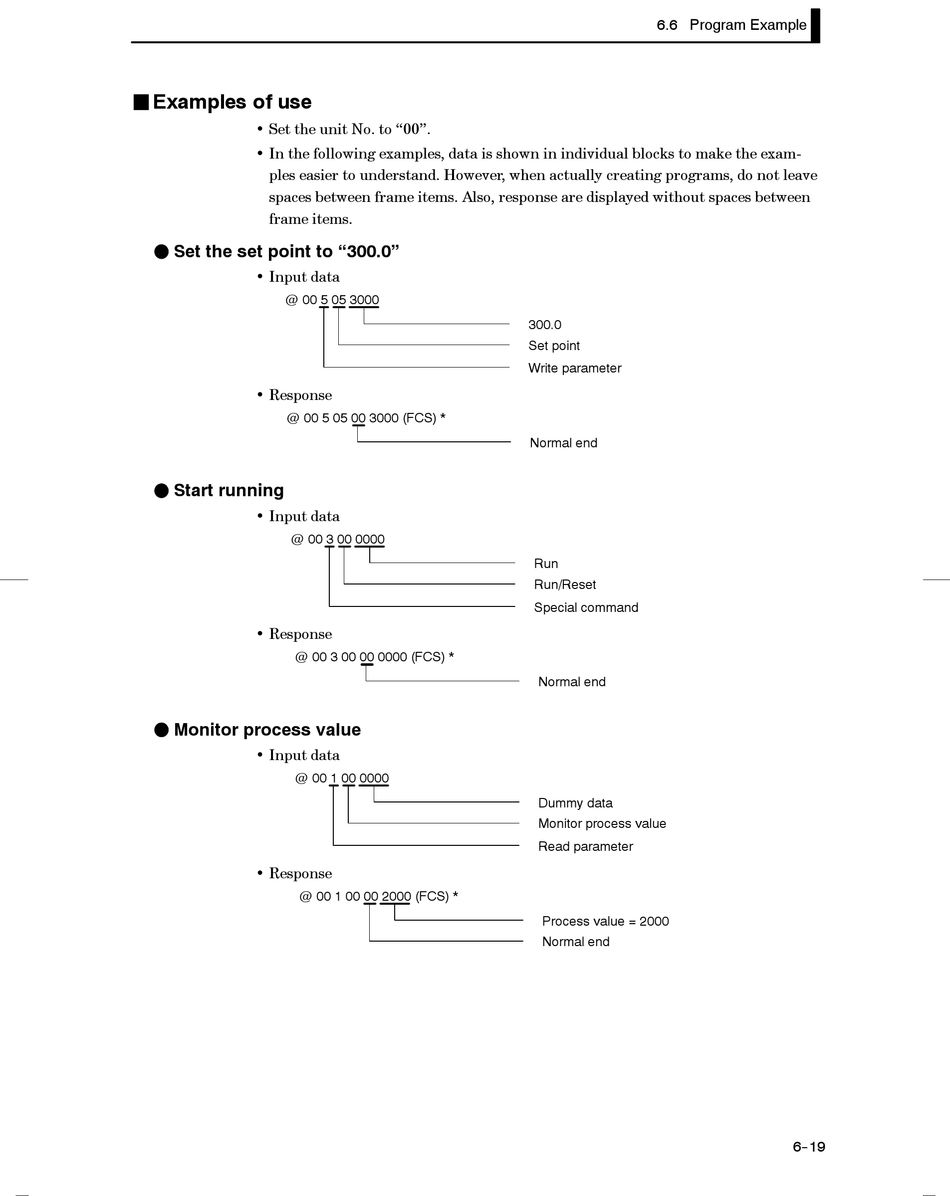

J Examples of use
• Set the unit No. to "00".
• In the following examples, data is shown in individual blocks to make the exam-
ples easier to understand. However, when actually creating programs, do not leave
spaces between frame items. Also, response are displayed without spaces between
frame items.
F Set the set point to "300.0"
• Input data
• Response
F Start running
• Input data
• Response
F Monitor process value
• Input data
• Response
@ 00 5 05 3000
@ 00 5 05 00 3000 (FCS) *
@ 00 3 00 0000
@ 00 3 00 00 0000 (FCS) *
@ 00 1 00 0000
@ 00 1 00 00 2000 (FCS) *
6.6 Program Example
300.0
Set point
Write parameter
Normal end
Run
Run/Reset
Special command
Normal end
Dummy data
Monitor process value
Read parameter
Process value = 2000
Normal end
6--19
