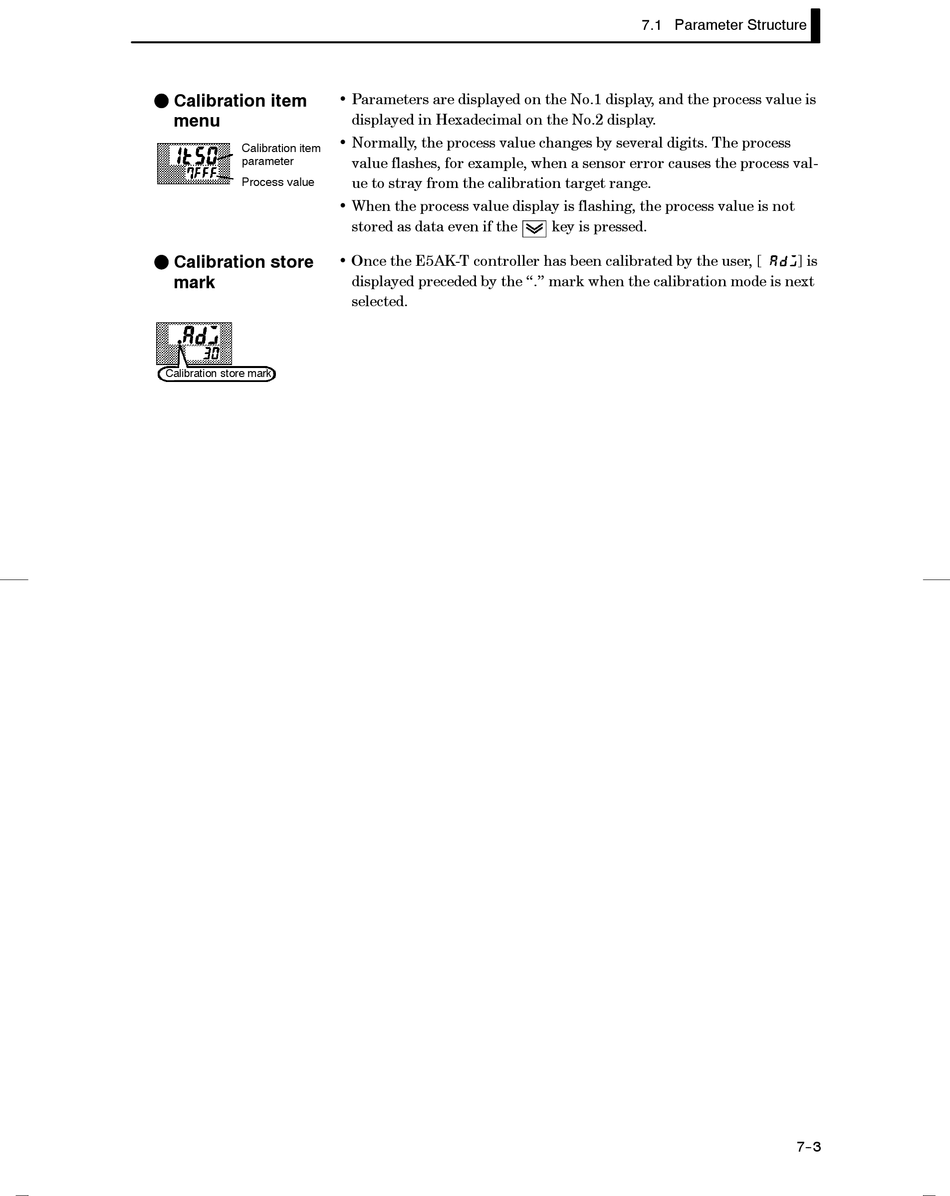

Omron E5AK PROGRAMMABLE TYPE User Manual page 165

F Calibration item
menu
Calibration item
parameter
Process value
F Calibration store
mark
Calibration store mark
• Parameters are displayed on the No.1 display, and the process value is
displayed in Hexadecimal on the No.2 display.
• Normally, the process value changes by several digits. The process
value flashes, for example, when a sensor error causes the process val-
ue to stray from the calibration target range.
• When the process value display is flashing, the process value is not
stored as data even if the
• Once the E5AK-T controller has been calibrated by the user, [
displayed preceded by the "." mark when the calibration mode is next
selected.
7.1 Parameter Structure
key is pressed.
] is
7--3
