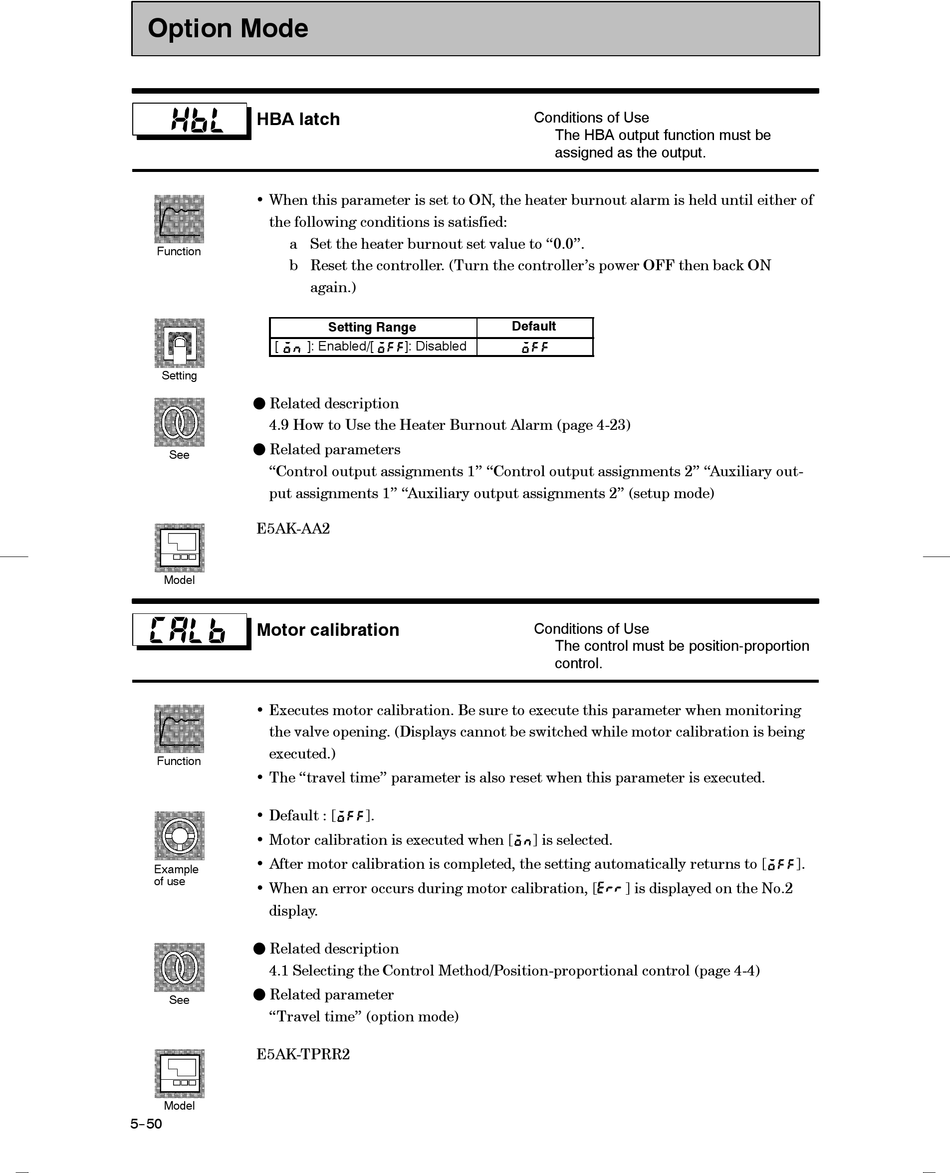

Omron E5AK PROGRAMMABLE TYPE User Manual page 140

CHAPTER 5 PARAMETERS
Option Mode
HBA latch
• When this parameter is set to ON, the heater burnout alarm is held until either of
the following conditions is satisfied:
Function
[
Setting
F Related description
4.9 How to Use the Heater Burnout Alarm (page 4-23)
F Related parameters
See
"Control output assignments 1" "Control output assignments 2" "Auxiliary out-
put assignments 1" "Auxiliary output assignments 2" (setup mode)
E5AK-AA2
Model
Motor calibration
• Executes motor calibration. Be sure to execute this parameter when monitoring
the valve opening. (Displays cannot be switched while motor calibration is being
executed.)
Function
• The "travel time" parameter is also reset when this parameter is executed.
• Default : [
• Motor calibration is executed when [
• After motor calibration is completed, the setting automatically returns to [
Example
of use
• When an error occurs during motor calibration, [
display.
F Related description
4.1 Selecting the Control Method/Position-proportional control (page 4-4)
F Related parameter
See
"Travel time" (option mode)
E5AK-TPRR2
Model
5--50
a Set the heater burnout set value to "0.0".
b Reset the controller. (Turn the controller's power OFF then back ON
again.)
Setting Range
]: Enabled/[ ]: Disabled
].
Conditions of Use
The HBA output function must be
assigned as the output.
Default
Conditions of Use
The control must be position-proportion
control.
] is selected.
] is displayed on the No.2
].
