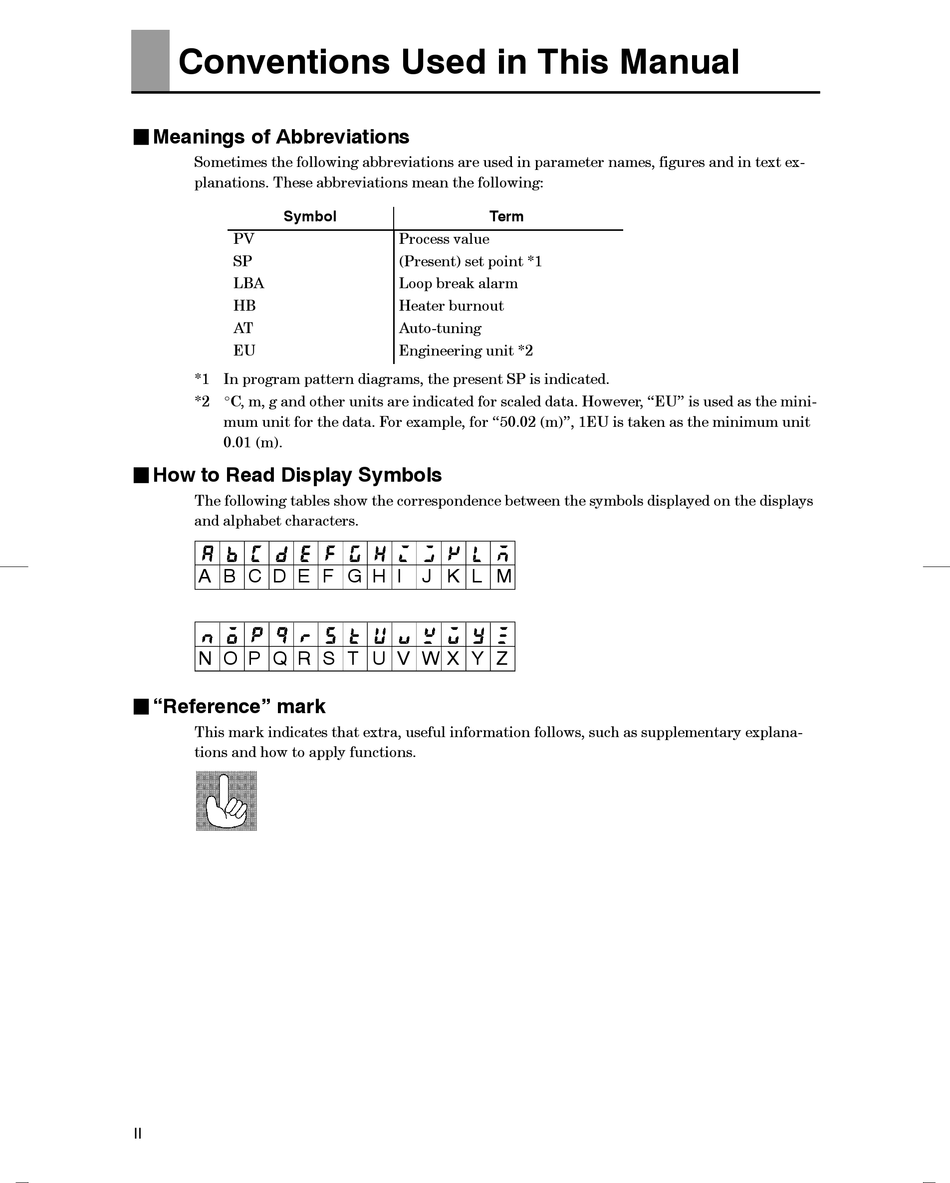

Conventions Used in This Manual

J Meanings of Abbreviations
Sometimes the following abbreviations are used in parameter names, figures and in text ex-
planations. These abbreviations mean the following:
PV
SP
LBA
HB
AT
EU
*1 In program pattern diagrams, the present SP is indicated.
*2 _C, m, g and other units are indicated for scaled data. However, "EU" is used as the mini-
mum unit for the data. For example, for "50.02 (m)", 1EU is taken as the minimum unit
0.01 (m).
J How to Read Display Symbols
The following tables show the correspondence between the symbols displayed on the displays
and alphabet characters.
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
J "Reference" mark
This mark indicates that extra, useful information follows, such as supplementary explana-
tions and how to apply functions.
II
Symbol
Process value
(Present) set point *1
Loop break alarm
Heater burnout
Auto-tuning
Engineering unit *2
Term
