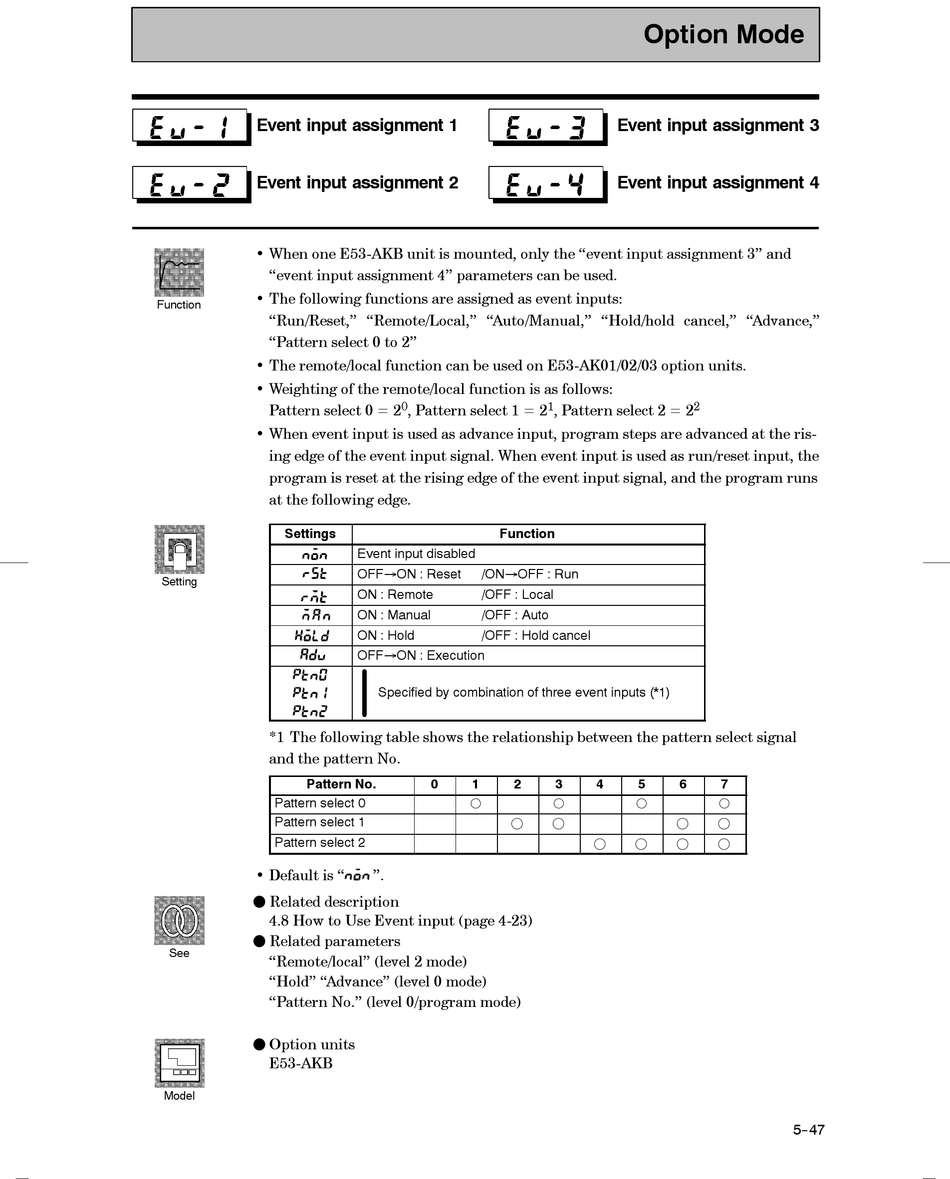

Omron E5AK PROGRAMMABLE TYPE User Manual page 137

Event input assignment 1
Event input assignment 2
• When one E53-AKB unit is mounted, only the "event input assignment 3" and
"event input assignment 4" parameters can be used.
• The following functions are assigned as event inputs:
Function
"Run/Reset," "Remote/Local," "Auto/Manual," "Hold/hold cancel," "Advance,"
"Pattern select 0 to 2"
• The remote/local function can be used on E53-AK01/02/03 option units.
• Weighting of the remote/local function is as follows:
Pattern select 0 = 2
• When event input is used as advance input, program steps are advanced at the ris-
ing edge of the event input signal. When event input is used as run/reset input, the
program is reset at the rising edge of the event input signal, and the program runs
at the following edge.
Settings
Setting
*1 The following table shows the relationship between the pattern select signal
and the pattern No.
Pattern select 0
Pattern select 1
Pattern select 2
• Default is "
F Related description
4.8 How to Use Event input (page 4-23)
F Related parameters
See
"Remote/local" (level 2 mode)
"Hold" "Advance" (level 0 mode)
"Pattern No." (level 0/program mode)
F Option units
E53-AKB
Model
0
, Pattern select 1 = 2
Event input disabled
OFF→ON : Reset
ON : Remote
ON : Manual
ON : Hold
OFF→ON : Execution
Specified by combination of three event inputs (*1) p y
Pattern No. 0
".
1
, Pattern select 2 = 2
Function
/ON→OFF : Run
/OFF : Local
/OFF : Auto
/OFF : Hold cancel
1 2 3 4
○ ○
○ ○
○
Option Mode
Event input assignment 3
Event input assignment 4
2
p ( )
5 6 7
○ ○
○ ○
○ ○ ○
5--47
