F Setup examples
Alarm 2 (upper limit)
(alarm value=10°C)
This description assumes that the controller is operated under the fol-
lowing conditions.
• A K thermocouple is used as the input.
• Control output (heat), alarm 1 and alarm 2 functions are assigned to
"control output 1," "control output 2" and auxiliary output 1, respec-
tively. Of these, only control output 1 and auxiliary output 1 are used.
• The relay output unit is mounted at control output 1.
• The upper-limit alarm is set as alarm 2. The alarm is output when the
temperature exceeds 10_C with respect to the PV .
• The program is made up of one pattern comprising four steps.

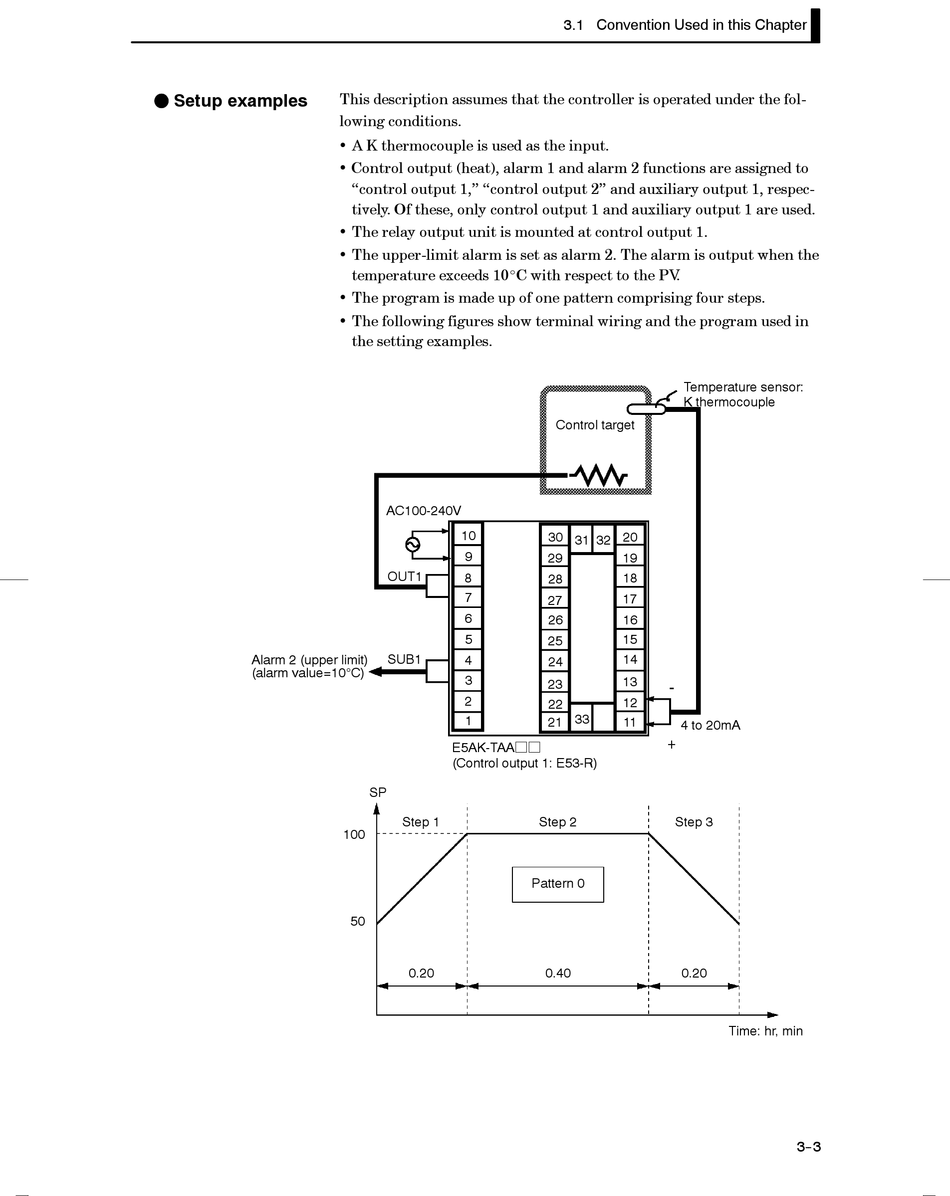

• The following figures show terminal wiring and the program used in
the setting examples.
AC100-240V
10
9
OUT1
8
7
6
5
SUB1
4
3
2
1
E5AK-TAA
(Control output 1: E53-R)
SP
Step 1
100
50
0.20
3.1 Convention Used in this Chapter
Control target
30 20
31 32
29 19
18
28
17
27
26 16
15
25
14
24
13
23
12
22
33
21 11
jj
Step 2
Pattern 0
0.40
Temperature sensor:
K thermocouple
-
4 to 20mA
+
Step 3
0.20
Time: hr, min
3--3
