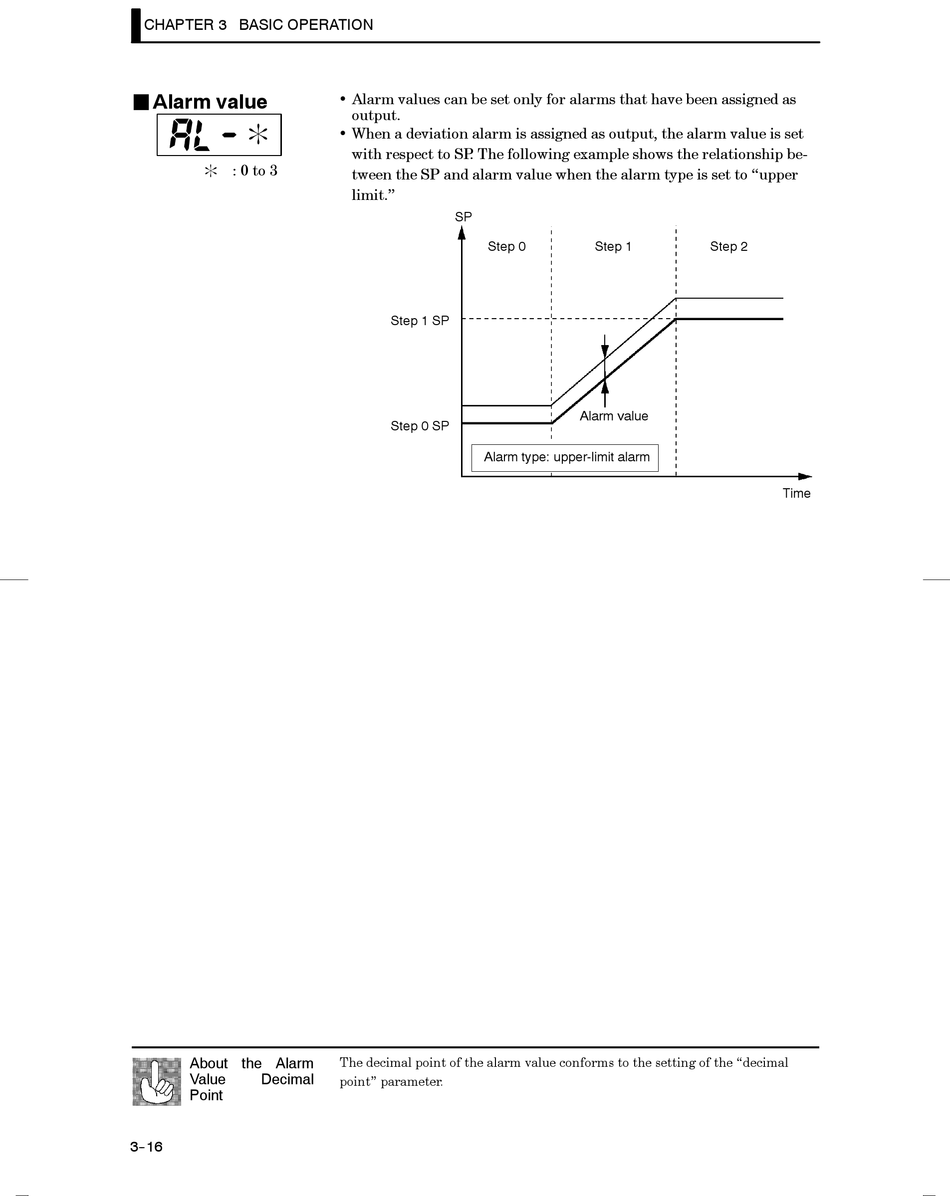

CHAPTER 3 BASIC OPERATION
J Alarm value
:
: : 0 to 3
About the Alarm
Value Decimal
Point
3--16
• Alarm values can be set only for alarms that have been assigned as
output.
• When a deviation alarm is assigned as output, the alarm value is set
with respect to SP . The following example shows the relationship be-
tween the SP and alarm value when the alarm type is set to "upper
limit."
SP
Step 0
Step 1 SP
Step 0 SP
Alarm type: upper-limit alarm
The decimal point of the alarm value conforms to the setting of the "decimal
point" parameter.
Step 1 Step 2
Alarm value
Time
